Scrub System, Disc 69Service Manual – SC2000
Brush Deck Disassembly/Assembly (Continues)
Warning! To easly remove the brush deck, lift the machine body at the front side as shown
(L, Figure 9). Use extreme caution and follow the safety regulations using proper
equipment or safety xed supports suitable for the purpose.
12. Remove the 4 screws (J, Figure 9) from the raising levers (K).
13. Lift the machine body (L) and disconnect the electrical wiring harness (M) from the brush motor, then
remove the brush deck (N) under the machine body.

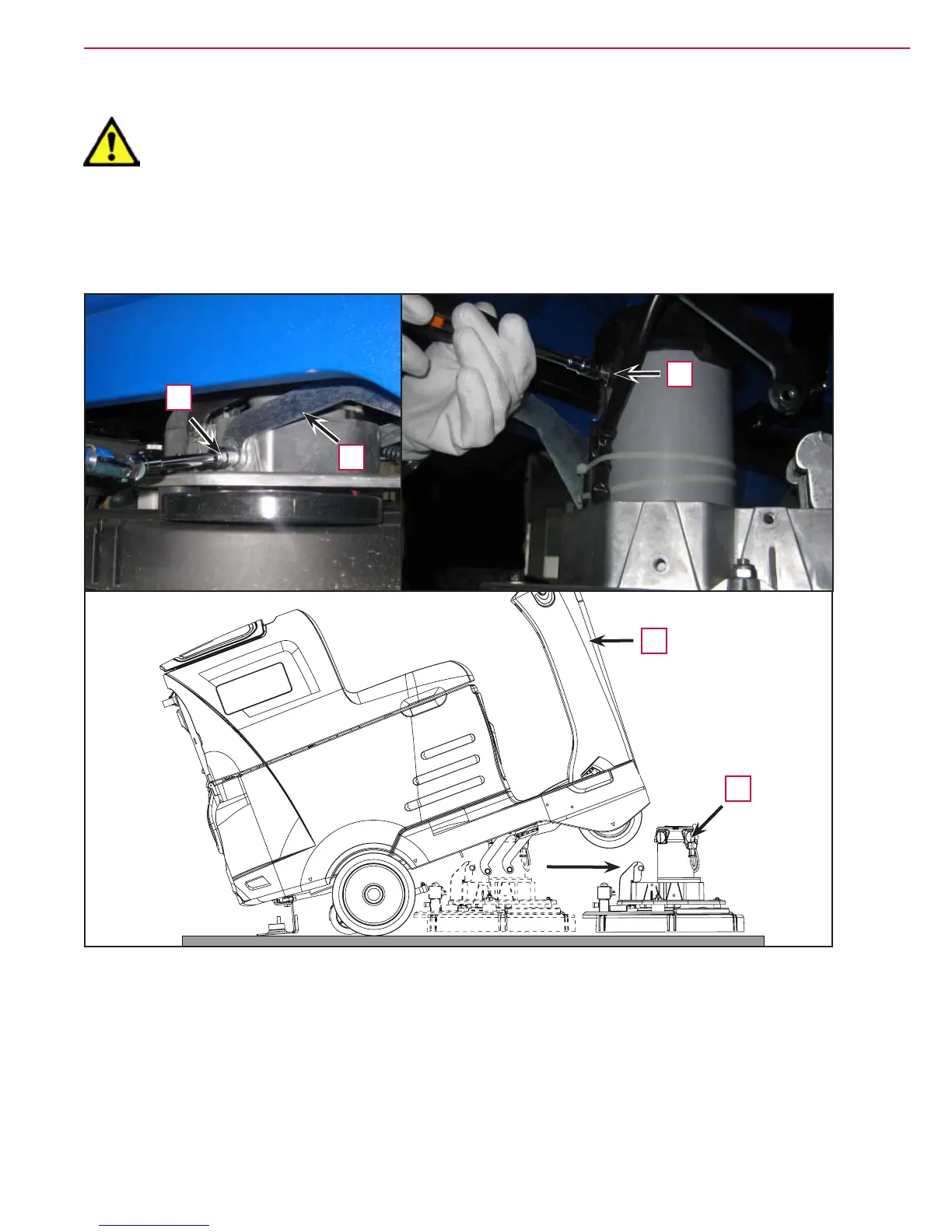

Figure 9
N
M
L
J
K
Assembly
14. Assemble the components in the opposite order they were removed in, ensuring the brush motor power
supply cable polarities are correct.
To Next Page
