Nitty-Gritty Clinox PRO x2 - Connection to the Compressed Air Circuit

30
NITTY GRITTY.IT
make it shine
A
B
C
D
CLINOX PRO • AIR • POWER • SURFACE USER MANUAL
5.3. 
Please note: The CLINOX PRO model does not need to be
connected to an external compressed air circuit.
• There are di󰀨erent standards of compressed air pneumatic
lines depending on your geographical area; check the
compatibility of the quick connectors available.

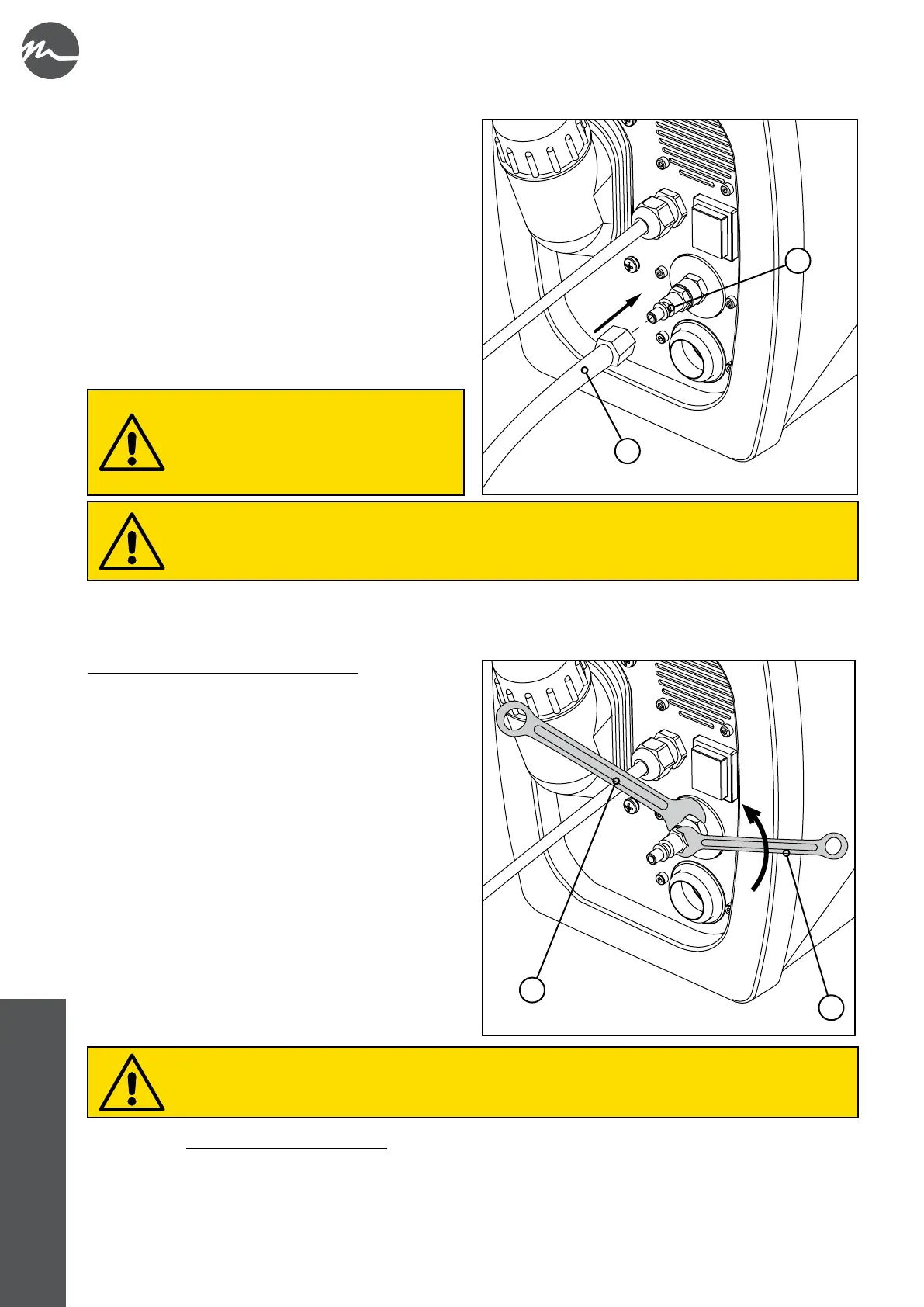

• Take the compressed air terminal (A) and t it onto the
appropriate connector (B) on the back of the unit.
If it is not possible to connect the device to a compressed air circuit, the fume abatement system built into the
appliance shall not come into operation.
The characteristics of the compressed air
circuit must be strictly as follows:
• Operating pressure of 6 bar.
• Flow of dried air.
Replacing the compressed air connector
Given the existence of di󰀨erent standards in various
countries, in certain situations it may be necessary to replace
the compressed air connector.
The procedure does not apply to the Clinox PRO model
because it does not have a compressed air circuit.
• Use a 17 mm wrench (C) to hold the air coupling assembly
in place and prevent rotation during the replacement
procedure.
• Use a 14 mm wrench (D) and loosen the end of the
connector.
• Apply sealant to the thread of the new connector before
installing it.
• Use the 14 mm wrench again (D) to tighten the new
connector; tighten it rmly.
It is very important to use paired wrenches, as the accidental rotation of the compressed air coupling unit could
cause the pneumatic lines inside the device to break.
Please contact NITTY-GRITTY Customer Service (info@nitty-gritty.it) to purchase the correct type of connector or for more
information on the subject.
