8.4. 

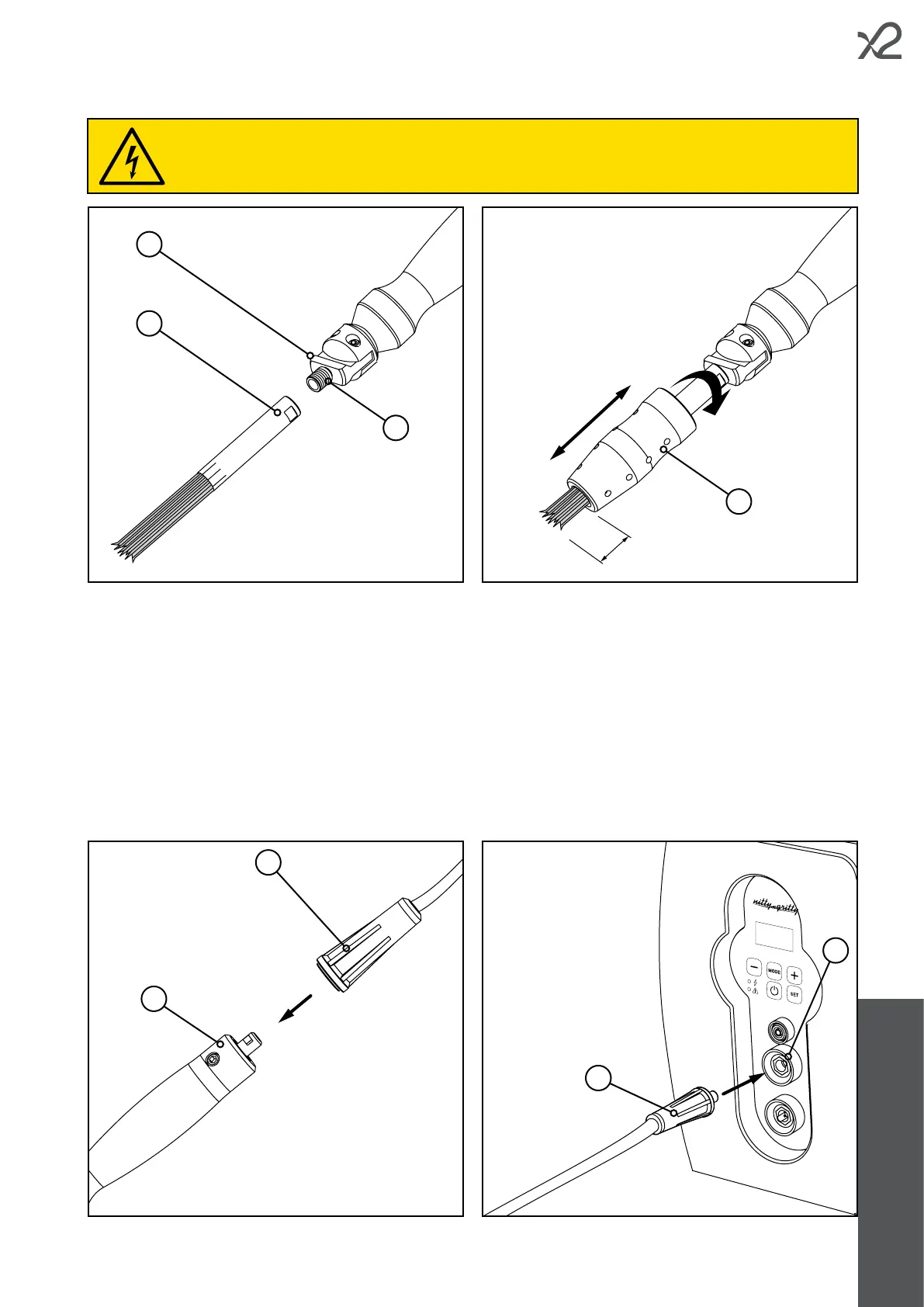

• Install the brush adapter (A) on the D&W torch (see chapter 8.2).
• The adapter has a threaded coupling (B).
• Screw the brush (C) onto the threaded coupling.
• Adjust the brush bushing (D) to ensure that no more than 15 mm of carbon bres are exposed.
When installing the brushes, the D&W torch must not be connected to the device.
8.5. 
• Use the supplied cable to carry out the electrical installation of the D&W torch; connect the female connector (A) to the D&W
torch (B) and insert the male connector (C) into the dedicated bushing on the front panel of the device (D).
