IP390, 105i & 105s Security Platform Installation Guide 109

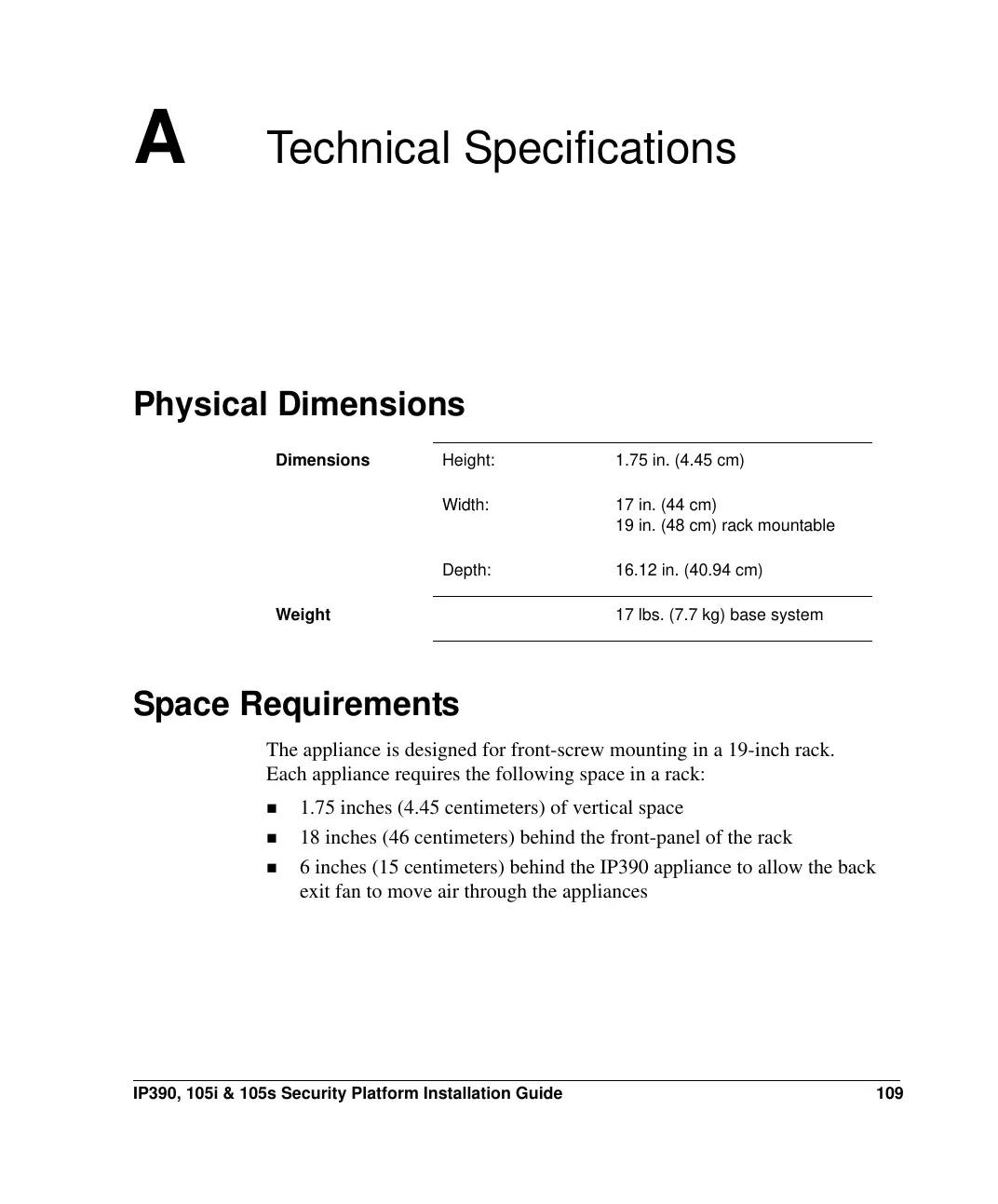

A Technical Specifications
Physical Dimensions
Space Requirements
The appliance is designed for front-screw mounting in a 19-inch rack.
Each appliance requires the following space in a rack:
1.75 inches (4.45 centimeters) of vertical space
18 inches (46 centimeters) behind the front-panel of the rack
6 inches (15 centimeters) behind the IP390 appliance to allow the back
exit fan to move air through the appliances
Dimensions Height: 1.75 in. (4.45 cm)
Width: 17 in. (44 cm)
19 in. (48 cm) rack mountable
Depth: 16.12 in. (40.94 cm)
Weight 17 lbs. (7.7 kg) base system
