1 Overview
20 IP390, 105i & 105s Security Platform Installation Guide

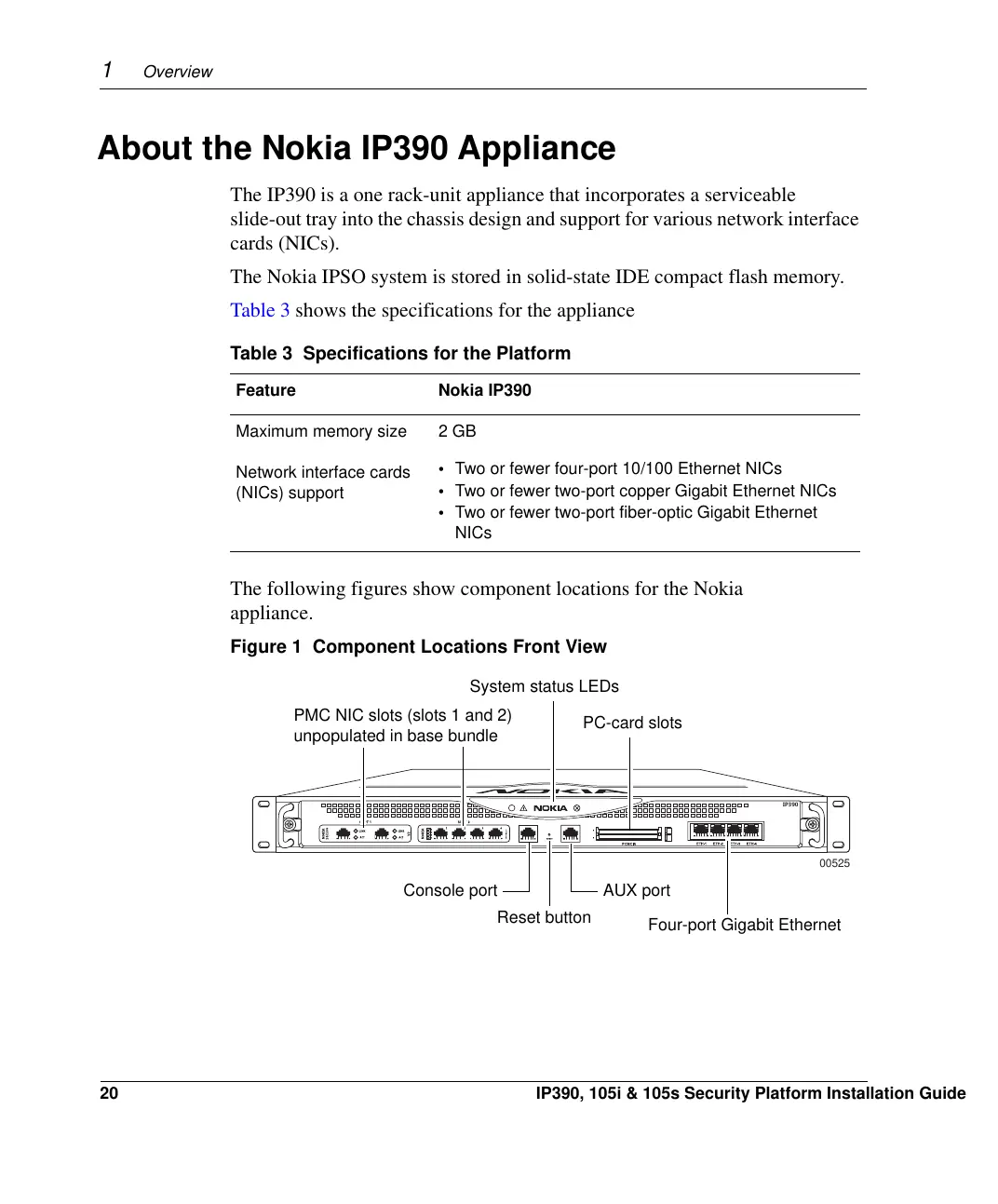

About the Nokia IP390 Appliance
The IP390 is a one rack-unit appliance that incorporates a serviceable
slide-out tray into the chassis design and support for various network interface
cards (NICs).
The Nokia IPSO system is stored in solid-state IDE compact flash memory.
Table 3 shows the specific
ations for the appliance
The following figures show component locations for the Nokia
appliance.
Figure 1 Component Locations Front View
Table 3 Specifications for the
Platform
Feature Nokia IP390
Maximum memory size 2 GB
Network interface cards
(NICs) support
• Two or fewer four-port 10/100 Ethernet NICs
• Two or fewer two-port copper Gigabit Ethernet NICs
• Two or fewer two-port fiber-optic Gigabit Ethernet
NICs
00525
IP390
System status LEDs
AUX port
Console port
Four-port Gigabit Ethernet
PC-card slots
PMC NIC slots (slots 1 and 2)
unpopulated in base bundle
Reset button
