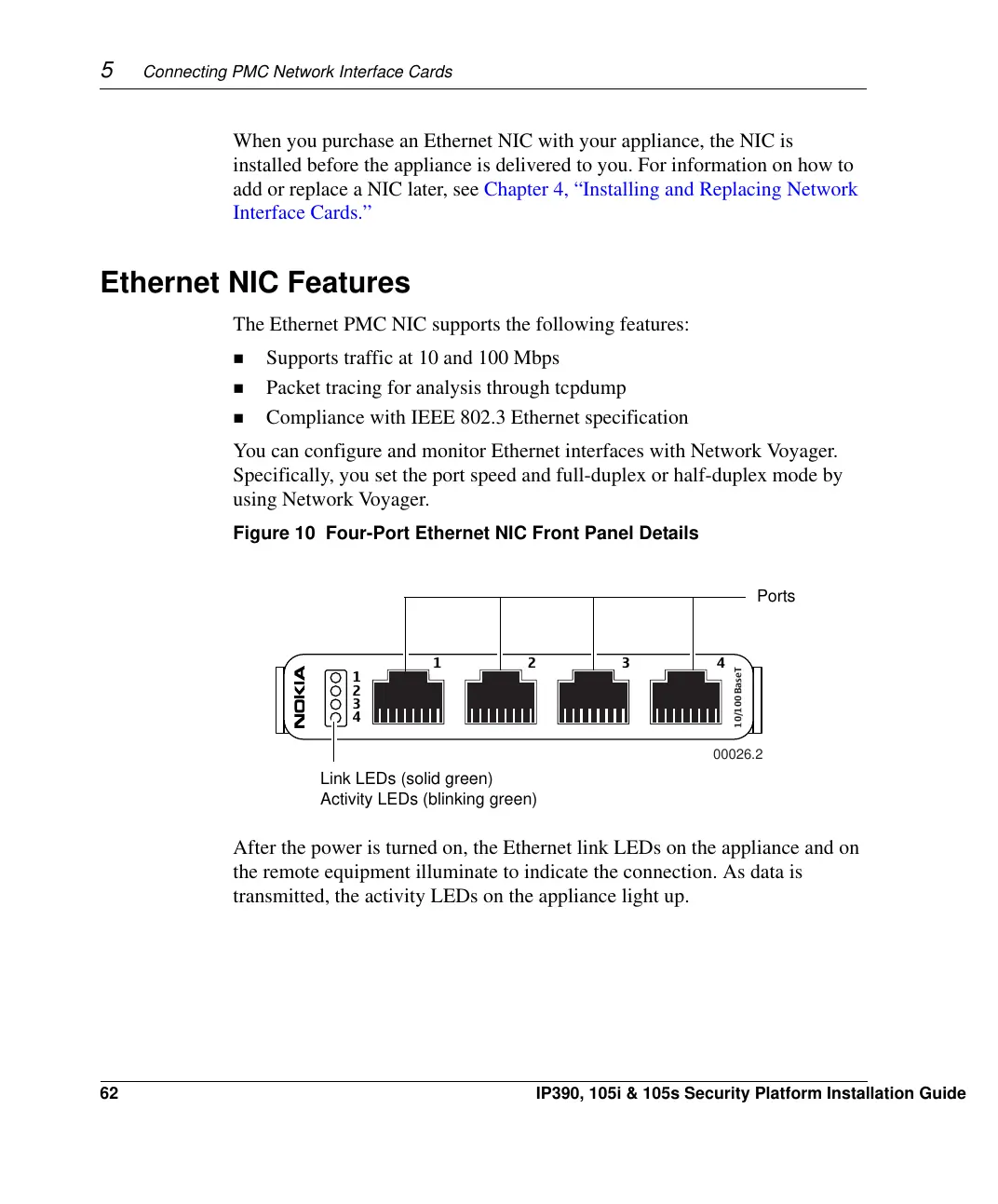

5 Connecting PMC Network Interface Cards
62 IP390, 105i & 105s Security Platform Installation Guide
When you purchase an Ethernet NIC with your appliance, the NIC is
installed before the appliance is delivered to you. For information on how to
add or replace a NIC later, see Chapter 4, “Installing and Replacing Network
Interface Cards.”
Ethernet NIC Features
The Ethernet PMC NIC supports the following features:
Supports traffic at 10 and 100 Mbps
Packet tracing for analysis through tcpdump
Compliance with IEEE 802.3 Ethernet specification
You can configure and monitor Ethernet interfaces with Network Voyager.
Specifically, you set the port speed and full-duplex or half-duplex mode by
using Network Voyager.
Figure 10 Four-Port Ethernet NIC Front Panel Details
After the power is turned on, the Ethernet link LEDs on the appliance and on
the remote equipment illuminate to indicate the connection. As data is
transmitted, the activity LEDs on the appliance light up.
00026.2
321
1
2
3
4
4
10/100 BaseT
Link LEDs (solid green)
Activity LEDs (blinking green)
Ports
