Two-Port Copper Gigabit Ethernet Network Interface Card
IP390, 105i & 105s Security Platform Installation Guide 67

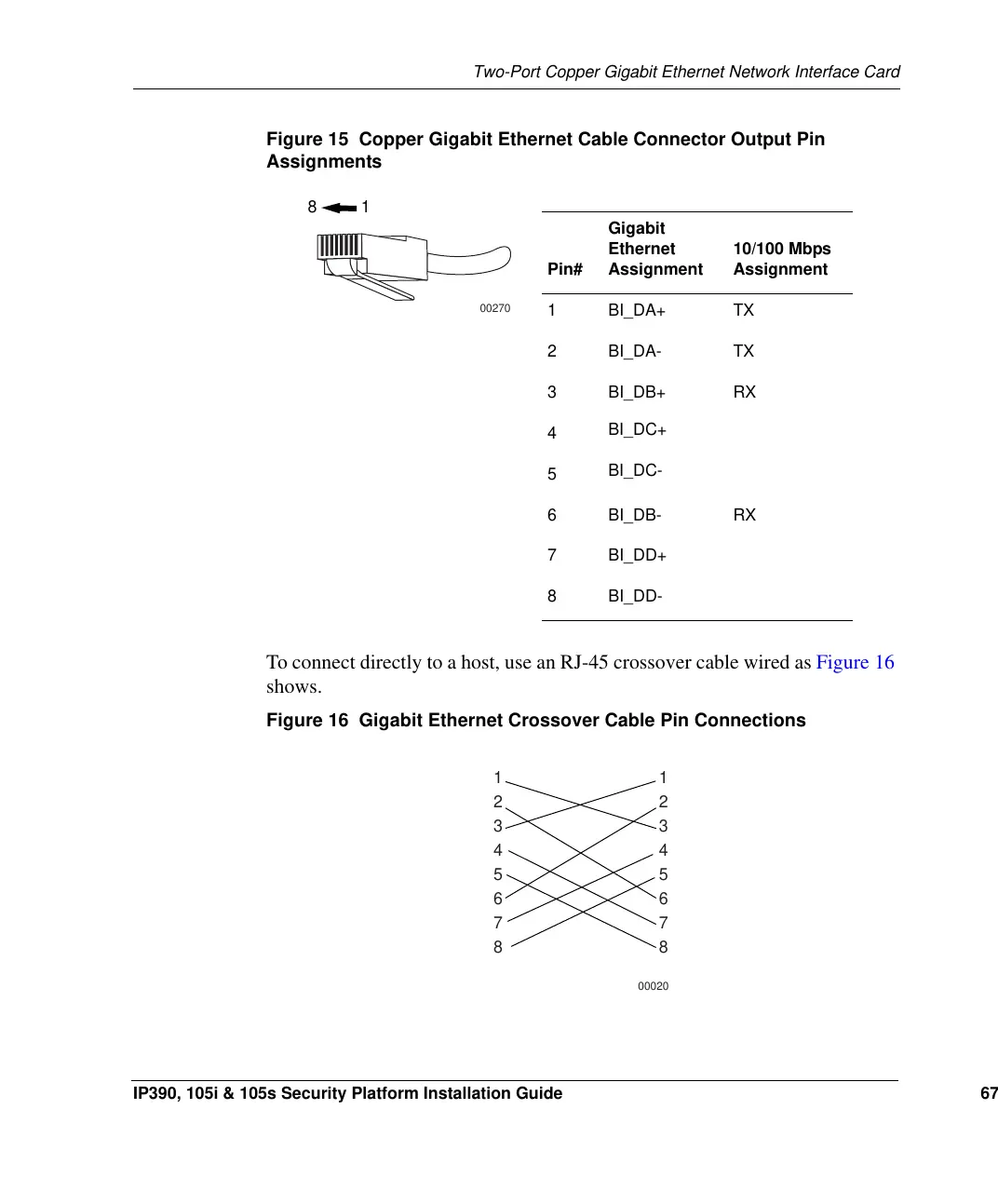

Figure 15 Copper Gigabit Ethernet Cable Connector Output Pin
Assignments
To connect directly to a host, use an RJ-45 crossover cable wired as Figure 16
shows.
Figure 16 Gigabit Ethernet Crossover Cable Pin Connections
00270
Pin#
Gigabit
Ethernet
Assignment
10/100 Mbps
Assignment
1BI_DA+ TX
2BI_DA- TX
3BI_DB+ RX
4
BI_DC+
5
BI_DC-
6BI_DB- RX
7 BI_DD+
8 BI_DD-
81
00020
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
