Two mounting positions are available allowing you to mount the unit either
flush with the rack, or two inches forward of the rack.

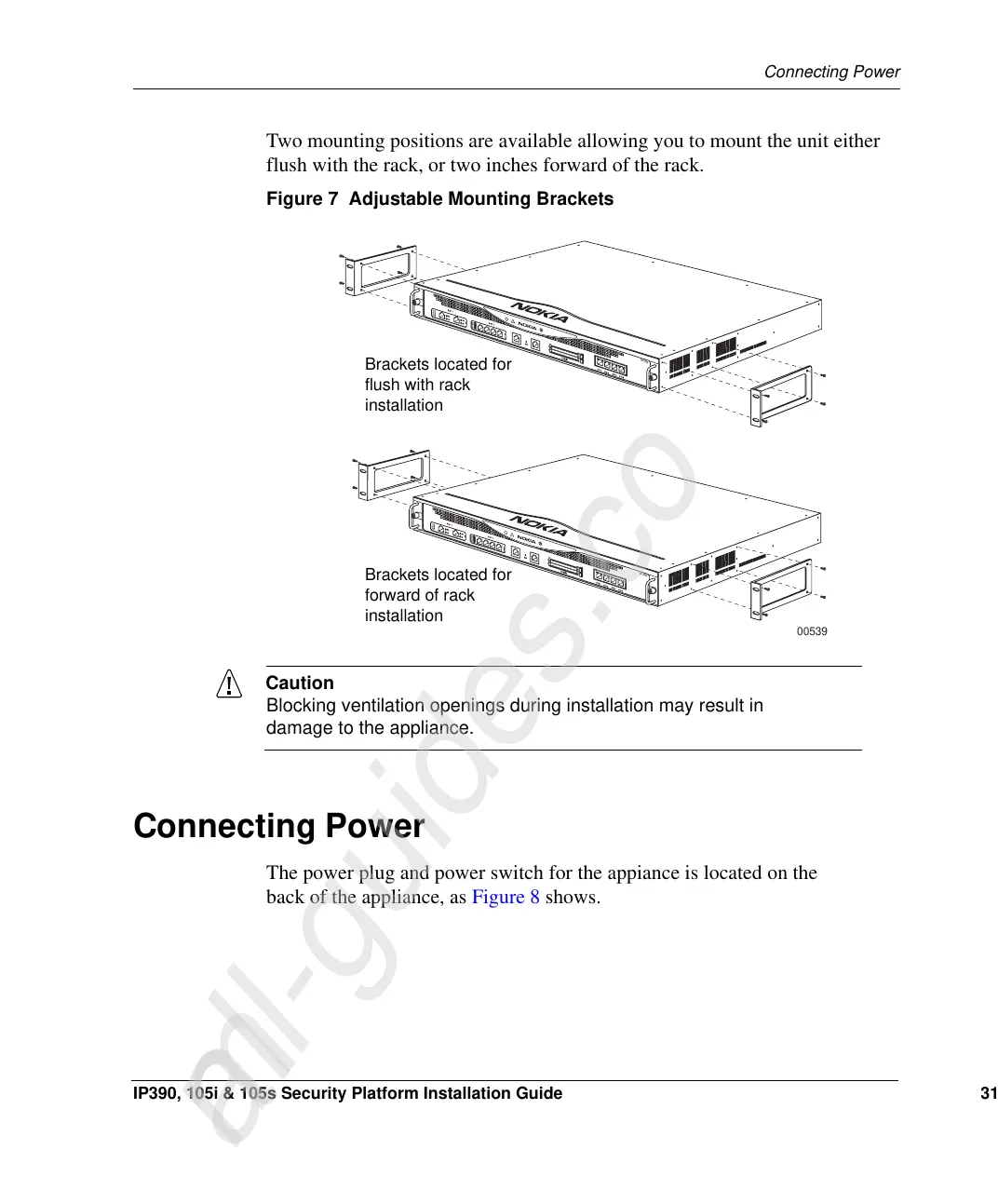

Figure 7 Adjustable Mounting Brackets
Caution
Blocking ventilation openings during installation may result in
damage to the appliance.
Connecting Power
The power plug and power switch for the appiance is located on the
back of the appliance, as Figure 8 shows.
00539
IP390
IP390
Brackets located for
flush with rack
installation
Brackets located for
forward of rack
installation
