Replacing or Upgrading Memory
IP390, 105i & 105s Security Platform Installation Guide 87

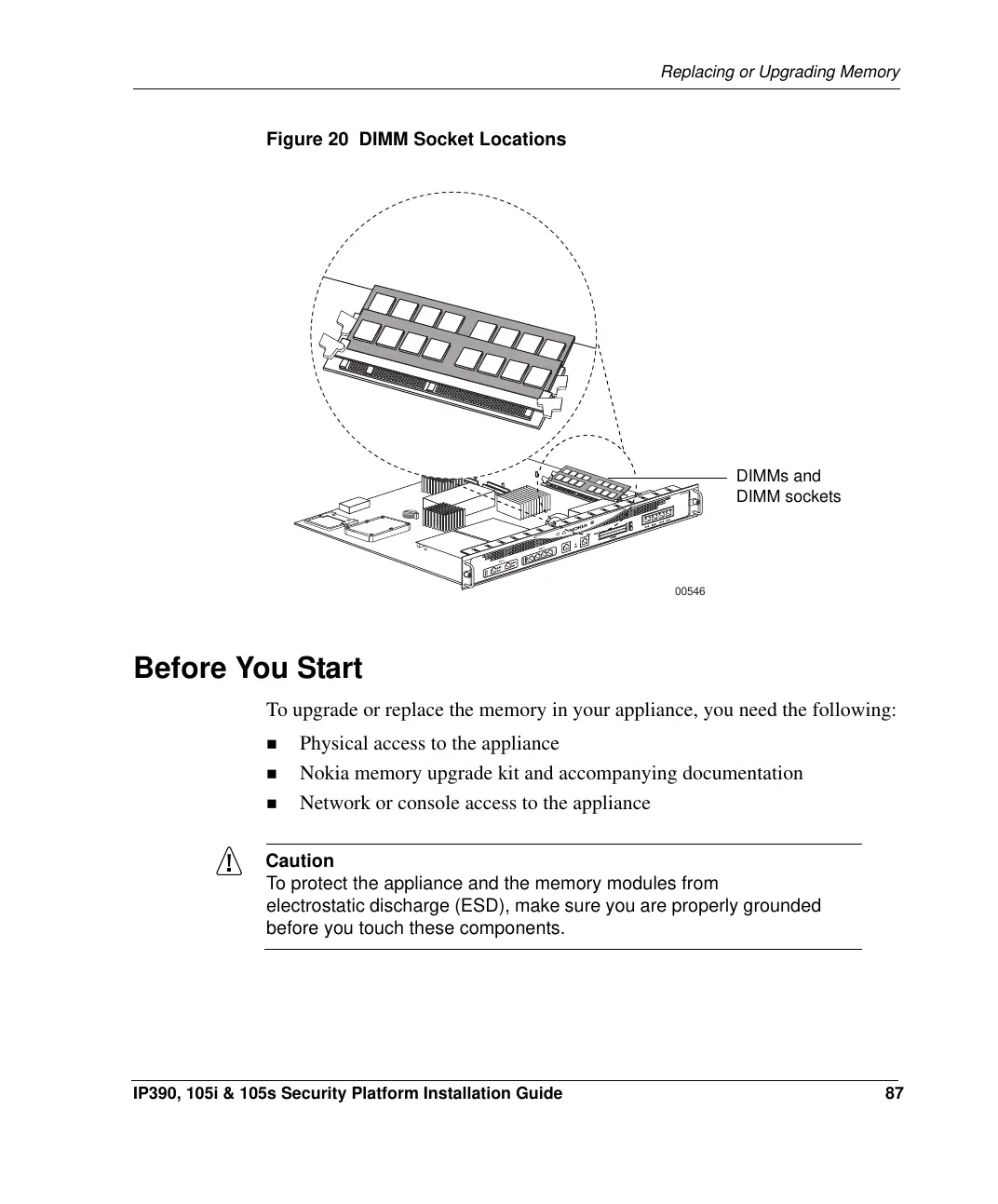

Figure 20 DIMM Socket Locations
Before You Start
To upgrade or replace the memory in your appliance, you need the following:
Physical access to the appliance
Nokia memory upgrade kit and accompanying documentation
Network or console access to the appliance
Caution
To protect the
appliance and the memory modules from
electrostatic discharge (ESD), make sure you are properly grounded
before you touch these components.
00546
IP390
DIMMs and
DIMM sockets
