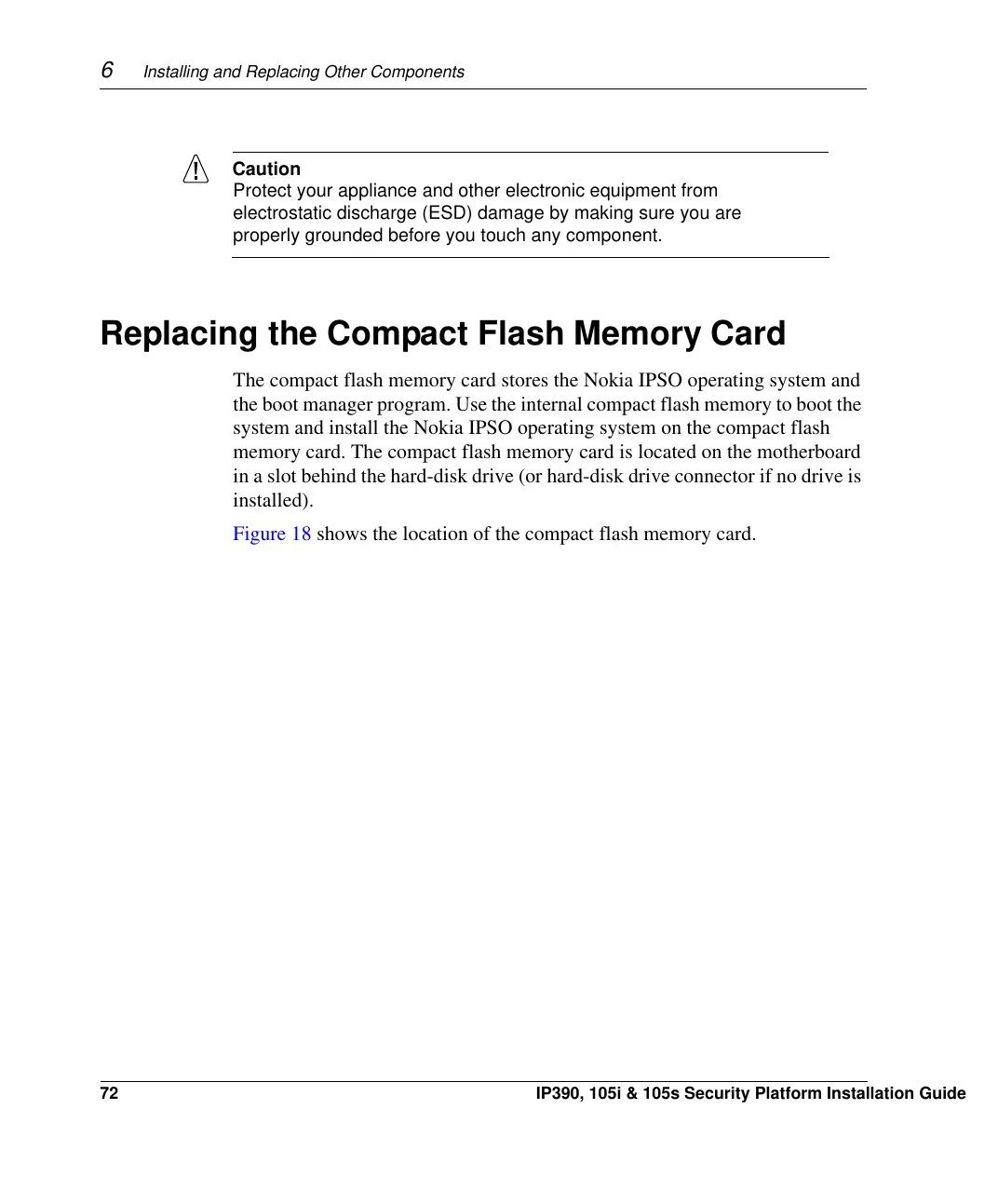

6 Installing and Replacing Other Components
72 IP390, 105i & 105s Security Platform Installation Guide
Caution
Protect your
appliance and other electronic equipment from
electrostatic discharge (ESD) damage by making sure you are
properly grounded before you touch any component.
Replacing the Compact Flash Memory Card
The compact flash memory card stores the Nokia IPSO operating system and
the boot manager program. Use the internal compact flash memory to boot the
system and install the Nokia IPSO operating system on the compact flash
memory card. The compact flash memory card is located on the motherboard
in a slot behind the hard-disk drive (or hard-disk drive connector if no drive is
installed).
Figure 18 shows the location of the compact flash memory card.
