About the Nokia IP390 Appliance
IP390, 105i & 105s Security Platform Installation Guide 21

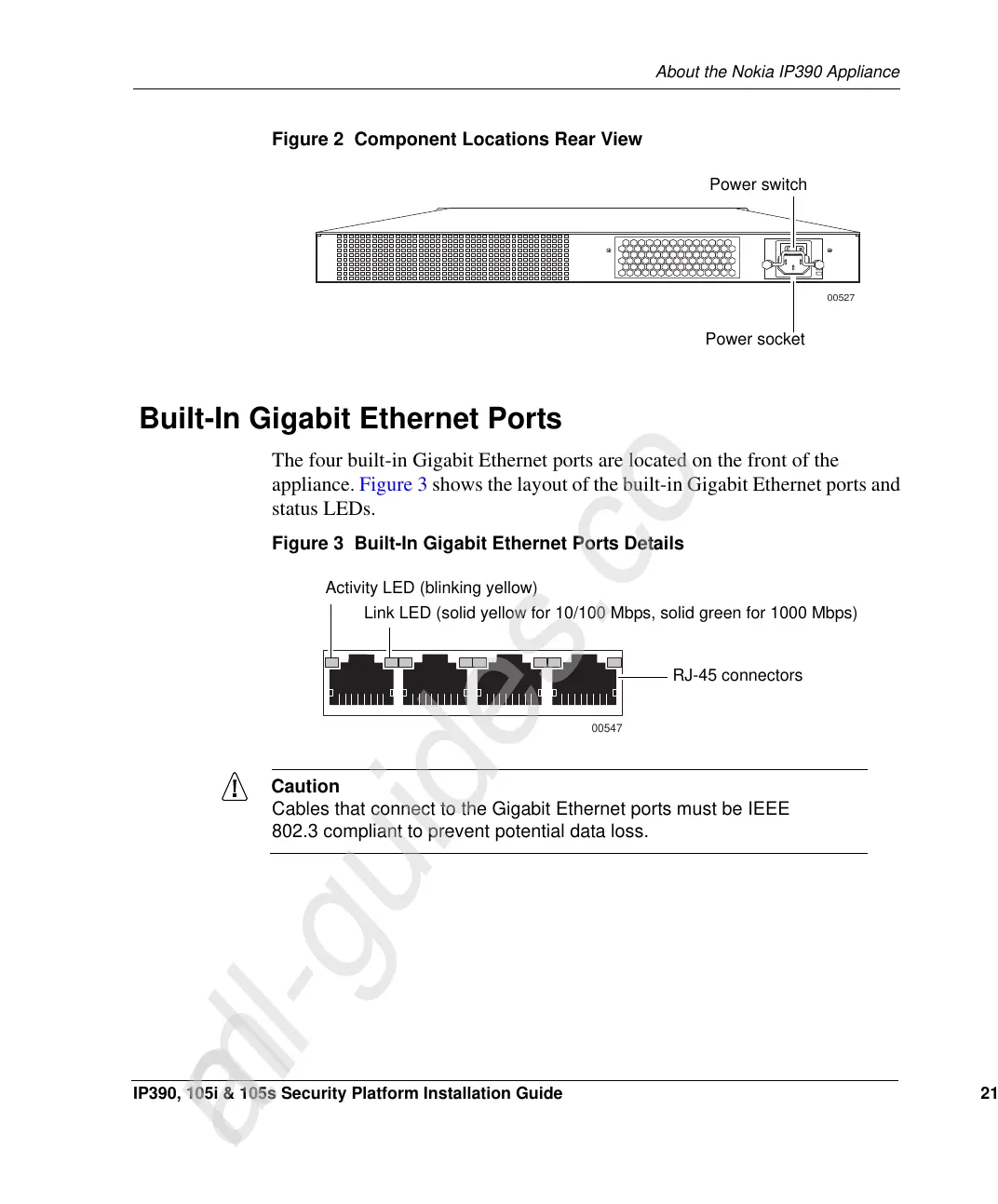

Figure 2 Component Locations Rear View
Built-In Gigabit Ethernet Ports
The four built-in Gigabit Ethernet ports are located on the front of the
appliance. Figure 3 shows the layout of the built-in Gigabit Ethernet ports and
status LEDs.
Figure 3 Built-In Gigabit Ethernet Ports Details
Caution
Cables that connect to the Gigabit Ethernet ports must be IEEE
802.3 compliant to prevent potential data loss.
00527
Power socket
Power switch
00547
Activity LED (blinking yellow)
Link LED (solid yellow for 10/100 Mbps, solid green for 1000 Mbps)
RJ-45 connectors
