Two-Port Fiber-Optic Gigabit Ethernet Network Interface Card
IP390, 105i & 105s Security Platform Installation Guide 69

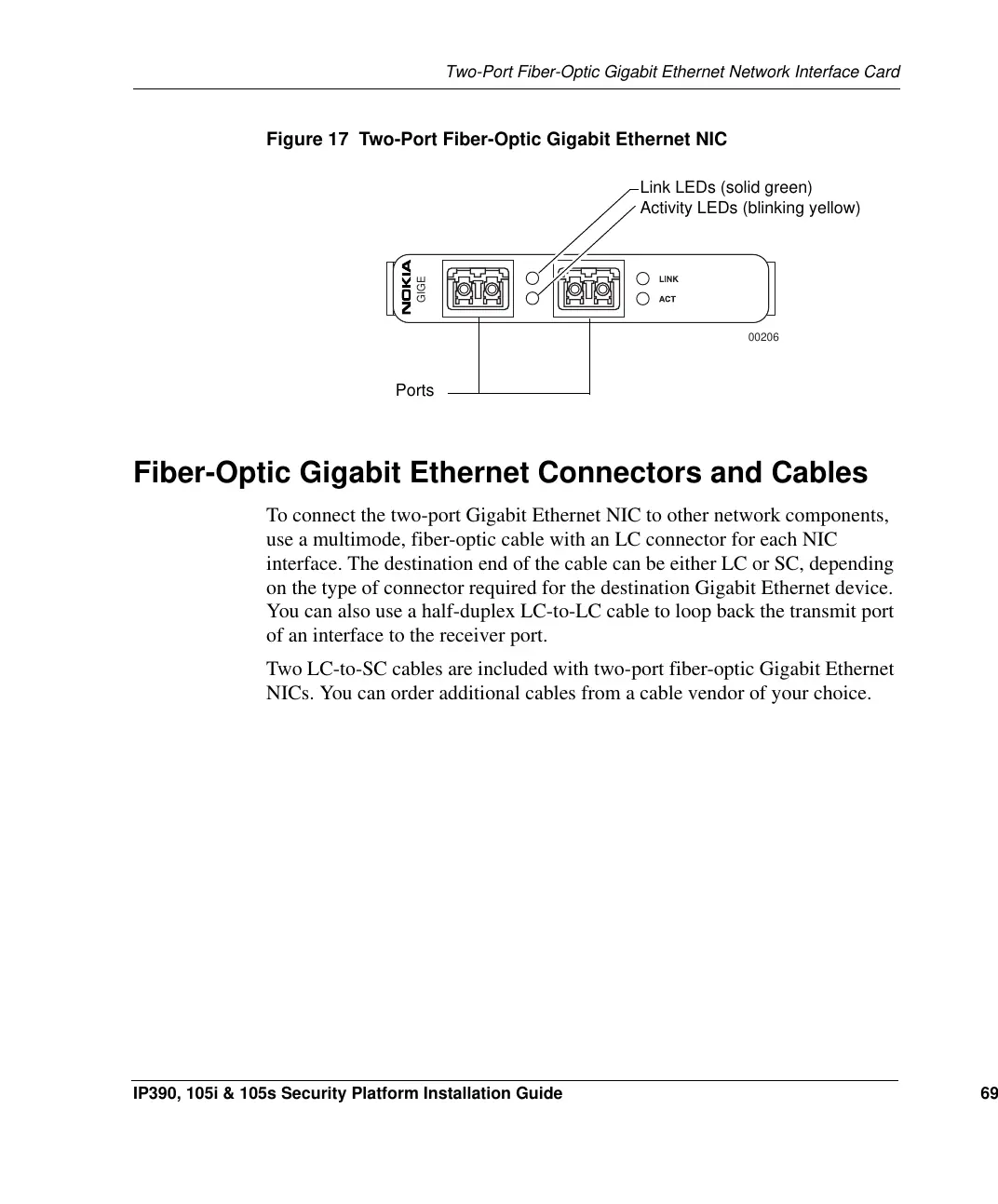

Figure 17 Two-Port Fiber-Optic Gigabit Ethernet NIC
Fiber-Optic Gigabit Ethernet Connectors and Cables
To connect the two-port Gigabit Ethernet NIC to other network components,
use a multimode, fiber-optic cable with an LC connector for each NIC
interface. The destination end of the cable can be either LC or SC, depending
on the type of connector required for the destination Gigabit Ethernet device.
You can also use a half-duplex LC-to-LC cable to loop back the transmit port
of an interface to the receiver port.
Two LC-to-SC cables are included with two-port fiber-optic Gigabit Ethernet
NICs. You can order additional cables from a cable vendor of your choice.
00206
GIGE
Link LEDs (solid green)
Activity LEDs (blinking yellow)
Ports
