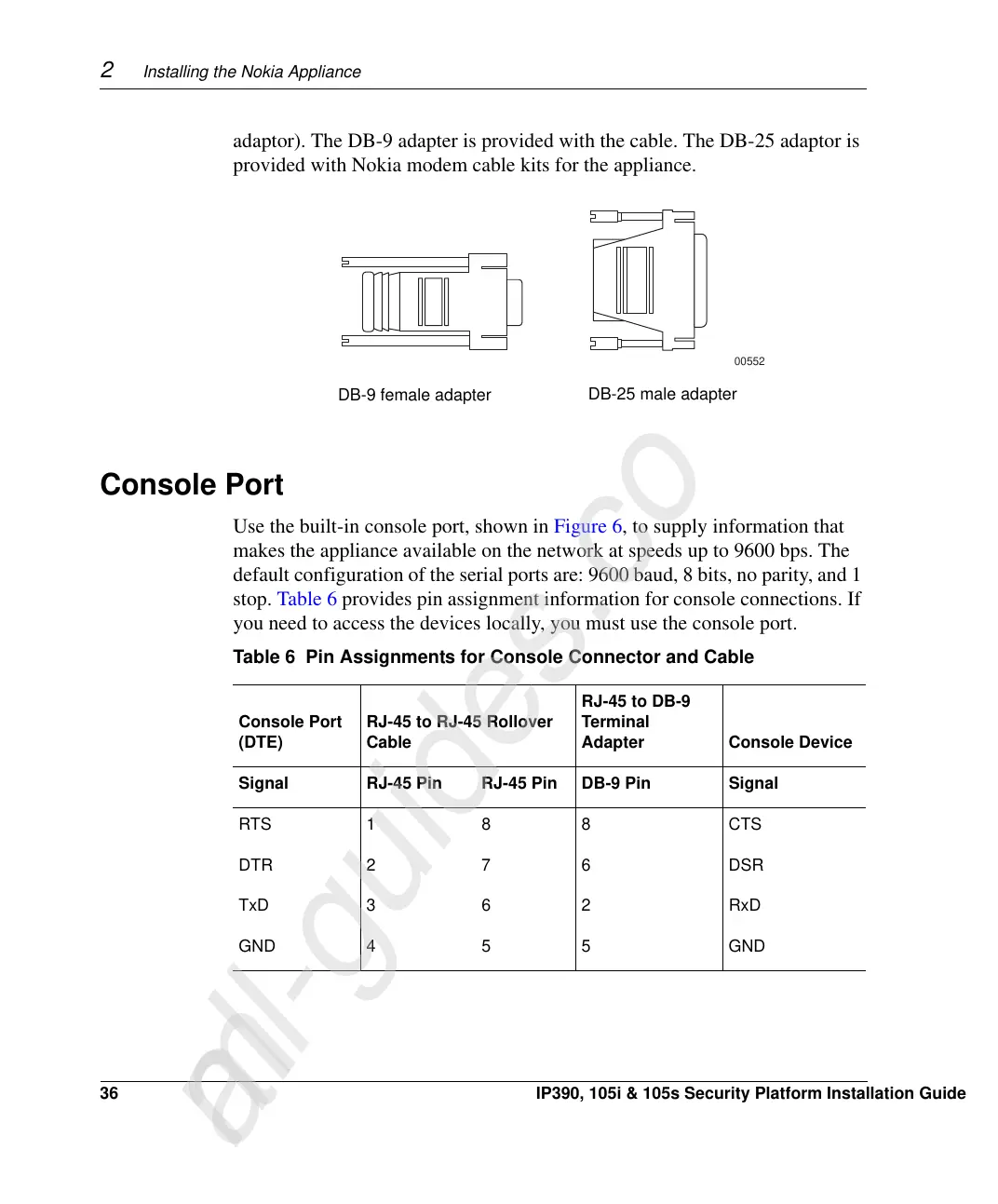

2 Installing the Nokia Appliance
36 IP390, 105i & 105s Security Platform Installation Guide
adaptor). The DB-9 adapter is provided with the cable. The DB-25 adaptor is
provided with Nokia modem cable kits for the
appliance.
Console Port
Use the built-in console port, shown in Figure 6, to supply information that
makes the appliance available on the network at speeds up to 9600 bps. The
default configuration of the serial ports are: 9600 baud, 8 bits, no parity, and 1
stop. Table 6 provides pin assignment information for console connections. If
you need to access the devices locally, you must use the console port.
Table 6 Pin Assignments for Console Connector and Cable
00552
DB-9 female adapter
DB-25 male adapter
Console Port
(DTE)
RJ-45 to RJ-45 Rollover
Cable
RJ-45 to DB-9
Terminal
Adapter Console Device
Signal RJ-45 Pin RJ-45 Pin DB-9 Pin Signal
RTS 1 8 8 CTS
DTR 2 7 6 DSR
TxD 3 6 2 RxD
GND 4 5 5 GND
