Two-Port Copper Gigabit Ethernet Network Interface Card
IP390, 105i & 105s Security Platform Installation Guide 65

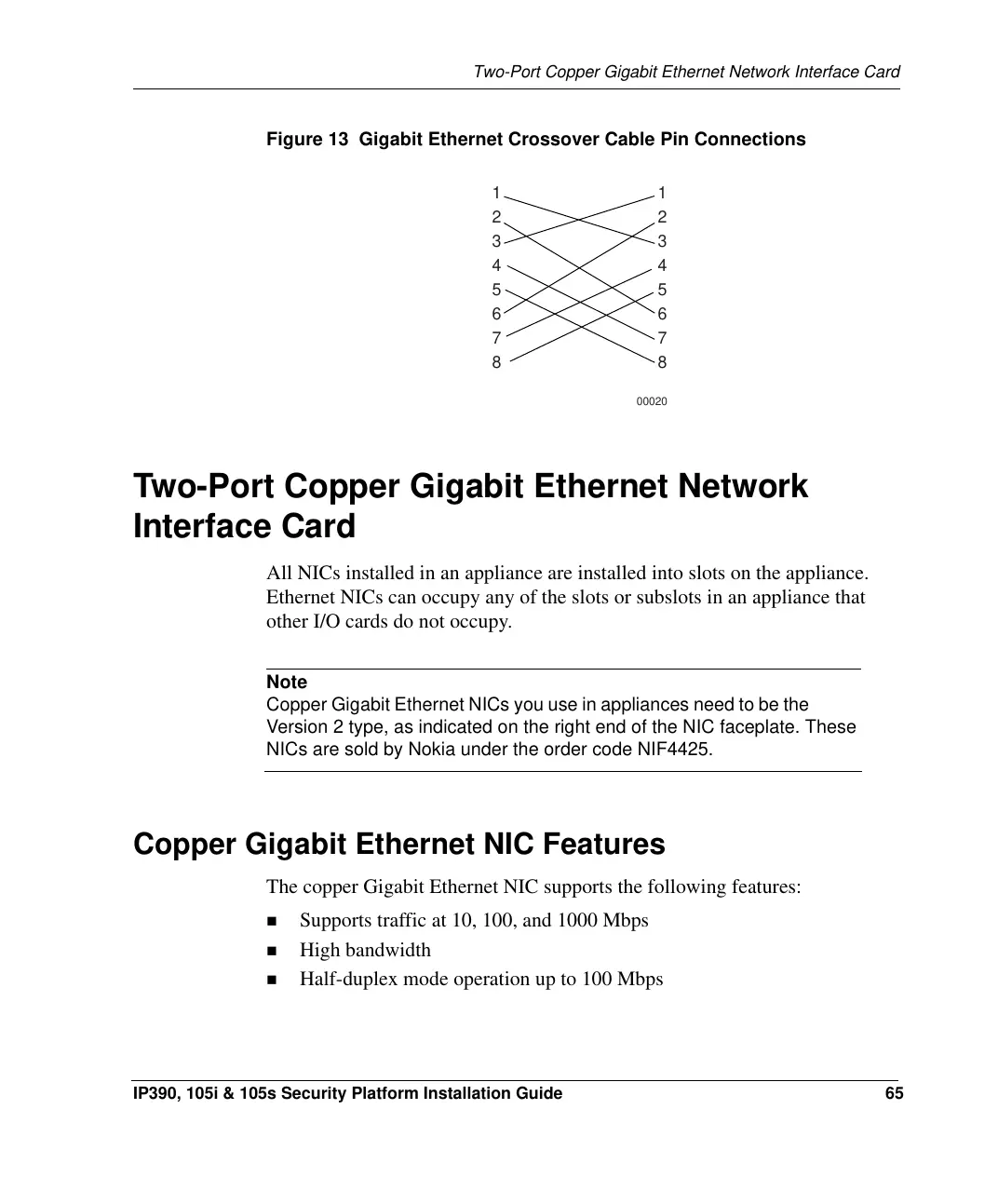

Figure 13 Gigabit Ethernet Crossover Cable Pin Connections
Two-Port Copper Gigabit Ethernet Network
Interface Card
All NICs installed in an appliance are installed into slots on the appliance.
Ethernet NICs can occupy any of the slots or subslots in an appliance that
other I/O cards do not occupy.
Note
Copper Gigabit Ethernet NICs you use in appliances need to be the
Version 2 type, as indicated on the right end of the NIC faceplate. These
NICs are sold by Nokia under the order code NIF4425.
Copper Gigabit Ethernet NIC Features
The copper Gigabit Ethernet NIC supports the following features:
 Supports traffic at 10, 100, and 1000 Mbps
 High bandwidth
 Half-duplex mode operation up to 100 Mbps
00020
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
