Configuring and Activating Interfaces
IP390, 105i & 105s Security Platform Installation Guide 59

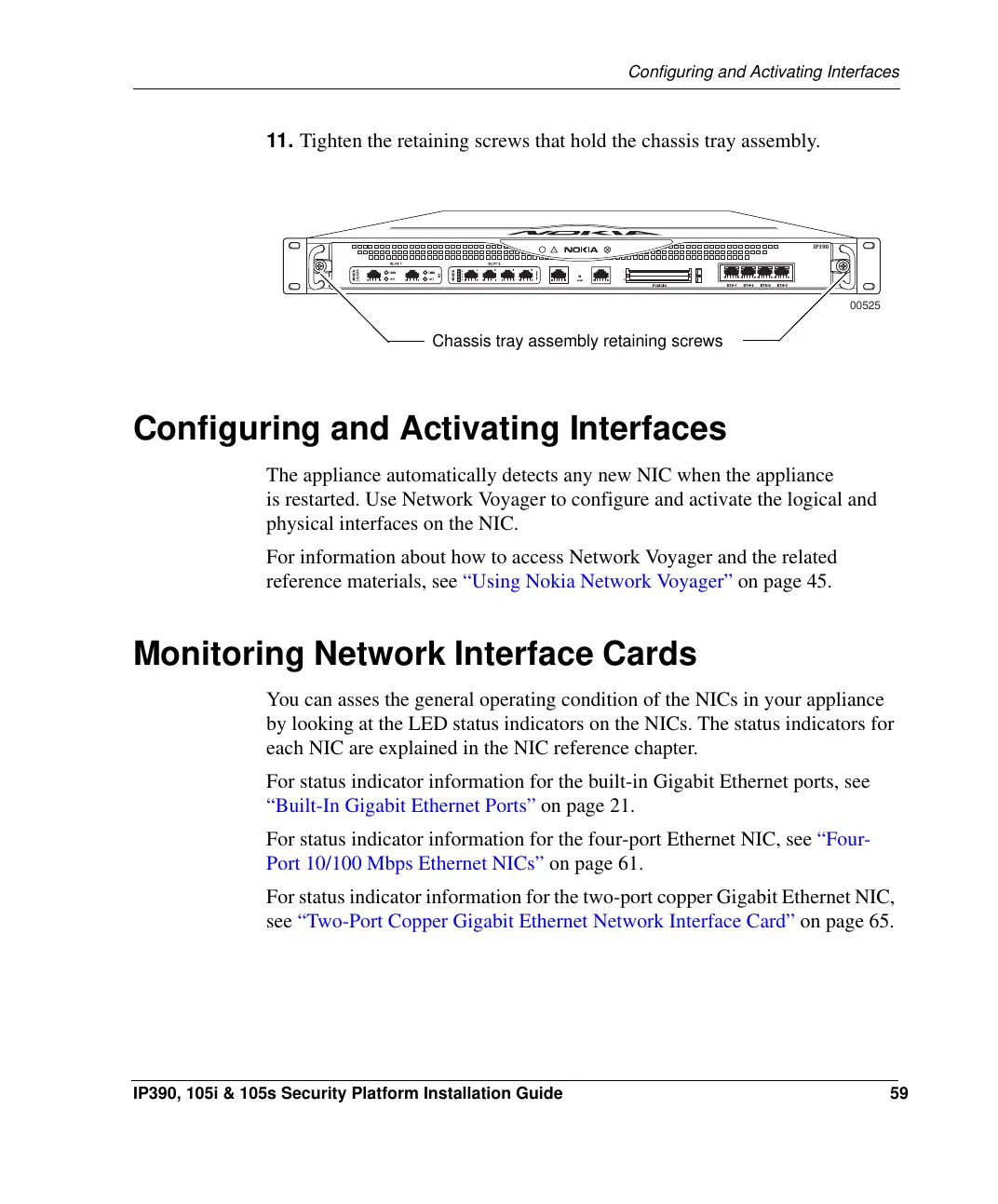

11. Tighten the retaining screws that hold the chassis tray assembly.
Configuring and Activating Interfaces
The appliance automatically detects any new NIC when the appliance
is restarted. Use Network Voyager to configure and activate the logical and
physical interfaces on the NIC.
For information about how to access Network Voyager and the related
reference materials, see “Using Nokia Network Voyager” on page 45.
Monitoring Network Interface Cards
You can asses the general operating condition of the NICs in your appliance
by looking at the LED status indicators on the NICs. The status indicators for
each NIC are explained in the NIC reference chapter.
For status indicator information for the built-in Gigabit Ethernet ports, see
“Built-In Gigabit Ethernet Ports” on page 21.
For status indicator information for the four-port Ethernet NIC, see “Four-
Port 10/100 Mbps Ethernet NICs” on page 61.
For status indicator information for the two-port copper Gigabit Ethernet NIC,
see “Two-Port Copper Gigabit Ethernet Network Interface Card” on page 65.
00525
IP390
Chassis tray assembly retaining screws
