4 Installing and Replacing Network Interface Cards
58 IP390, 105i & 105s Security Platform Installation Guide

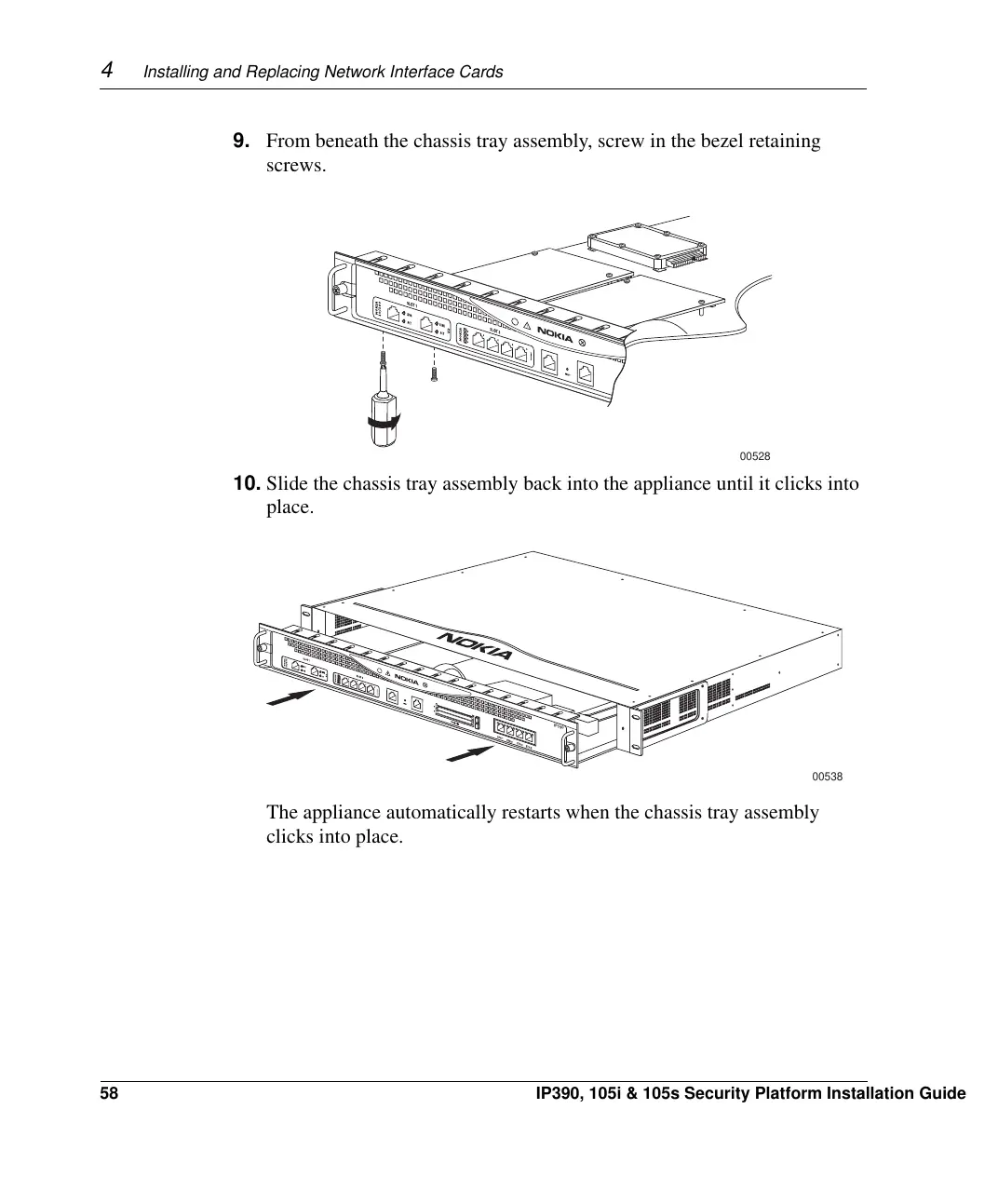

9. From beneath the chassis tray assembly, screw in the bezel retaining
screws.
10. Slide the chassis tray assembly back into the appliance until it clicks into
place.
The appliance automatically restarts when the chassis tray assembly
clicks into place.
00528
00538
IP390
