5 Connecting PMC Network Interface Cards
64 IP390, 105i & 105s Security Platform Installation Guide

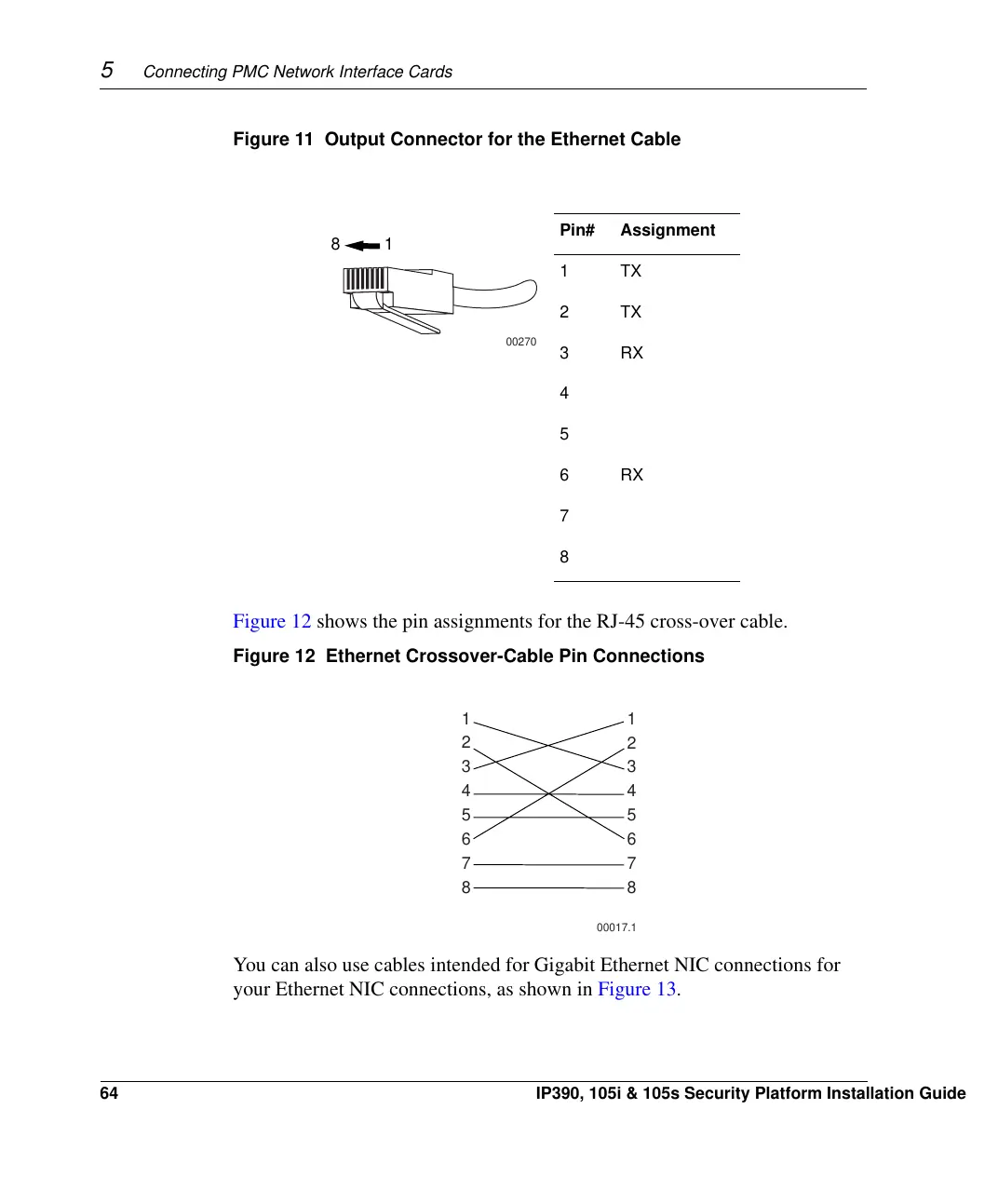

Figure 11 Output Connector for the Ethernet Cable
Figure 12 shows the pin assignments for the RJ-45 cross-over cable.
Figure 12 Ethernet Crossover-Cable Pin Connections
You can also use cables intended for Gigabit Ethernet NIC connections for
your Ethernet NIC connections, as shown in Figure 13.
Pin# Assignment
1TX
2TX
3RX
4
5
6RX
7
8
00270
81
00017.1
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
