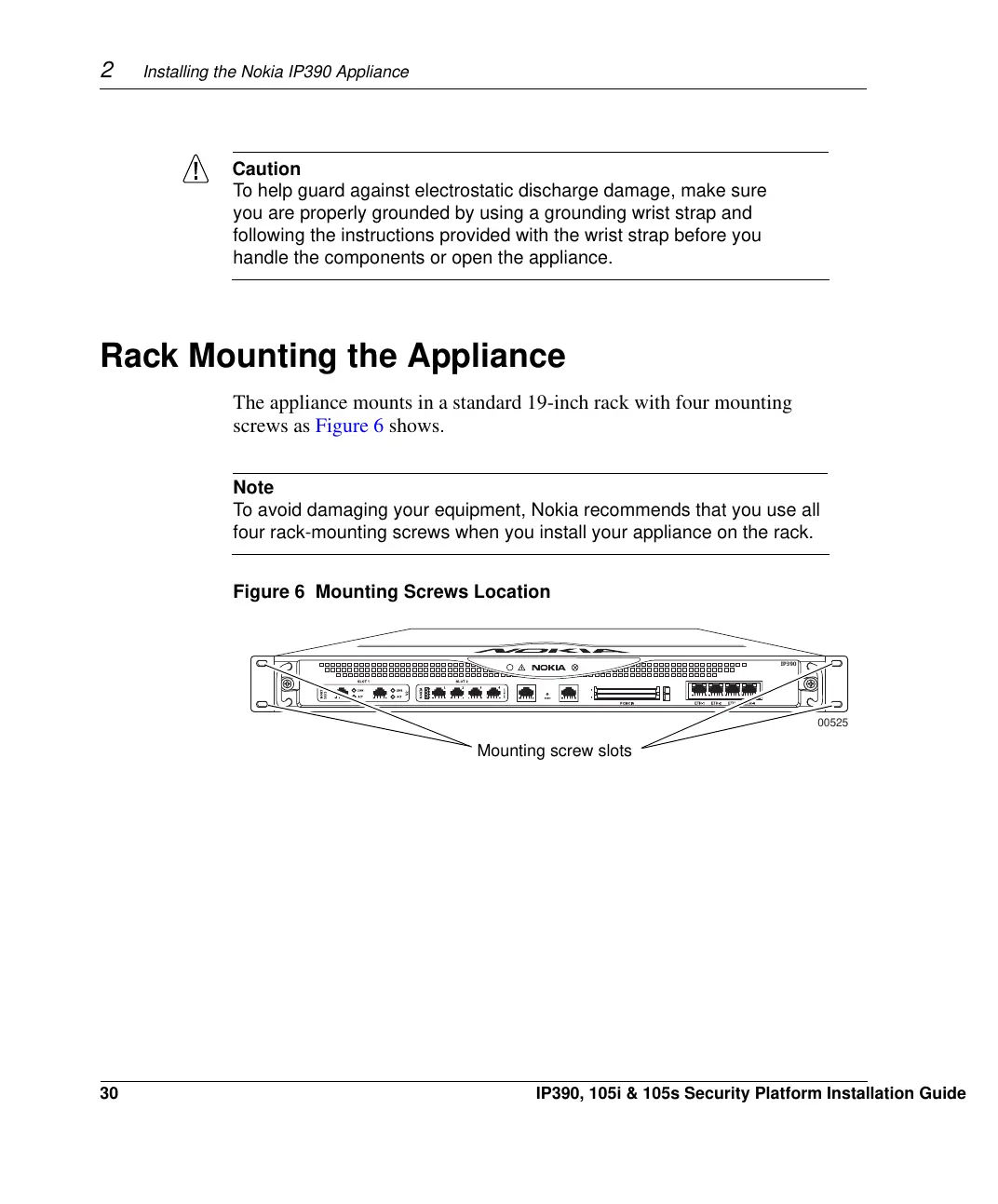

2 Installing the Nokia IP390 Appliance
30 IP390, 105i & 105s Security Platform Installation Guide
Caution
To help guard against electrostatic discharge damage, make sure
you are properly grounded by using a grounding wrist strap and
following the instructions provided with the wrist strap before you
handle the components or open the appliance.
Rack Mounting the Appliance
The appliance mounts in a standard 19-inch rack with four mounting
screws as Figure 6 shows.
Note
To avoid damaging your equipment, Nokia recommends that you use all
four rack-mounting screws when you install your appliance on the rack.
Figure 6 Mounting Screws Location
00525
IP390
Mounting screw slots
