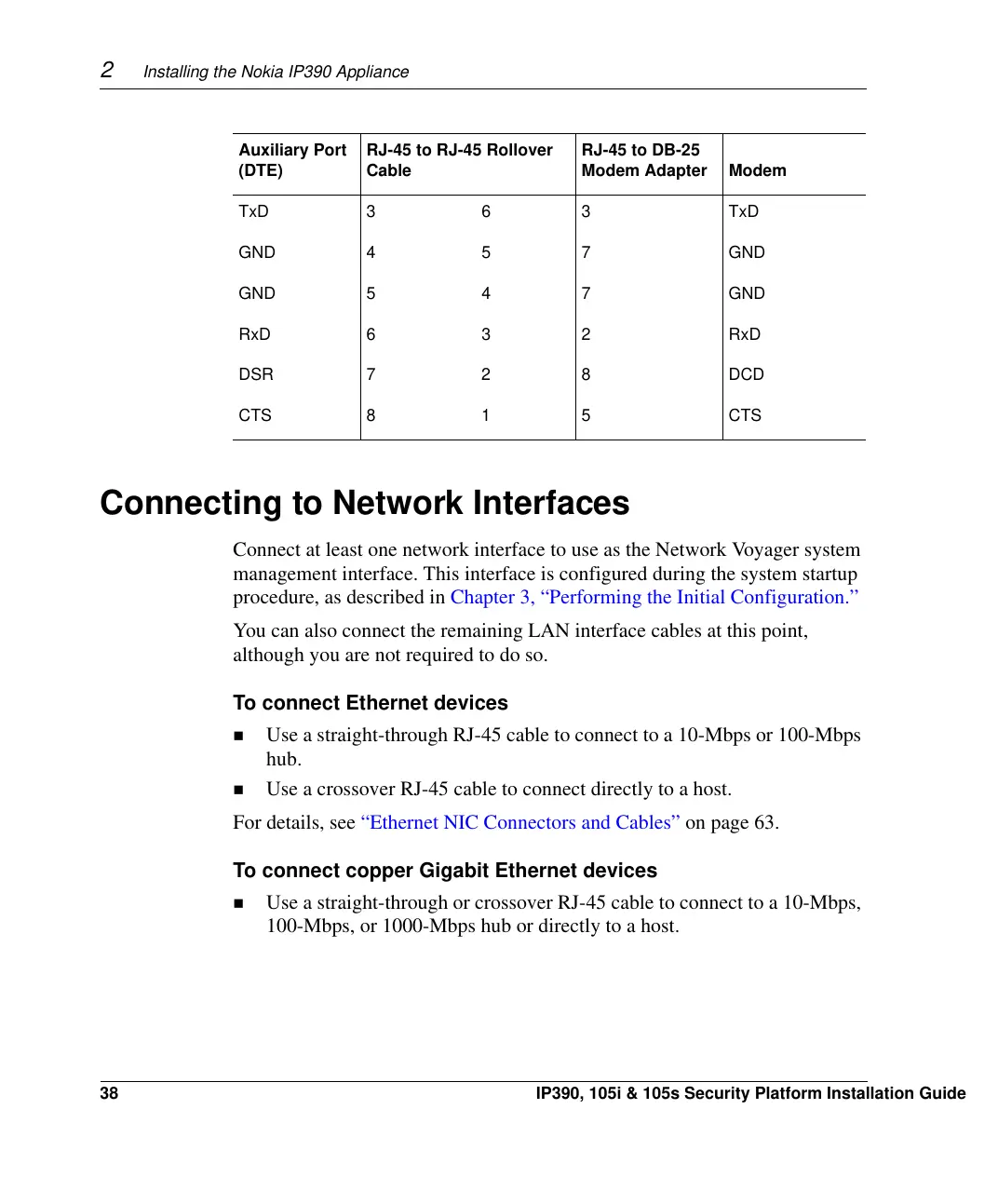

2 Installing the Nokia IP390 Appliance
38 IP390, 105i & 105s Security Platform Installation Guide
Connecting to Network Interfaces
Connect at least one network interface to use as the Network Voyager system
management interface. This interface is configured during the system startup
procedure, as described in Chapter 3, “Performing the Initial Configuration.”
You can also connect the remaining LAN interface cables at this point,
although you are not required to do so.
To connect Ethernet devices
Use a straight-through RJ-45 cable to connect to a 10-Mbps or 100-Mbps
hub.
Use a crossover RJ-45 cable to connect directly to a host.
For details, see “Ethernet NIC Connectors and Cables” on page 63.
To connect copper Gigabit Ethernet devices
Use a straight-through or crossover RJ-45 cable to connect to a 10-Mbps,
100-Mbps, or 1000-Mbps hub or directly to a host.
TxD 3 6 3 TxD
GND 4 5 7 GND
GND 5 4 7 GND
RxD 6 3 2 RxD
DSR 7 2 8 DCD
CTS 8 1 5 CTS
Auxiliary Port
(DTE)
RJ-45 to RJ-45 Rollover
Cable
RJ-45 to DB-25
Modem Adapter Modem
