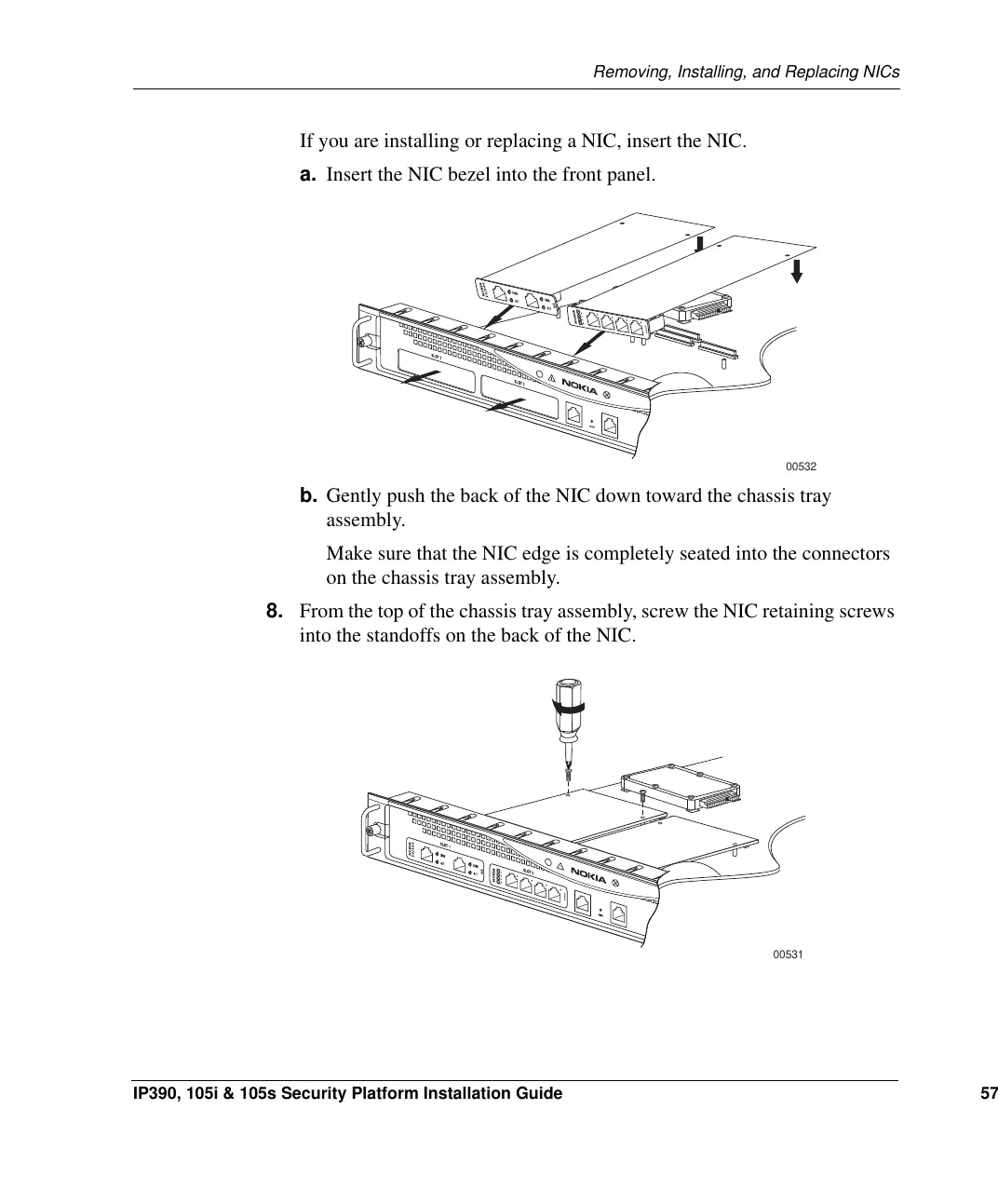

Removing, Installing, and Replacing NICs
IP390, 105i & 105s Security Platform Installation Guide 57
If you are installing or replacing a NIC, insert the NIC.
a. Insert the NIC bezel into the front panel.
b. Gently push the back of the NIC down toward the chassis tray
assembly.
Make sure that the NIC edge is completely seated into the connectors
on the chassis tray assembly.
8. From the top of the chassis tray assembly, screw the NIC retaining screws
into the standoffs on the back of the NIC.
00532
00531
