4 Installing and Replacing Network Interface Cards
56 IP390, 105i & 105s Security Platform Installation Guide

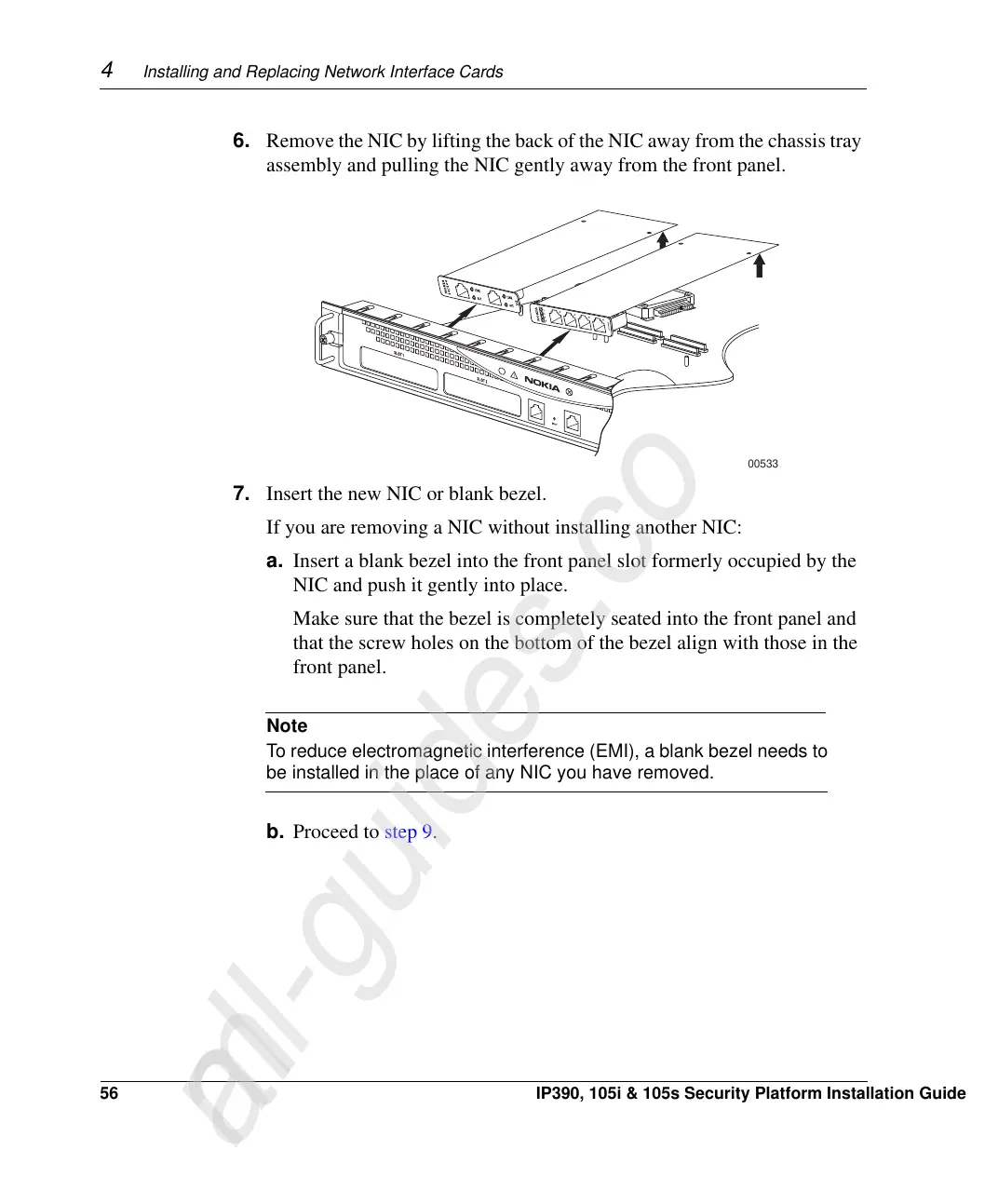

6. Remove the NIC by lifting the back of the NIC away from the chassis tray
assembly and pulling the NIC gently away from the front panel.
7. Insert the new NIC or blank bezel.
If you are removing a NIC without installing another NIC:
a. Insert a blank bezel into the front panel slot formerly occupied by the
NIC and push it gently into place.
Make sure that the bezel is completely seated into the front panel and
that the screw holes on the bottom of the bezel align with those in the
front panel.
Note
To reduce electromagnetic interference (EMI), a blank bezel needs to
be installed in the place of any NIC you have removed.
b. Proceed to step 9.
00533
