Removing, Installing, and Replacing NICs
IP390, 105i & 105s Security Platform Installation Guide 55

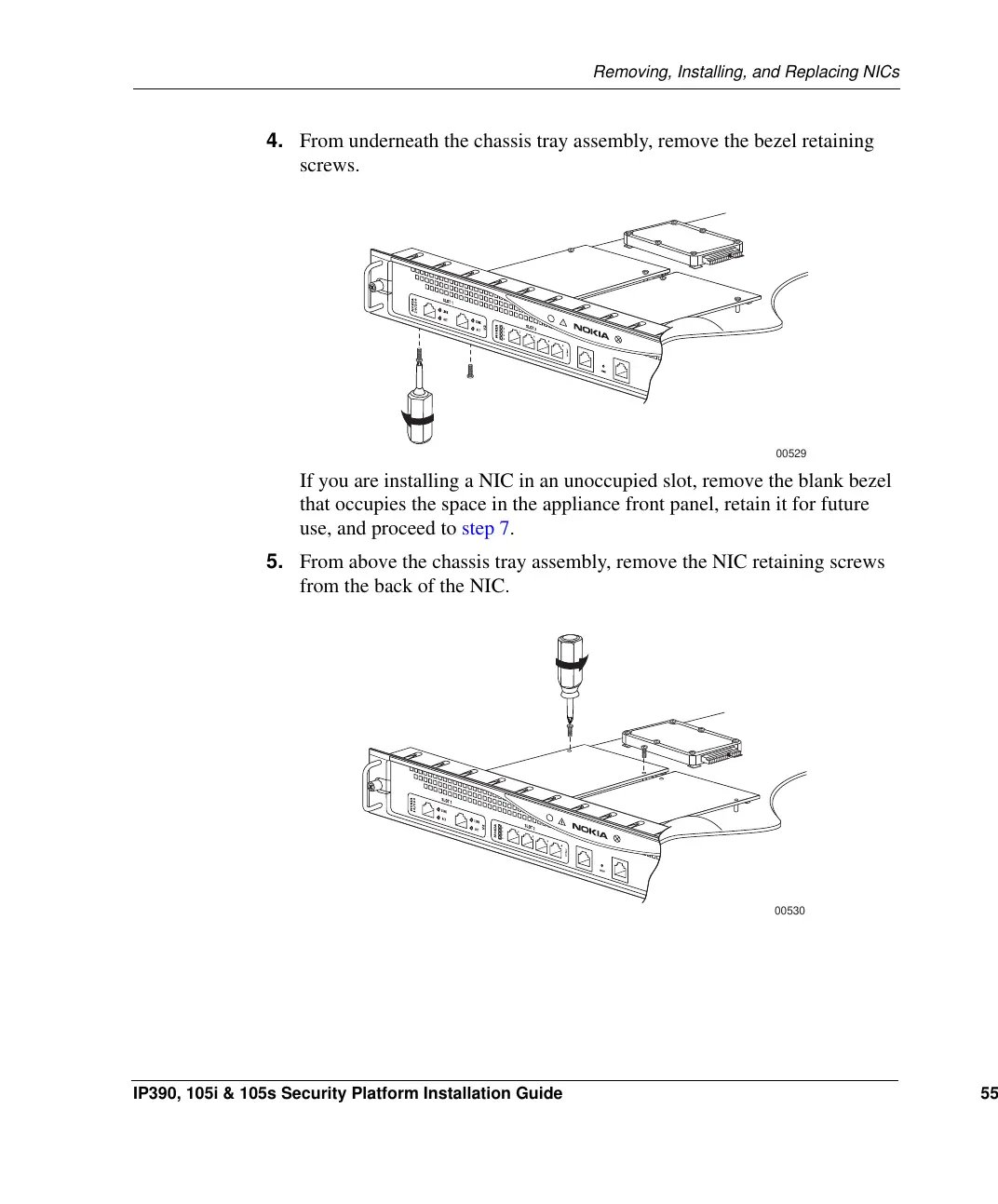

4. From underneath the chassis tray assembly, remove the bezel retaining
screws.
If you are installing a NIC in an unoccupied slot, remove the blank bezel
that occupies the space in the appliance front panel, retain it for future
use, and proceed to step 7.
5. From above the chassis tray assembly, remove the NIC retaining screws
from the back of the NIC.
00529
00530
