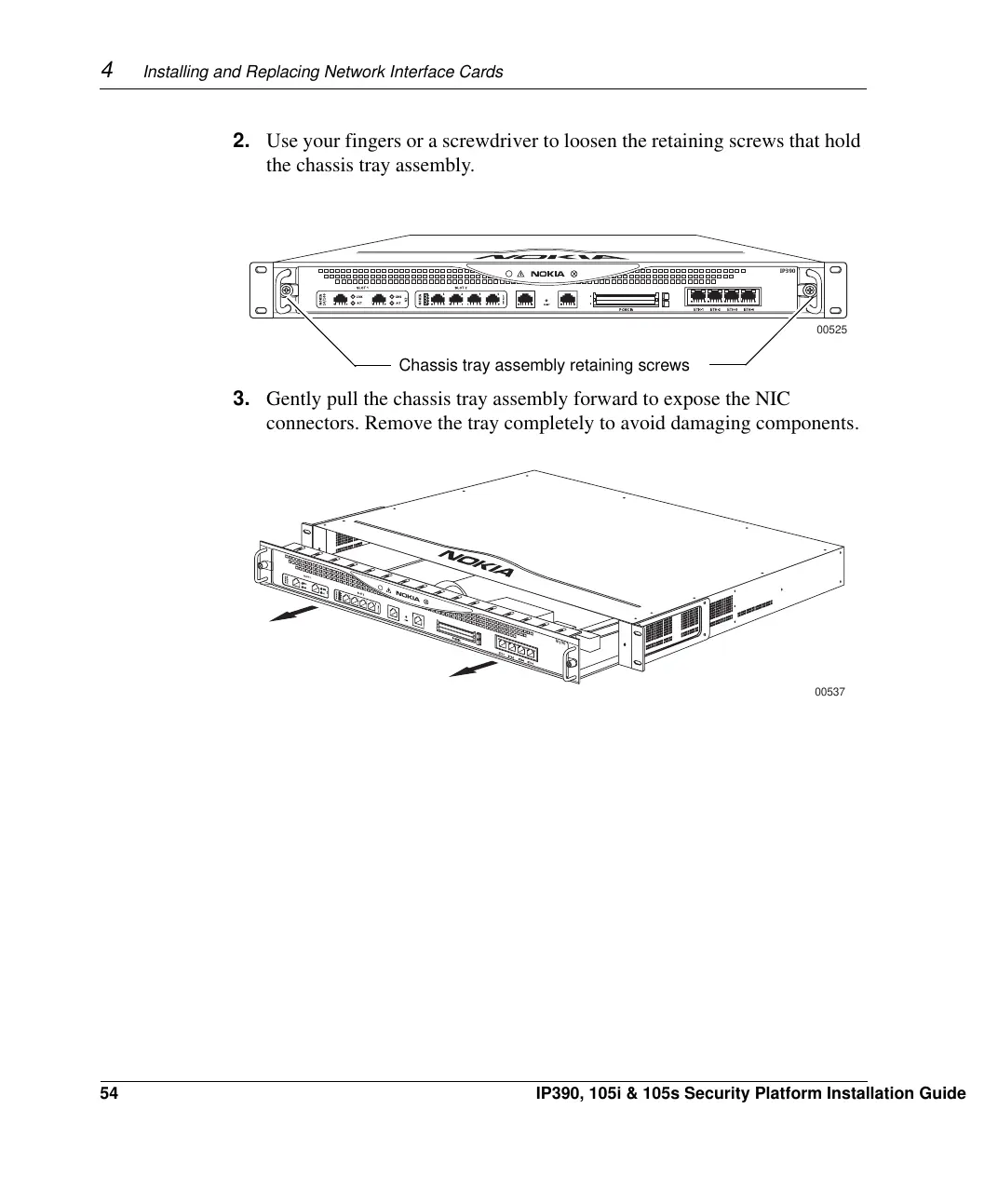

2. Use your fingers or a screwdriver to loosen the retaining screws that hold
the chassis tray assembly.
3. Gently pull the chassis tray assembly forward to expose the NIC
connectors. Remove the tray completely to avoid damaging components.
00525
IP390
Chassis tray assembly retaining screws
