Replacing the Compact Flash Memory Card
IP390, 105i & 105s Security Platform Installation Guide 75

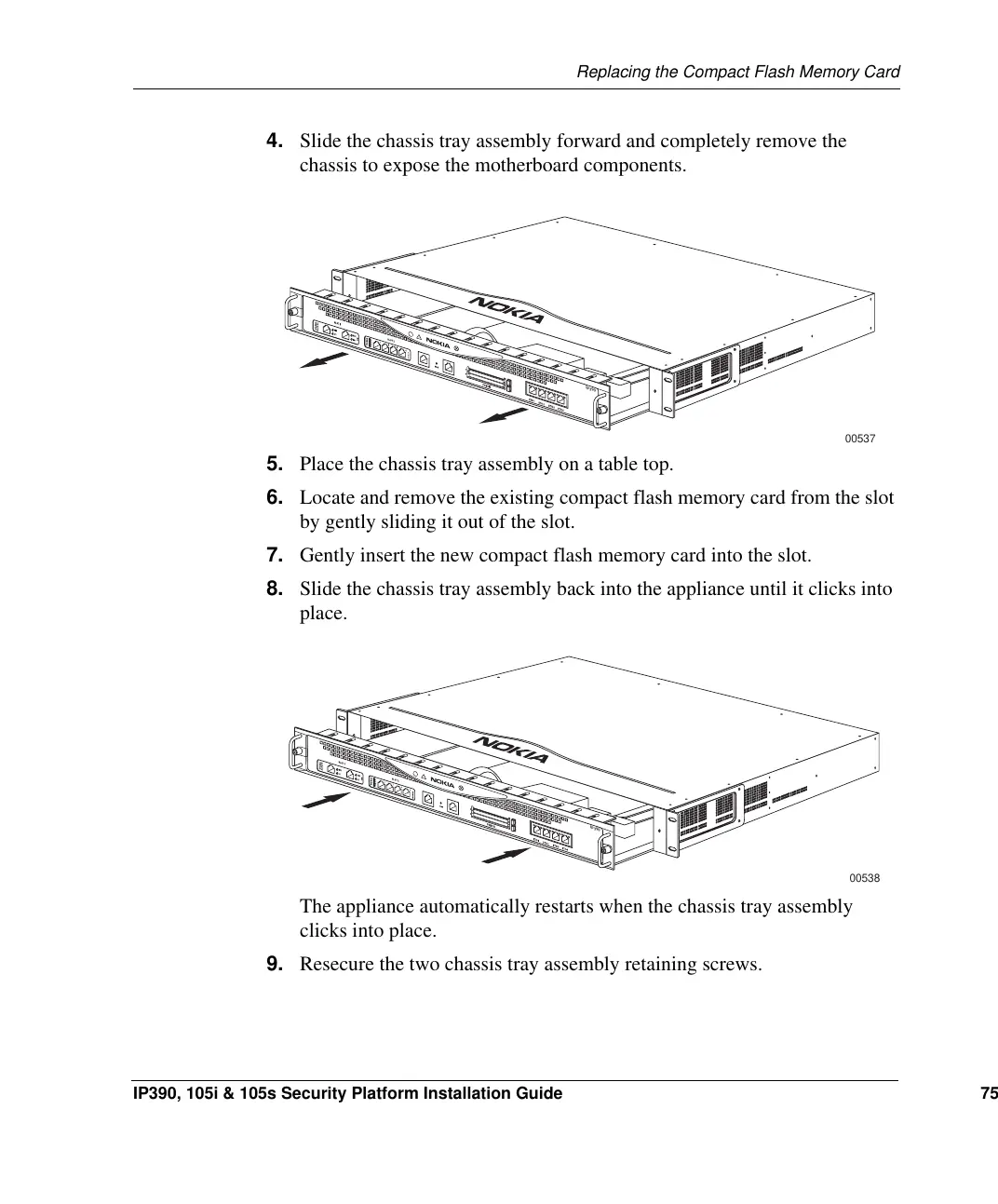

4. Slide the chassis tray assembly forward and completely remove the
chassis to expose the motherboard components.
5. Place the chassis tray assembly on a table top.
6. Locate and remove the existing compact flash memory card from the slot
by gently sliding it out of the slot.
7. Gently insert the new compact flash memory card into the slot.
8. Slide the chassis tray assembly back into the appliance until it clicks into
place.
The appliance automatically restarts when the chassis tray assembly
clicks into place.
9. Resecure the two chassis tray assembly retaining screws.
00537
IP390
00538
IP390
