Replacing or Upgrading Memory
IP390, 105i & 105s Security Platform Installation Guide 89

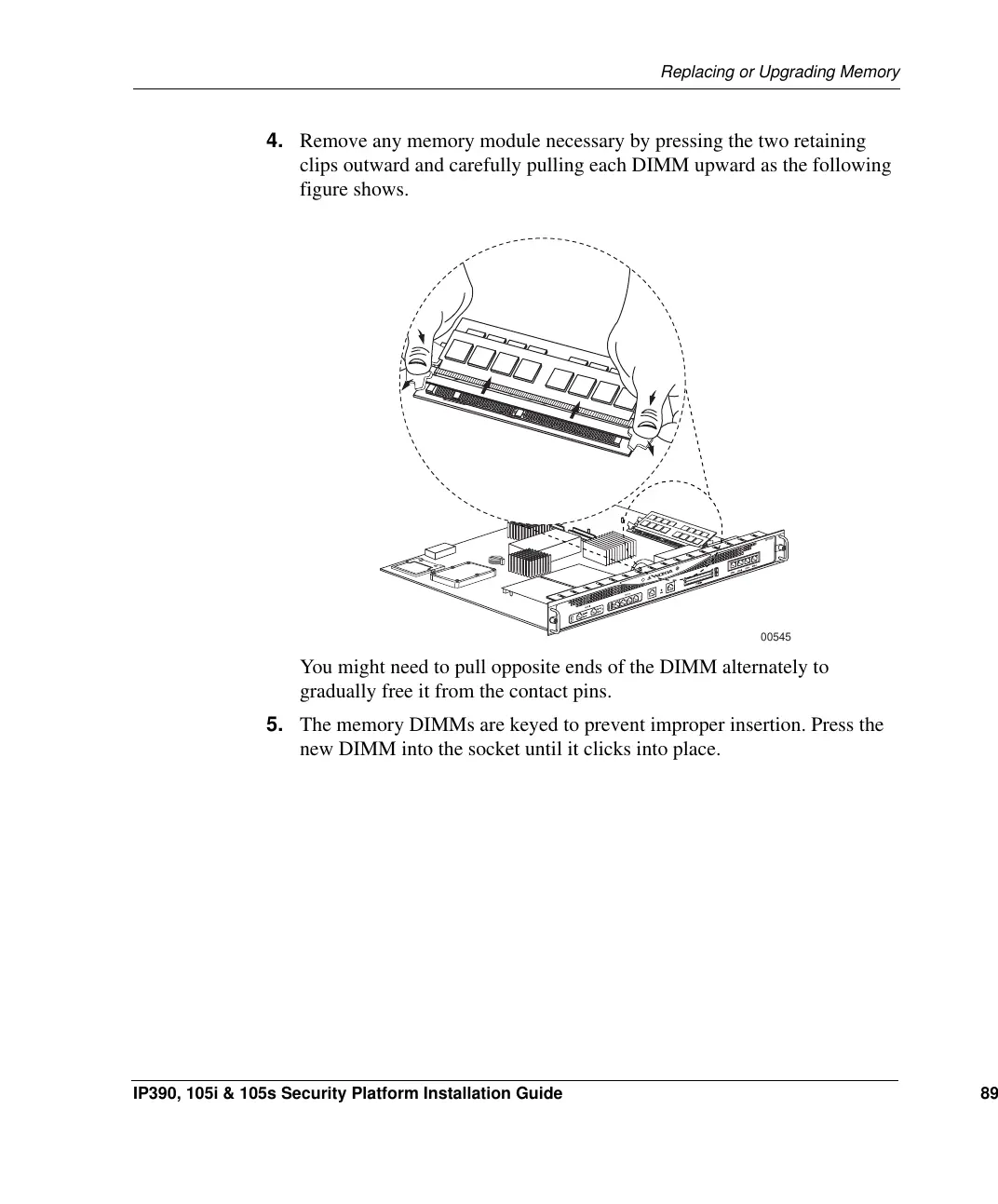

4. Remove any memory module necessary by pressing the two retaining
clips outward and carefully pulling each DIMM upward as the following
figure shows.
You might need to pull opposite ends of the DIMM alternately to
gradually free it from the contact pins.
5. The memory DIMMs are keyed to prevent improper insertion. Press the
new DIMM into the socket until it clicks into place.
00545
IP390
