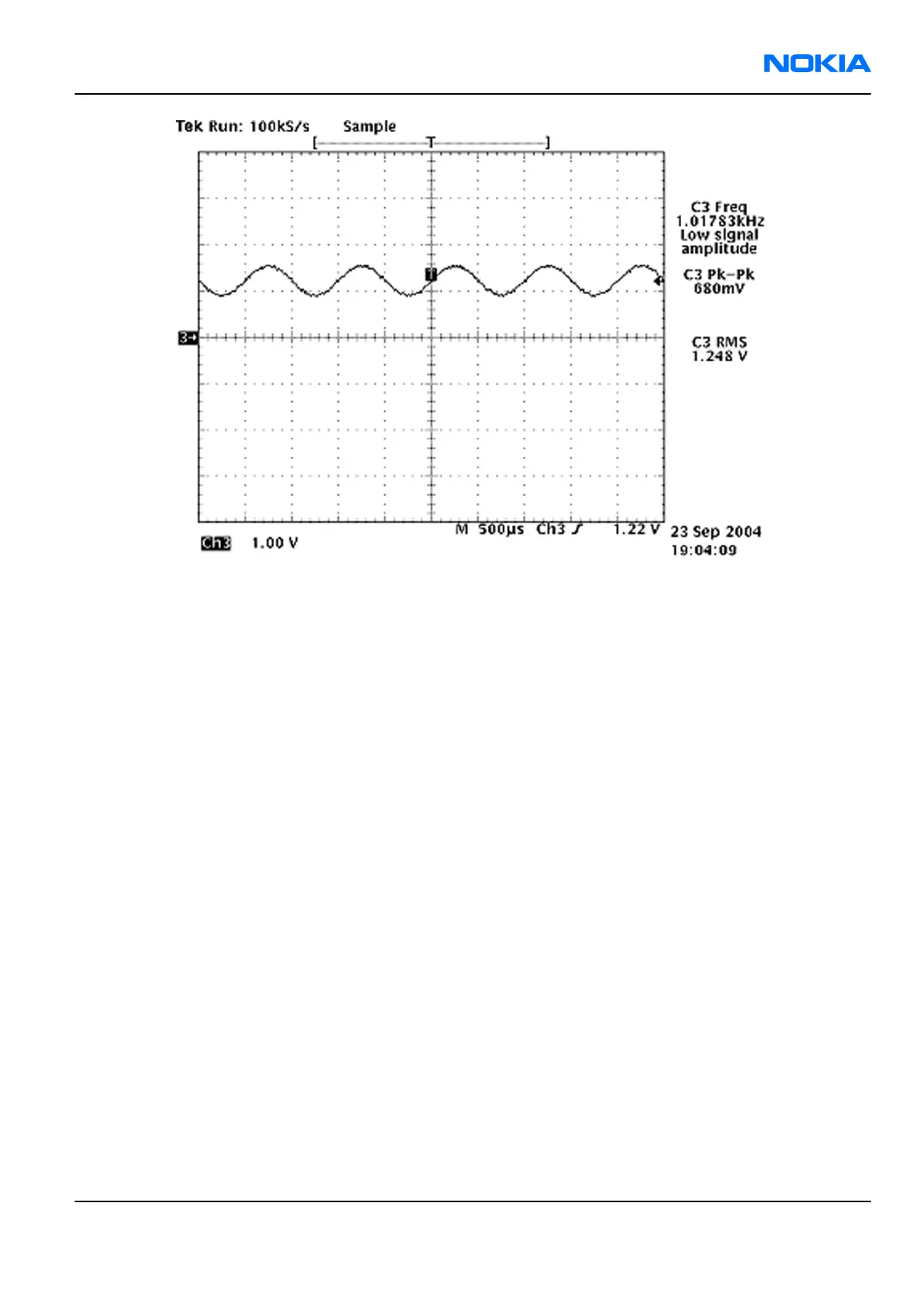

Figure 56 Single-ended output waveform of the HP_in_Ext_out loop when microphone is connected.
RM-180
BB Troubleshooting and Tuning Guide Nokia Customer Care
Issue 1 COMPANY CONFIDENTIAL Page 6 –61
Copyright © 2006 Nokia. All rights reserved.
