Nokia N72

Service concept for RF/BB testing and tuning

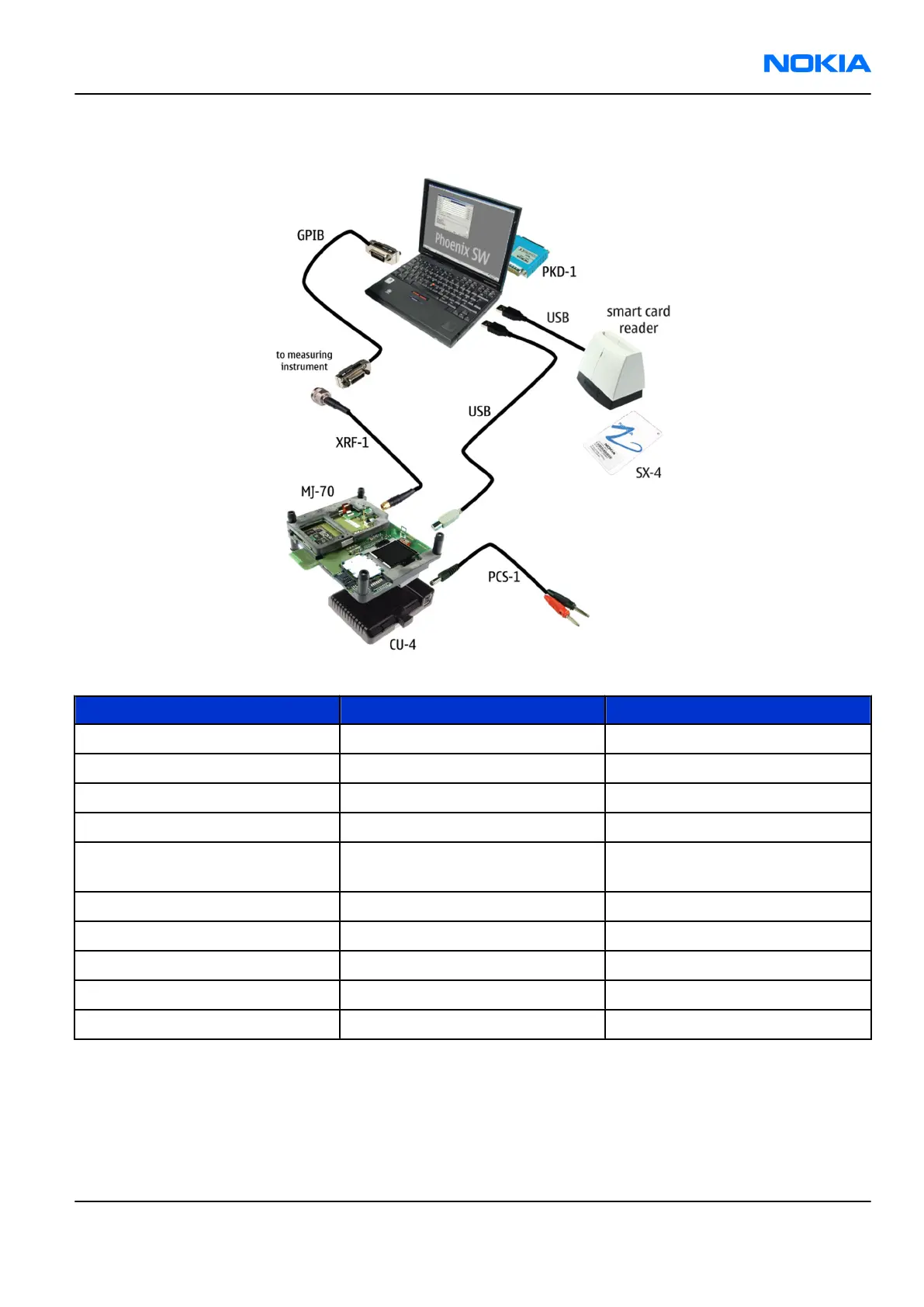

Figure 34 Service concept for RF/BB testing and tuning
Item Type Description
1 MJ-70 Module jig
2 CU-4 Control unit
3 Standard USB cable
4 PCS-1 DC power cable
5 Standard USB cable + smart card
reader
6 SX-4 Smart card
7 XRF-1 RF cable
8 GPIB control cable
9 PKD-1 SW security device
10 RF shield box
Note: Item 10 not shown in the picture.
RM-180
