Nokia N72

Power distribution

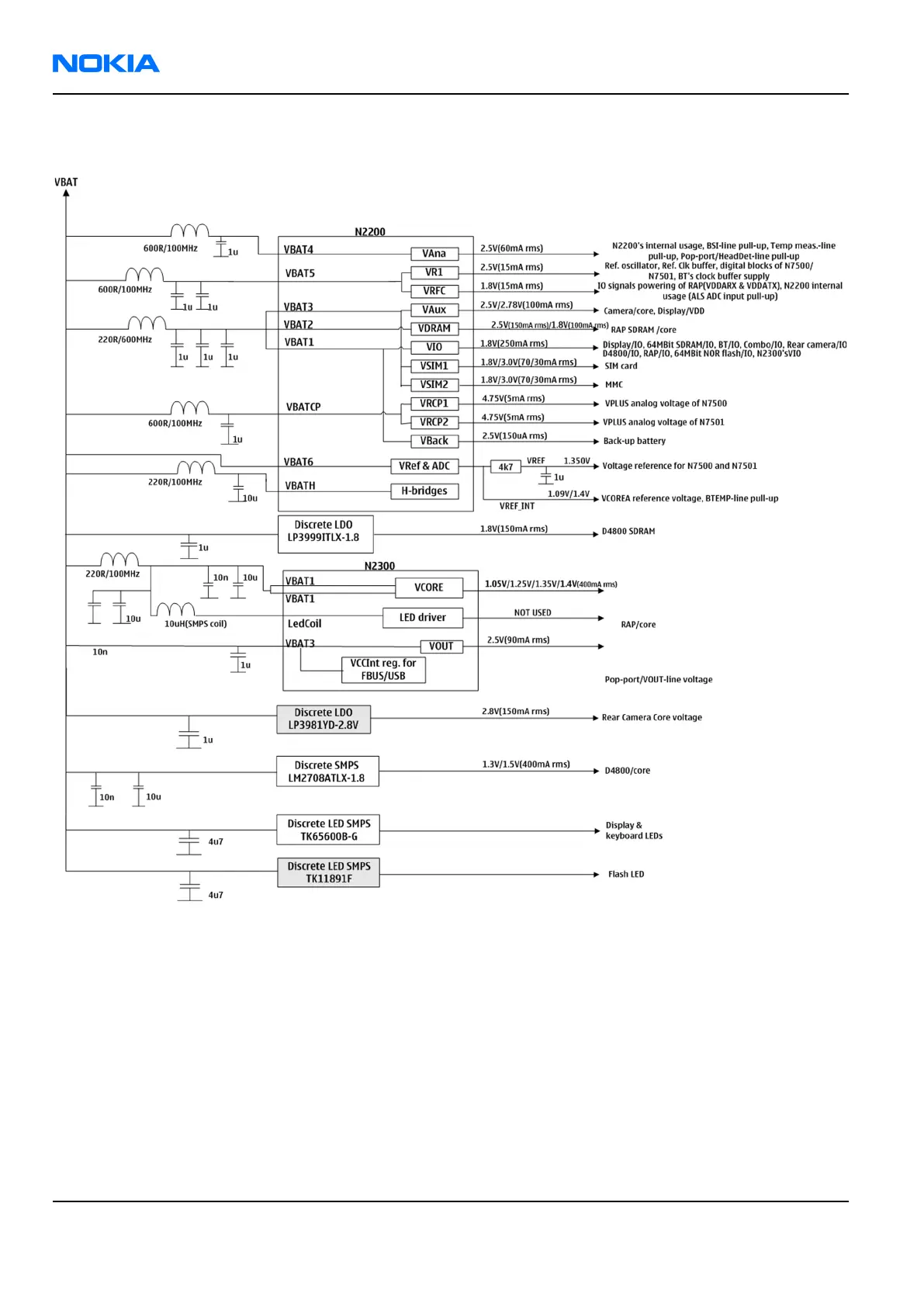

Figure 89 Power distribution diagram
Power supply components:
• N2200
• N2300
• D4800 VCORE SMPS
• BT
• LDO
• camera LDO
• backlight SMPS
All the above are powered by the main battery voltage.
