Nokia N72 Service Manual

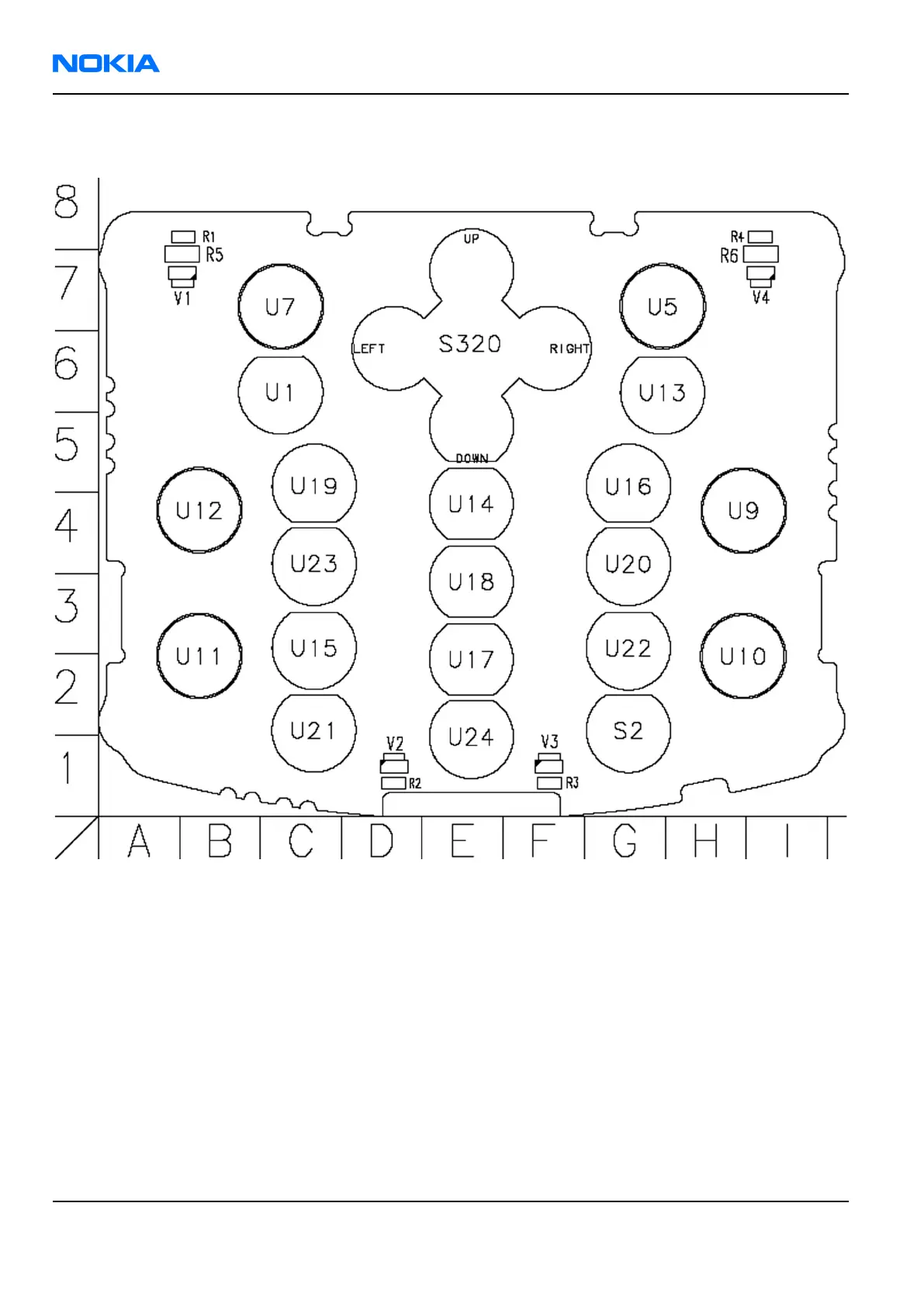

Keyboard layout
Figure 99 Keyboard layout
Display and keyboard backlight
The device has one LED Driver (SMPS) that is used to drive both display and keyboard LEDs.
The LED driver consists of two LED chains: display LED chain and keyboard LED chain. Both chains contain four
LEDs, eight in total.
The current adjustment of the driver is done from the display LED branch. The keyboard current also depends
on the display brightness.
Typically, keyboard LEDs are turned ON only in dark ambient lighting conditions.
RM-180
Nokia Customer Care System Module
Page 9 –24 COMPANY CONFIDENTIAL Issue 1
Copyright © 2006 Nokia. All rights reserved.

Nokia N72 Specifications

General

Panel type	TFT
Display diagonal	2.1 \
Display resolution	176 x 208 pixels
Display number of colors	262144 colors
Internal memory	20 MB
Zoom capability	20x
Rear camera type	Single camera
Rear camera resolution	1600 x 1200 pixels
Video capture resolution (max)	352 x 228 pixels
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Ringer type	Polyphonic
Form factor	Bar
Product color	Violet
Talk time (2G)	3.40 h
Battery capacity	970 mAh
Standby time (2G)	260 h
2G standards	GPRS

Weight and Dimensions

Depth	53 mm
Width	109 mm
Height	18 mm
Weight	124 g
