Nokia N72

Description Parameter Min Max Unit Notes
Threshold for
charging,
falling (N2300)
V
MSTR-
1.9 V Typical value
Battery connector and interface connections & electrical characteristics

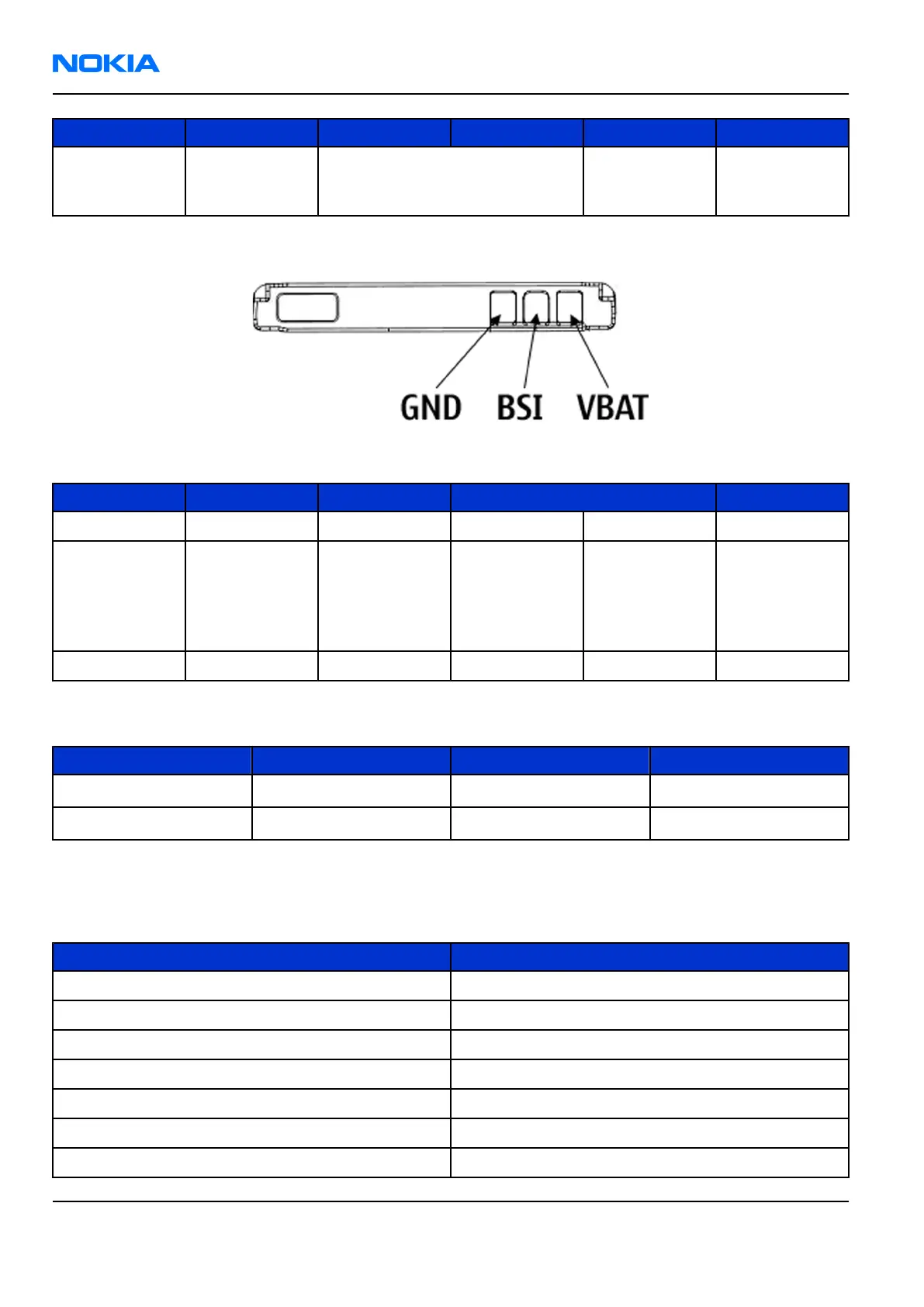

Figure 110 Battery connector
Table 24 Battery interface connections
Pin Signal I/O Engine connection Notes
1 VBAT -> EM ASIC N2200 VBAT Battery voltage
2 BSI -> EM ASIC N2200 BSI Battery size
indication
(fixed resistor
inside the
battery pack)
3 GND GND Ground
Table 25 Battery IF electrical characteristics
Description Parameter Max Unit
Operation voltage V
IN
4.23 VDC
Current rating I
IN
0.9 A
Internal interfaces
Internal interfaces
Name of Connection Connector reference
UI connector X4400
Display X4401
Back camera X1470
Front camera X1472
ALS V4400
Vibra M2100
Microphone B2100
RM-180
