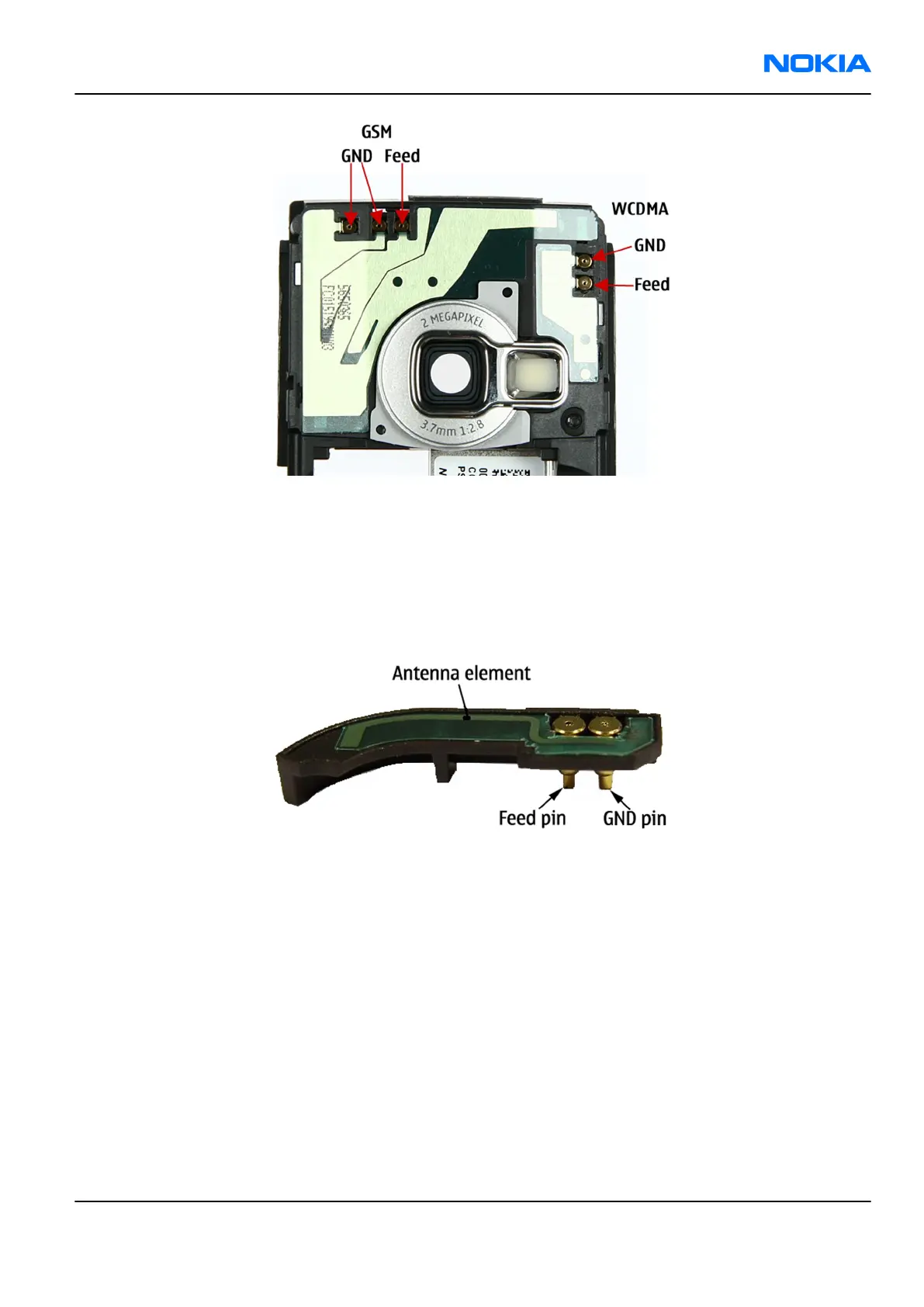

Figure 63 Feed and GND spots of the main antenna
The antenna is functioning normally when the contacts function (RDC = 0 ohm) and the antenna is visually
intact.
BT antenna
BT antenna has one Feed and two GND contacts. The antenna is functioning normally when the contacts
function (RDC = 0 ohm) and the antenna is visually intact.
Figure 64 BT antenna
