6. Click Start.

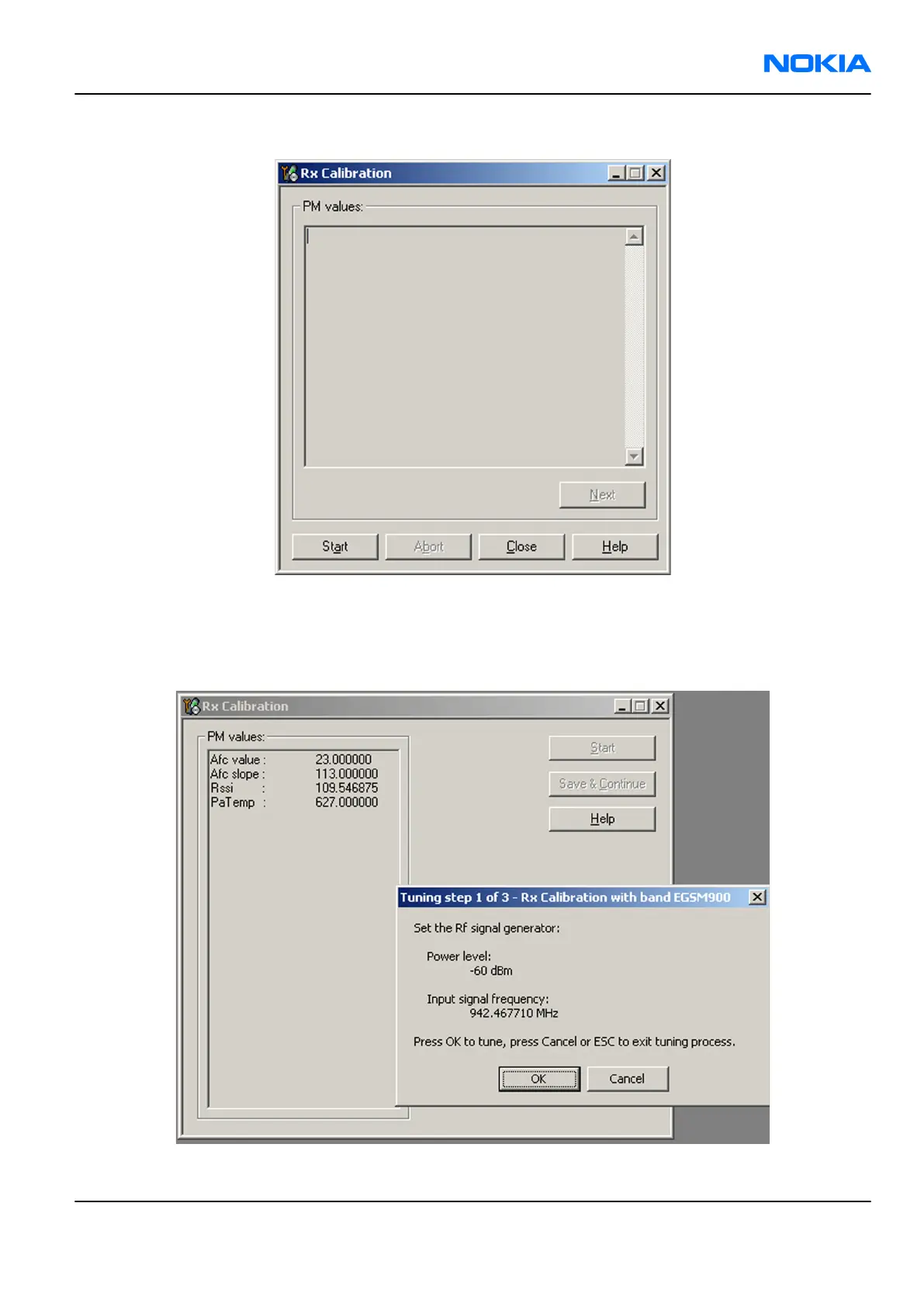

7. Connect the signal generator to the phone and set frequency and amplitude as instructed in the
Tuning
step 1 of 3 - Rx Calibration with band EGSM900
pop-up window.
Note: The calibration uses a non-modulated CW signal. Increase the signal generator level by cable
attenuation and module jig probe attenuation!
8. To perform the tuning, click OK.
RM-180
RF Troubleshooting and Tuning Guide Nokia Customer Care
Issue 1 COMPANY CONFIDENTIAL Page 7 –21
