Colours 16.7 million / 24-bit
Capture Modes Night mode, Sequence mode, self timer

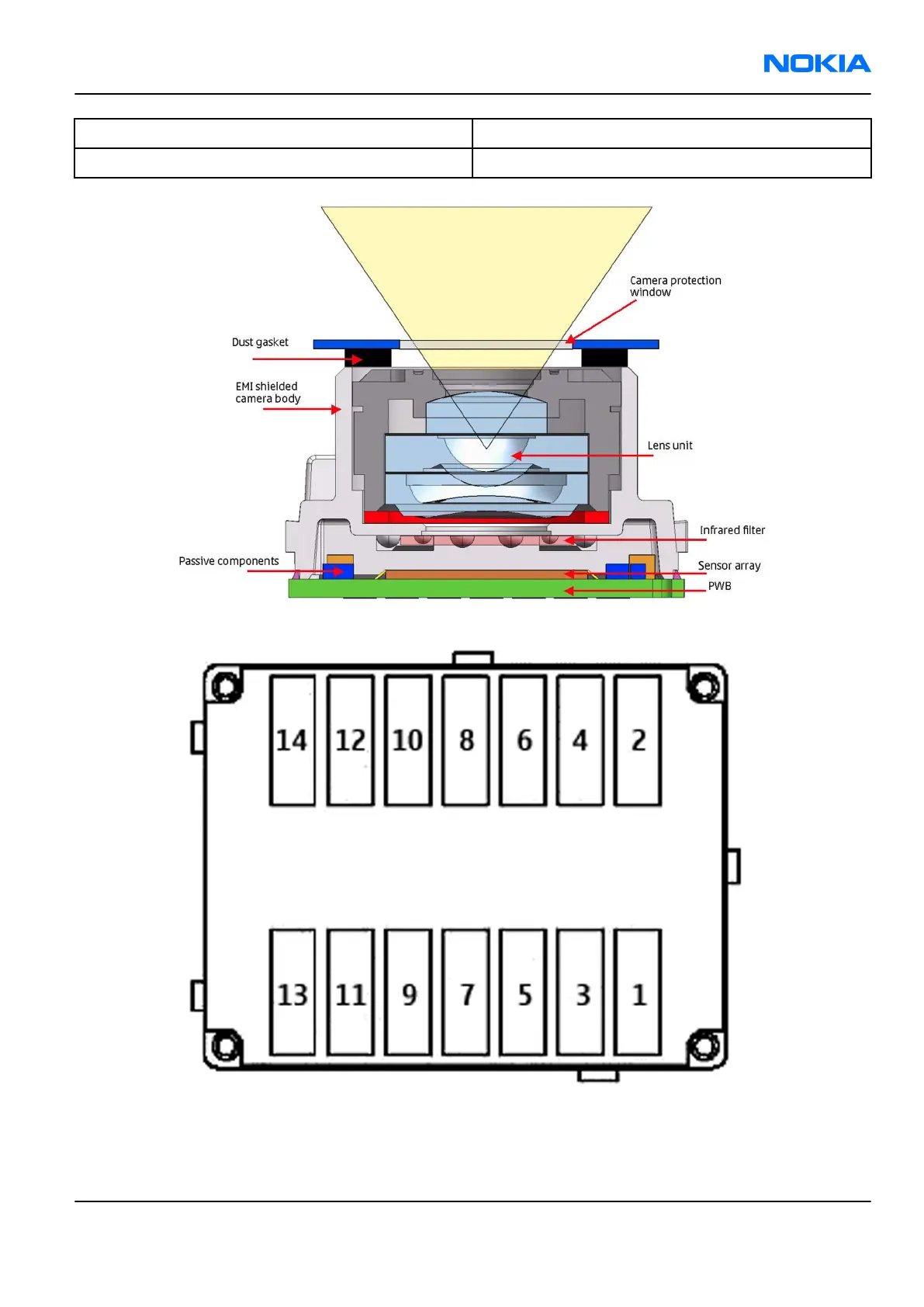

Figure 94 Camera module cross section and assembly principle
Figure 95 Camera module bottom view including serial numbering
The camera module as a component is not a repairable part, meaning that the components inside the module
may not be changed. Cleaning dust from the front face is allowed only. Use clean compressed air.
RM-180
System Module Nokia Customer Care
Issue 1 COMPANY CONFIDENTIAL Page 9 –19
