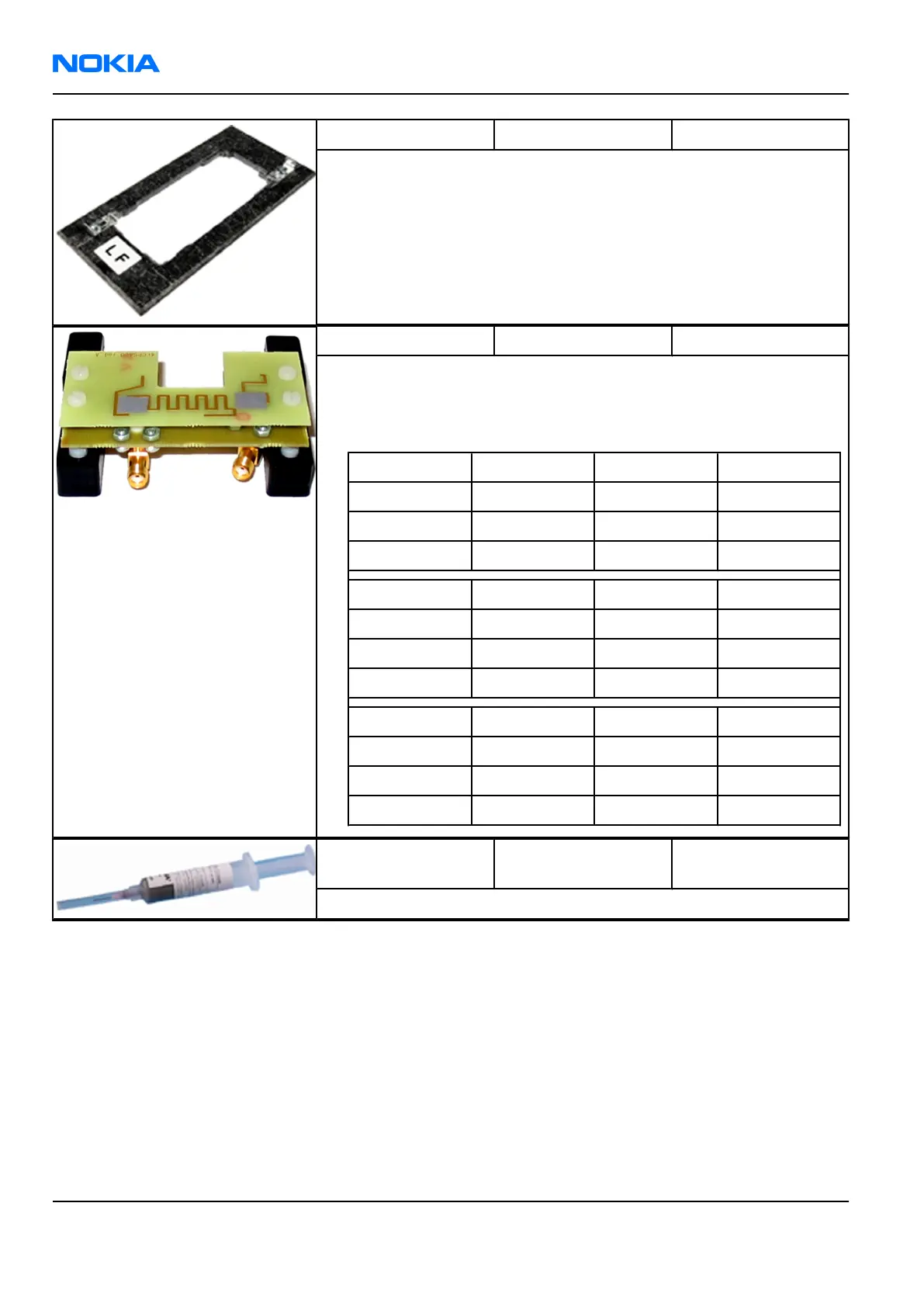

RJ-94 Soldering jig
RJ-94 is a soldering jig used for soldering and as a rework jig for the
engine module.
SA-95 RF coupler
SA-95 is an RF coupler for GSM RF testing. It is used together with the
product-specific flash adapter.
The following table shows attenuations from the antenna pads of the
mobile terminal to the SMA connectors of SA-95:
•
GSM900 TX Att. (dB) GSM900 RX Att. (dB)
880 MHz 3.2 925 MHz 2.8
897 MHz 3.2 942 MHz 2.0
915 MHz 3.2 960 MHz 2.5
GSM1800 TX Att. (dB) GSM1800 RX Att. (dB)
1710 MHz 5.6 1805 MHz 4.5
1748 MHz 4.9 1843 MHz 4.2
1785 MHz 4.6 1880 MHz 3.9
GSM1900 TX Att. (dB) GSM1900 RX Att. (dB)
1850 MHz 4.3 1930 MHz 5.0
1880 MHz 5.1 1960 MHz 4.6
1910 MHz 5.3 1990 MHz 5.7
SPI-1 Soldering paste
injector
RM-180
Nokia Customer Care Service Tools and Service Concepts
Page 4 –10 COMPANY CONFIDENTIAL Issue 1
Copyright © 2006 Nokia. All rights reserved.
