Configure the following parameters:

Table 8-14 WAN DHCP parameters

Field Description

WAN Connection List Select a WAN connection from the list.

DHCP Option 50 Persistent Click to enable DHCP Option 50 persistent.

Enable DHCP Option 60 Click to enable DHCP Option 60 (vendor class identifier ).

Enable DHCP Option 61 Click to enable DHCP Option 61 (client identifier).

Enable DHCP Option 77 Click to enable DHCP Option 77(user class information).

Enable DHCP Option 90 Click to enable DHCP Option 90 (authentication information).

Click Save.

You can click

to update the displayed information.

END OF STEPS

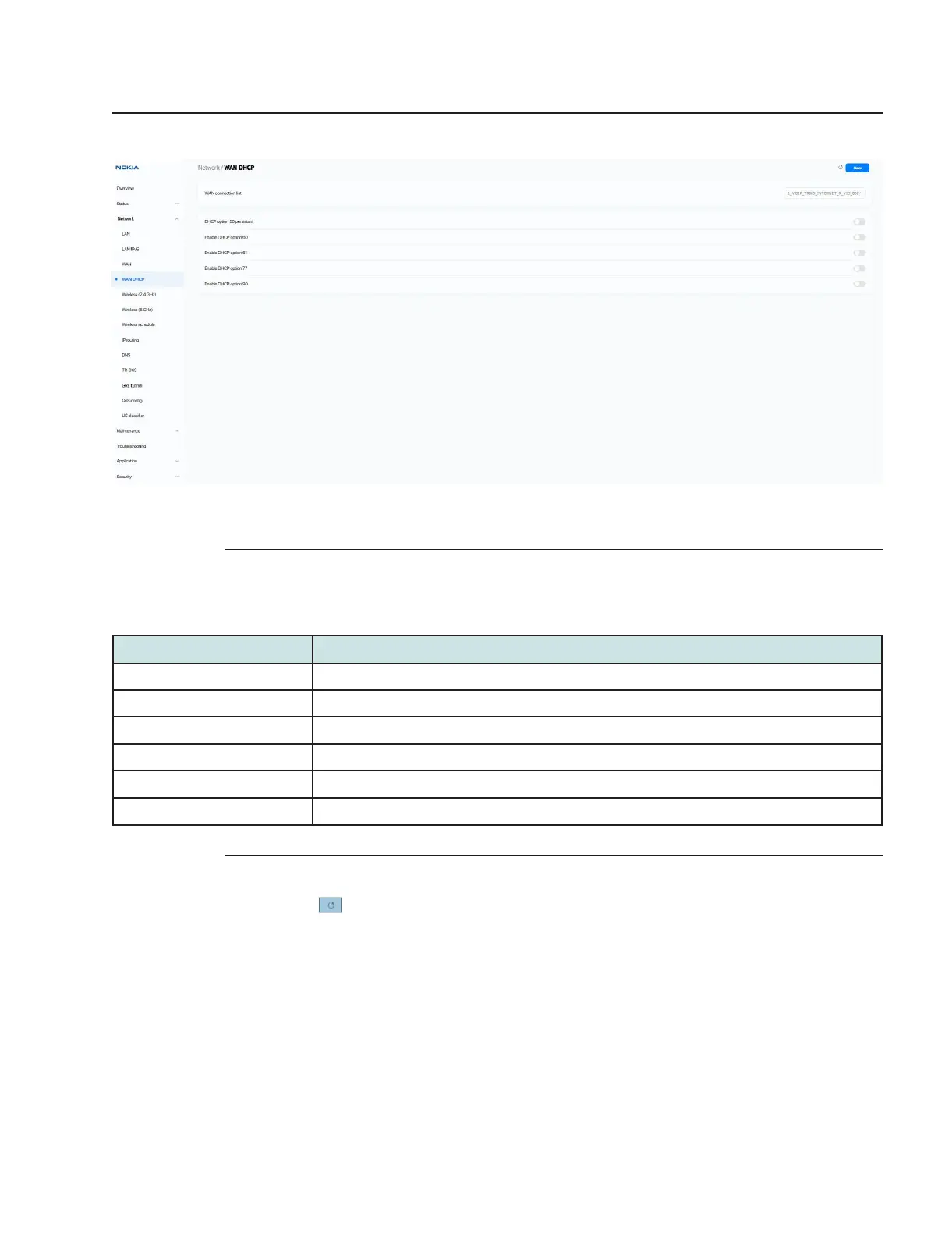

Figure 8-17 WAN DHCP page

Configure a XS-2426X-A indoor ONT

Network configuration

Configuring WAN DHCP
