Norcold 2118 - 2118 Rear Wiring Views

SERVICE MANUAL
31
www.norcold.com
2118 Rear Wiring Views
G
K
H
P
N
O

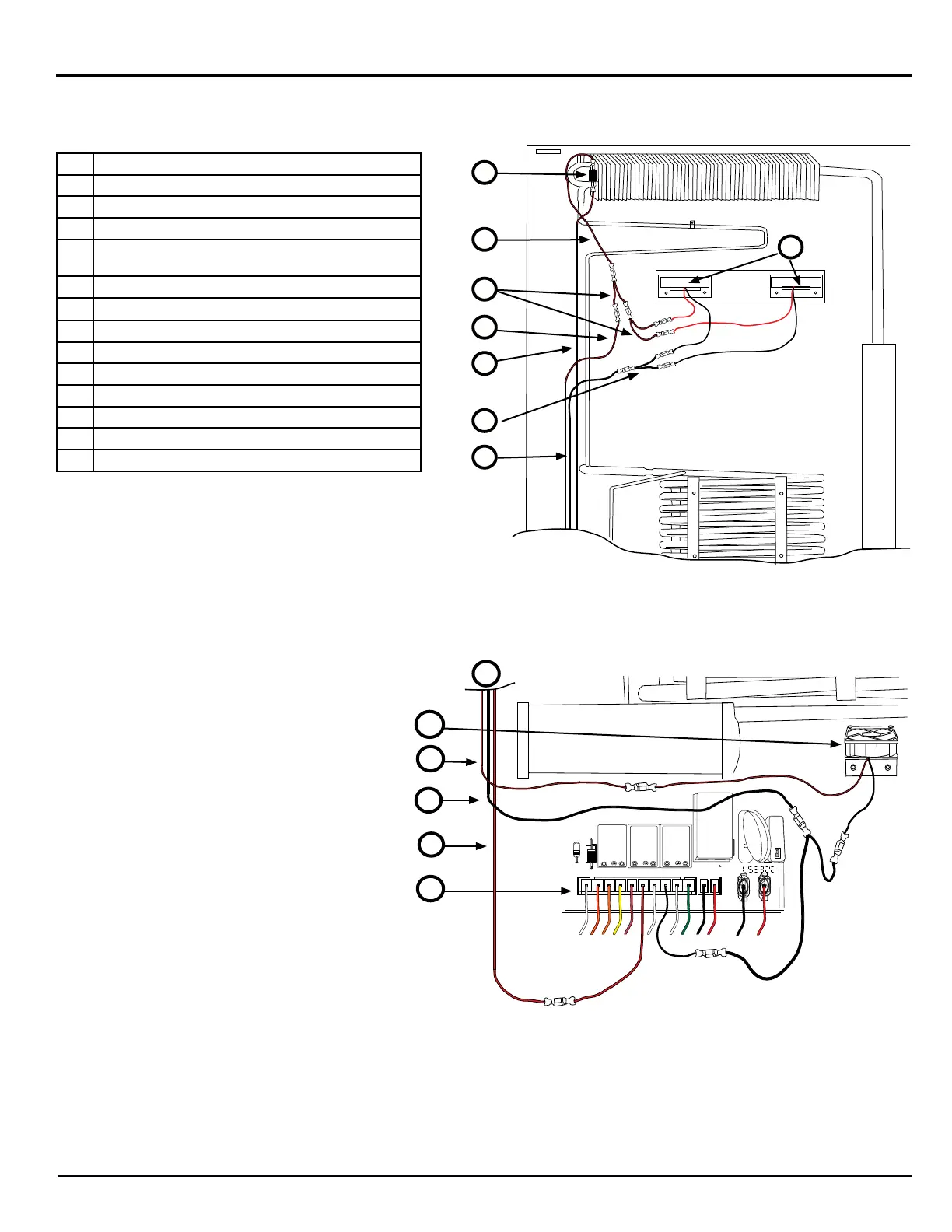

A Black wire - Ice maker to power cord hot (smooth).
B Brown wire - Ice maker to water valve (red coil).
C White wire - Ice maker to power cord neutral (ribbed).
D Green wire - Ice maker to chassis ground (back panel).
E Red wire - Top of fan thermostat to red “Y” (12 VDC out when ther-
mostat is closed).
F Red “Y” wires - 12 VDC from thermostat to fans.
G Red wire - 12VDC from red “Y” to absorber fan.
H Red wire - 12 VDC to fan thermostat.
J Black “Y” - 12 VDC common to fans.
K Black wire - 12 VDC common to fans.
L Thermostat
M Fan
O From top of refrigerator.
P Power board
NOR000216A
E
J
F
K
G
L
H
M
Fig. 20 - 2118 upper rear wiring
Fig. 21 - 2118 lower rear wiring
