Norcold 2118 - Exploded Front View

6
www.norcold.com
2118, 2118IM, 2118IMD Series

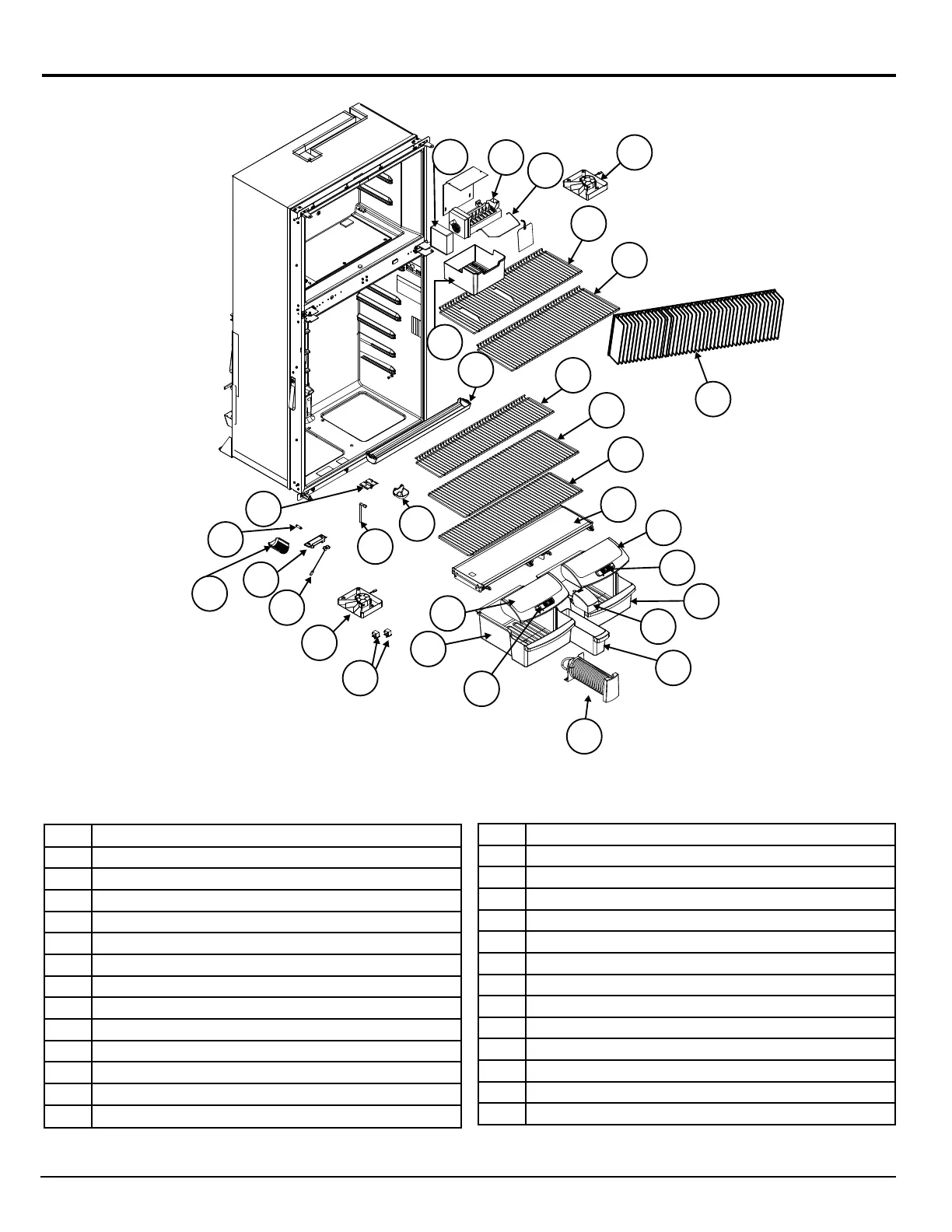

Fig. 4 - Exploded front view
Exploded View
No.
Description
1 Crisper
2 Crisper Lid
3 Crisper Lid Vent
4 Beverage Bin
5 Beverage Bin Cover
6 Crisper Cover Assembly
7 Middle Wire Shelf
8 Top Wire Shelf
9 Full wire Shelf
10 Fin Assembly
11 Blower Assembly
12 Guide Block
13 Thermistor
NOR000450B
2
4
5
3
6
7
1
9
8
2
3
1
12
16
13
10
15
17
11
14
18
19
20
24
21
22
23
25
26
27
11
14 Freezer Wire Shelf With Hump
15 Freezer Wire Shelf
16 Ice Maker Shutoff Arm
17 Ice Maker
18 Ice Maker Cover
19 Crisper Bin
20 Light Switch
21 Lamp Bracket Assembly
22 Light Bulb
23 Light Cover
24 Drip Hose
25 Drip Cup
26 Dispenser Reel Assembly
27 Drip Tray
