2118, 2118IM, 2118IMD Series
Diagnostic Mode, cont’d.

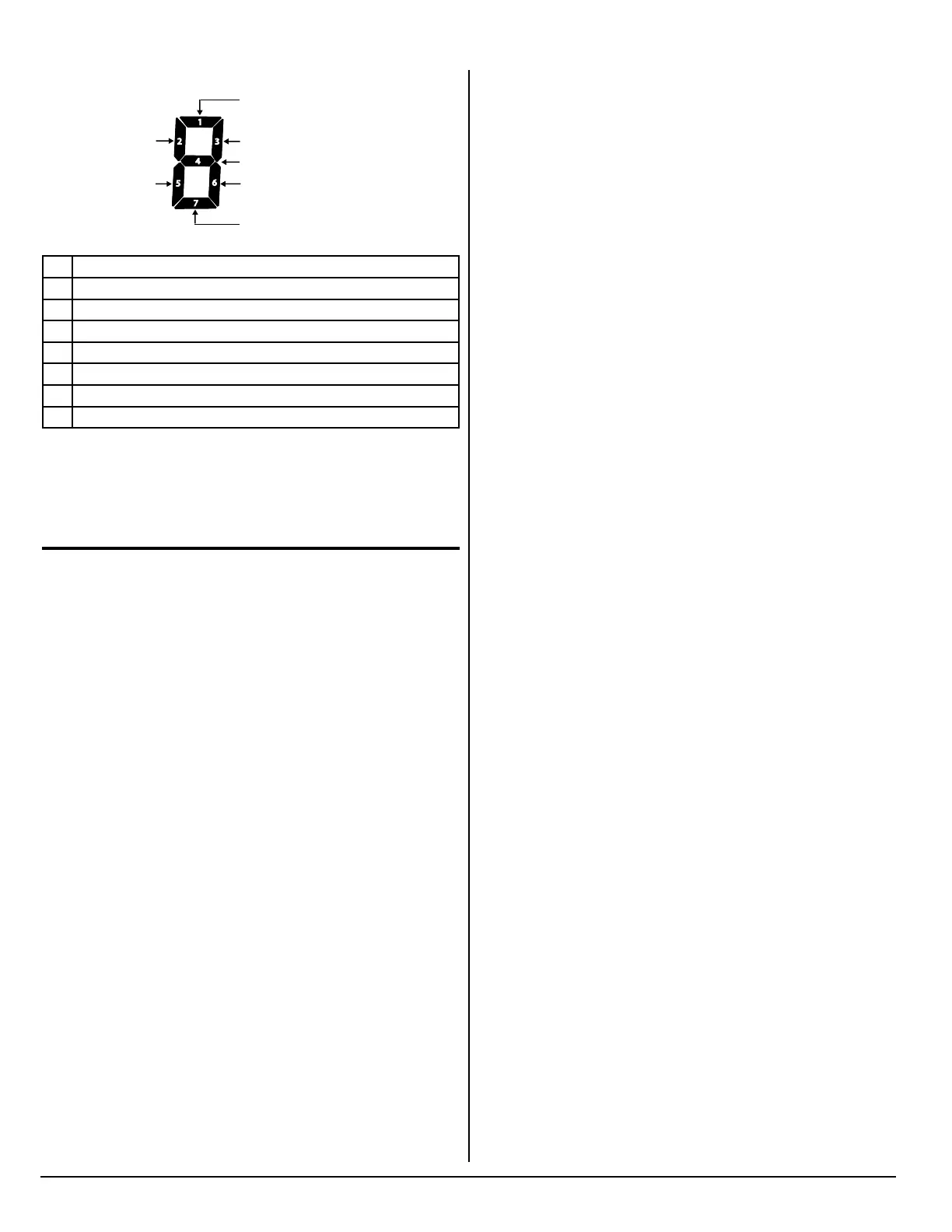

Individual Segment Identification
1 AC voltage higher than 132 volts.
2 Not used.
3 Not used.
4 AC voltage normal.
5 Not used.
6 Not used.
7 AC voltage lower than 85 volts.
If AC voltage at the power board is within normal range (108 to
132 VAC), LED segment 4 will be on.
Diagnostic Screen 9 (Initial View) Diagnostic Screen 9 (Second View)
1
2
3
5
6
7
4
Not used
Not used
AC voltage higher than 132 volts
Not used
AC voltage normal
Not used
AC voltage lower than 85 volts
NOR000125A-0
Ice Maker
For information about ice maker operation and troubleshooting,
please refer to the separate Ice Maker Service document.
