Nordson Asymtek X-1010 User Manual

Training Guide Course No. 196514
Level 2 Maintenance, X-1000 Series Dispensing Systems 4-123 P/N 196515 (Revision A)
A
Does the reading
remain 0.00 if weight is
added or removed?
Exit FmNT, shut down Windows
NT, press black OFF (0) button
on the Operator’s Console,
switch Main Circuit Breaker to
OFF (0), and disconnect Power
Cable from the facility outlet.
Add or remove weight while
observing the Current Reading
on the Scale Setup, Scale
Operations tab.
Return to the FmNT Main
Window, click on Tools, click on
Terminal, and click on the Scale
button.
No
Type [P] then press [Enter] and
observe the digital readout.
Does the Scale return
a numeric value?
Replace scale cup, Type [P],
press [Enter] and observe the
digital readout.
Check the Scale Interconnect
Cable (P/N 194160) for continuity
(Pinout is 1 to 1).
Is there continuity?
Scale (P/N 62-1614-00)
has failed.
Scale Interconnect Cable
(P/N 194160) has failed.
Did the value change?
Contact Asymtek
Technical Support
Scale (P/N 62-1614-00)
has failed.
Go to Scale
Communications
Verification.
Yes
No
NoYes
No
Yes
Yes
A
Does the reading
remain 0.00 if weight is
added or removed?
Does the reading
remain 0.00 if weight is
added or removed?
Exit FmNT, shut down Windows
NT, press black OFF (0) button
on the Operator’s Console,
switch Main Circuit Breaker to
OFF (0), and disconnect Power
Cable from the facility outlet.
Add or remove weight while
observing the Current Reading
on the Scale Setup, Scale
Operations tab.
Return to the FmNT Main
Window, click on Tools, click on
Terminal, and click on the Scale
button.
No
Type [P] then press [Enter] and
observe the digital readout.
Does the Scale return
a numeric value?
Does the Scale return
a numeric value?
Replace scale cup, Type [P],
press [Enter] and observe the
digital readout.
Check the Scale Interconnect
Cable (P/N 194160) for continuity
(Pinout is 1 to 1).
Is there continuity?Is there continuity?
Scale (P/N 62-1614-00)
has failed.
Scale Interconnect Cable
(P/N 194160) has failed.
Did the value change?Did the value change?
Contact Asymtek
Technical Support
Scale (P/N 62-1614-00)
has failed.
Go to Scale
Communications
Verification.
Yes
No
NoYes
No
Yes
Yes
Diagram Sheet 4-9-3

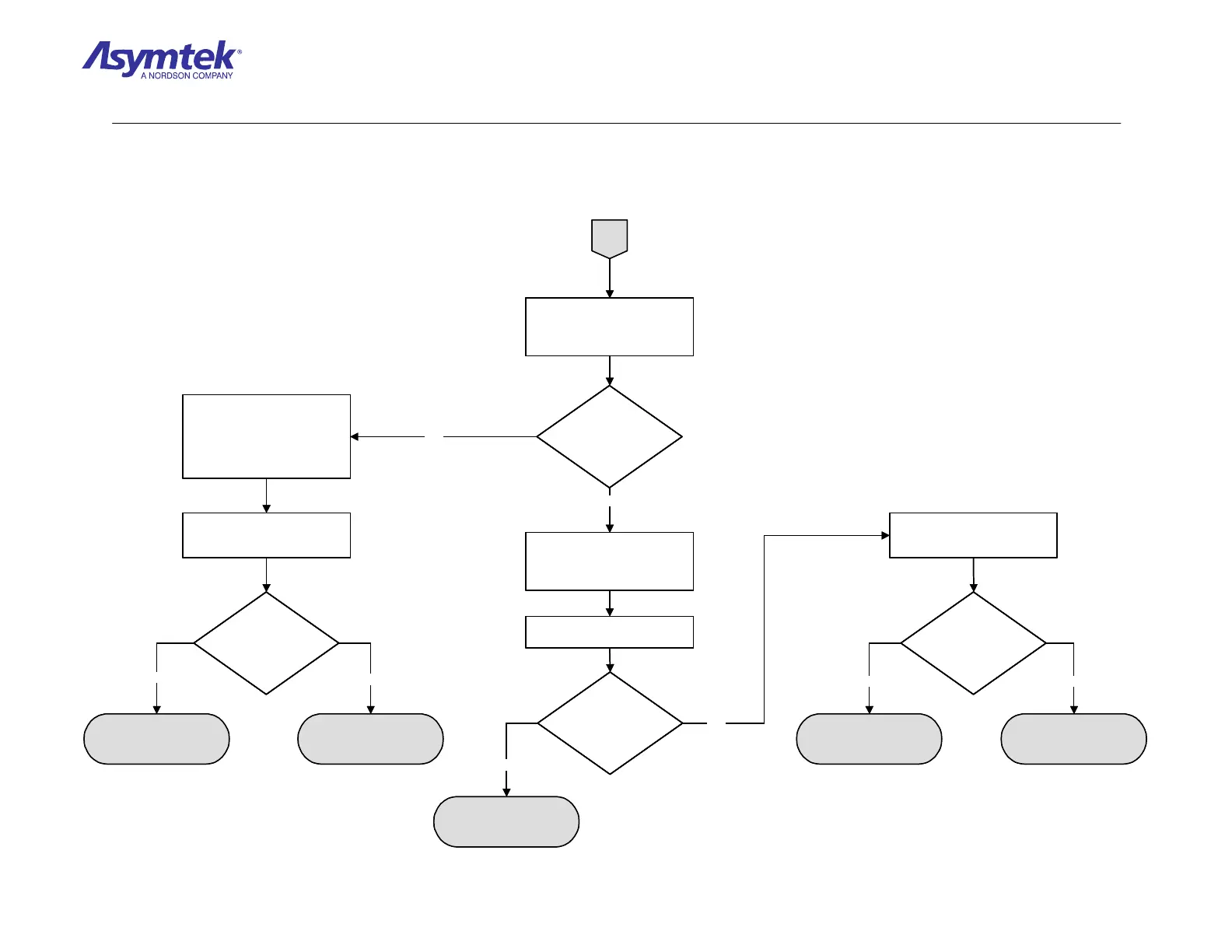

Scale Fault Isolation Procedure – Scale Operational Verification (Continued)
