System Setup
3-1
Part 1602221-01
E 2012 Nordson Corporation
Section 3
System Setup
WARNING: Allow only qualified personnel to perform the following tasks.
Follow the safety instructions in this document and all other related
documentation.
Controller Rail Mounting
See Figure 3-1. Rail mount systems are shipped with a bracket kit, small
parts tray kit, and bus-bar grounding kit.
1. Install the controller bracket (1) on the bottom of the controller with four
M5 x 12 black pan head screws (2) and one #10 dished lock washer (9).
2. Install the controller bracket (1) on the rail bracket (5) with two M8 split
lock washers (7) and two M8 x 70 hex head cap screws (8).
3. Thread the two M8 jam nuts (4) onto the two M8 x 40 screws (3), then
thread the two screws into the holes in the rail bracket.
1
2
4
5
6
8
7
3
2
10
9
9

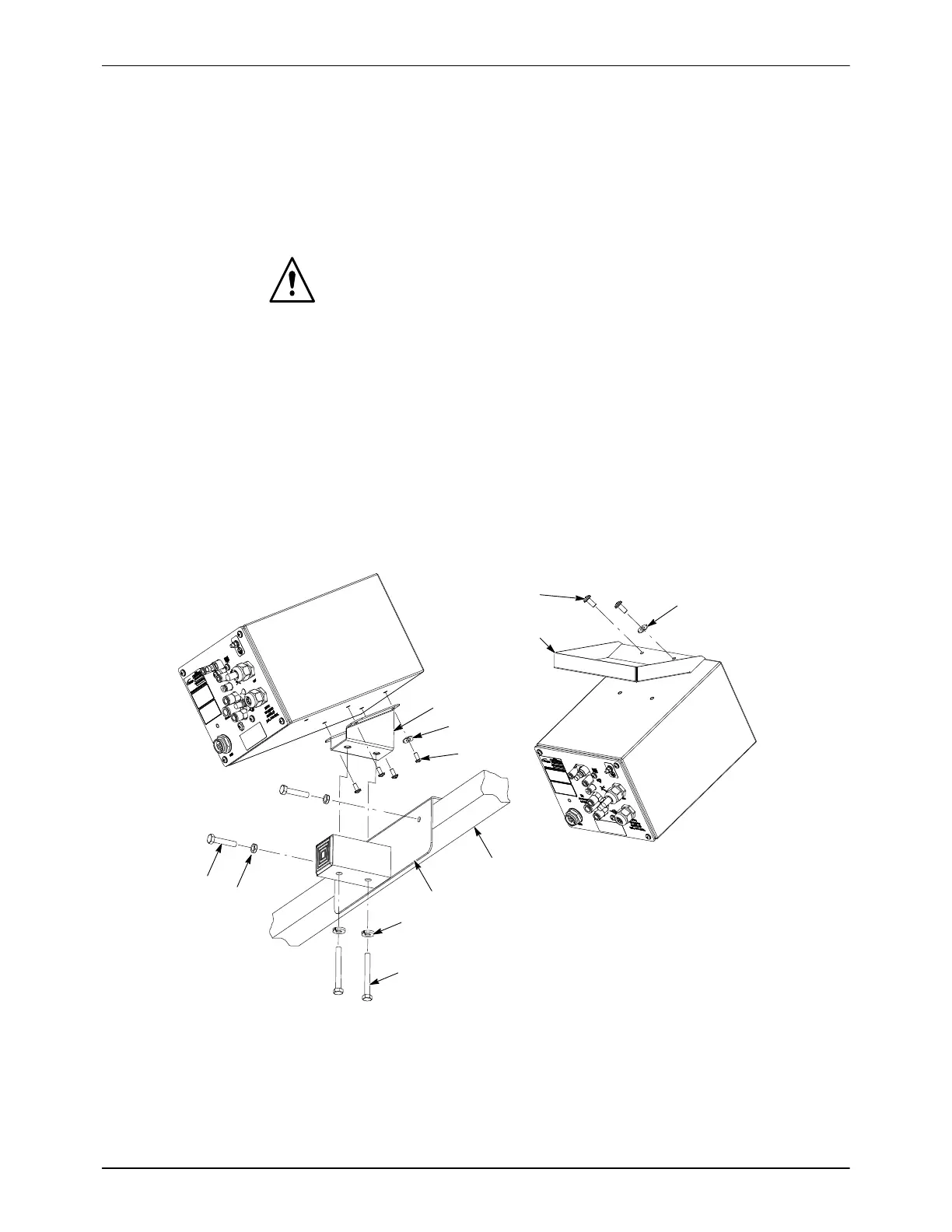

Figure 3-1 Rail Mount Kit and Parts Tray Installation
1. Controller bracket
2. M5 x 12 screws
3. M8 x 40 screws
4. M8 jam nuts
5. Rail bracket
6. Rail
7. M8 lock washers
8. M8 x 70 screws
9. #10 dished lock washer
10. Parts tray
