Nordson Encore - Gun Cable Continuity Test

Troubleshooting
5-6
Part 1602221-01
E 2012 Nordson Corporation
Gun Cable Continuity Test
Test for continuity as follows:
S J1−1 and J3−2
S J1−2 and J2−2, J3−5
S J1−3 and J2−1
S J1−4 and J3−4
S J1−5 and J2−3
S J1−6 and J3−3, ground terminal
PURGE
TRIGGER
COMMON
OSC
OSC
TRIGGER
COMMON
+12V COM
J1−1
J1−2
J1−3
J1−4
J1−5
J1−6
FEEDBACK
GND
BRAIDED SHIELD
GRN
WHT
CABLE GND
GRN
BLK
RED
J2−2
J2−1
RED
BLK
ORG
BLU
WHT
J3−1
J3−5
YEL
J3−2
PURGE
ORG
J2−3
FEEDBACKYEL
BLU
J1−1
(ORANGE)
J1−3
(RED)
J1−6
(GREEN)
J1−5
(YELLOW)
J1−4
(WHITE)
J1 (FACE VIEW)
J1−2
(BLACK
AND BLUE)
J1
CONTROLLER END
(FACE VIEW)
J3
J3 (FACE VIEW)
J3−1
J3−2
J3−3
J2 (FACE VIEW)
POWER SUPPLY CONNECTOR
J2−3
(YELLOW)
J2−1
(RED)
J2−2
(BLACK)
J2
TO POWER SUPPLY
TO GUN GROUND STUD
GRN
J3−4
J3−3
TO TRIGGER SWITCH
(N/C)
(ORANGE)
(GREEN)
J3−5
(BLUE)
J3−4
(WHITE)
N/C
GND

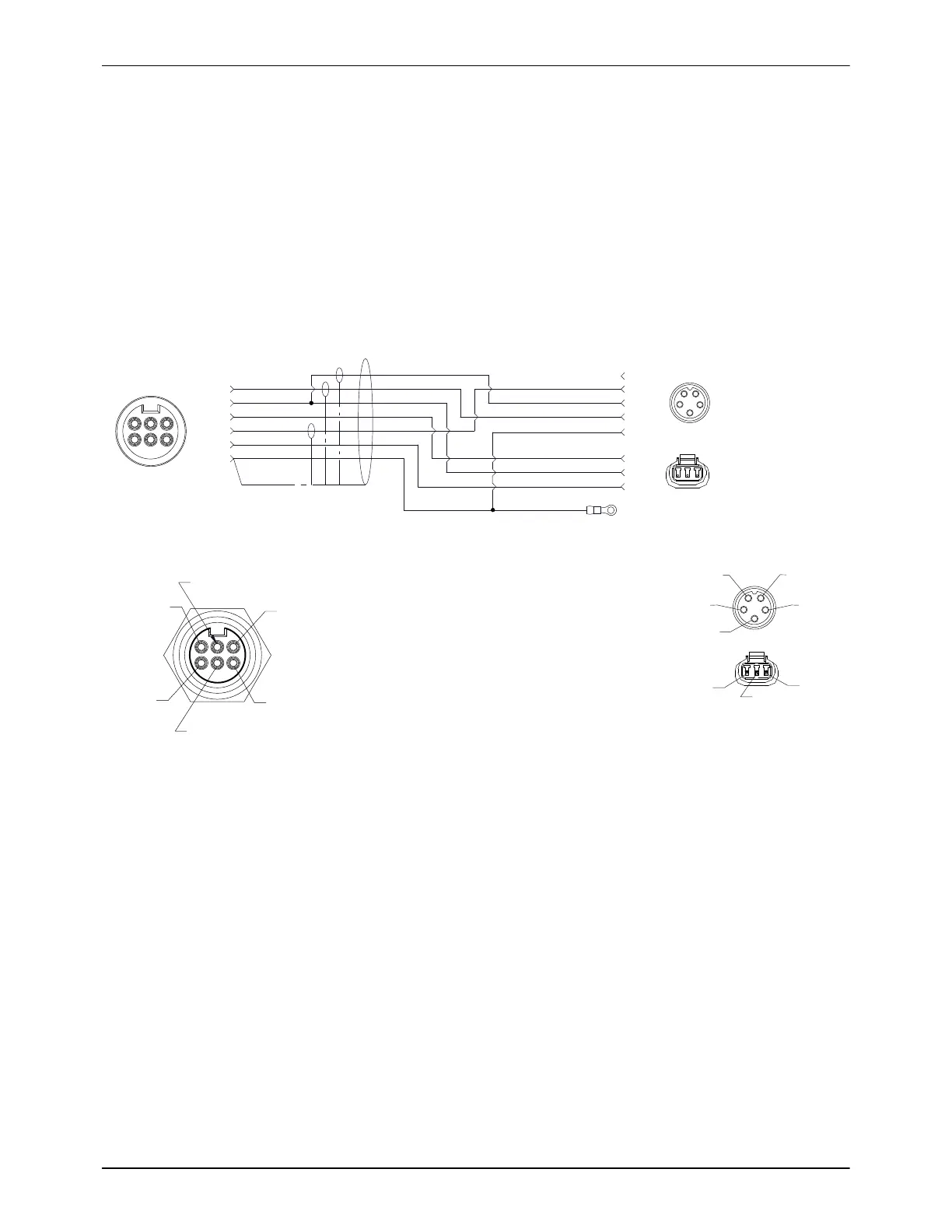

Figure 5-10 Gun Cable Wiring
