Operation
4-6
Part 1602221-01
E 2012 Nordson Corporation
Classic Flow Mode Settings (contd)
At 7 bar (100 psi) supply pressure:
Flow
Setting %
Atomizing
Setting %
Flow Air Pressure
bar (psi)
Atomizing Air Pressure
bar (psi)
25 25 1.7 (25) 1.7 (25)
40 10 2.7 (40) 0.689 (10)
In other words,
If Flow air = 25%, Atomizing air = 25%, then
Flow air = 1.7 bar (25 psi), Atomizing air = 1.7 bar (25 psi).
If Flow air = 40%, Atomizing = 10%, then
Flow air = 2.7 bar (40 psi), Atomizing air = 0.689 bar (10 psi).
Refer to your pump manual for typical operating values for Flow and
Atomizing air.
Spray Gun Operation
To spray powder, pull the spray trigger.
To purge the spray gun, release the spray trigger and press down on the
purge trigger. P is displayed on the flow display.
Purge
Trigger
Spray
Trigger

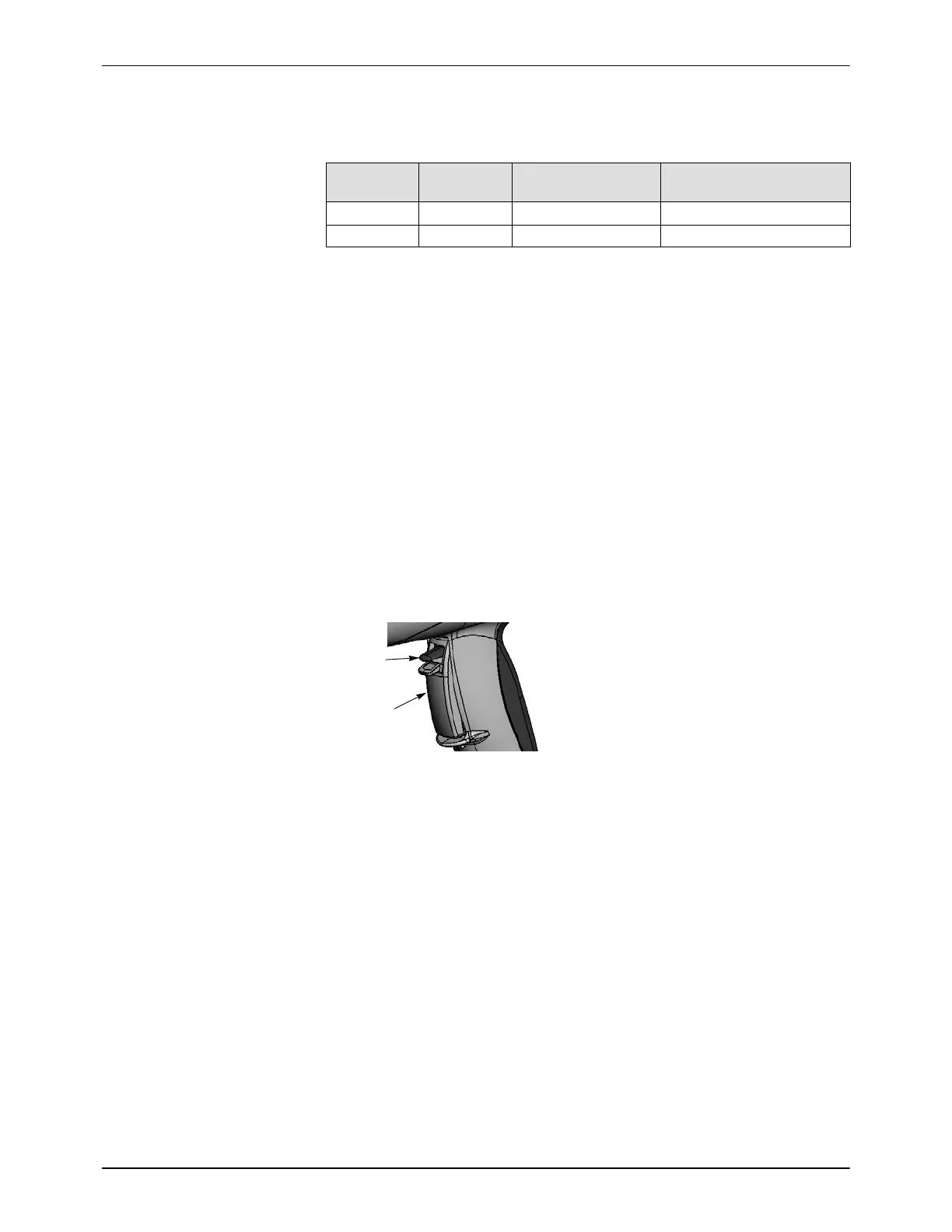

Figure 4-5 Gun Controls
Electrode Air Wash Operation
Electrode air wash air continually washes the spray gun electrode to
prevent powder from collecting on it. Electrode air wash air is turned on and
off automatically when the spray gun is triggered on and off.
