Repair
6-12
Part 1602221-01
E 2012 Nordson Corporation
Rear Panel Components

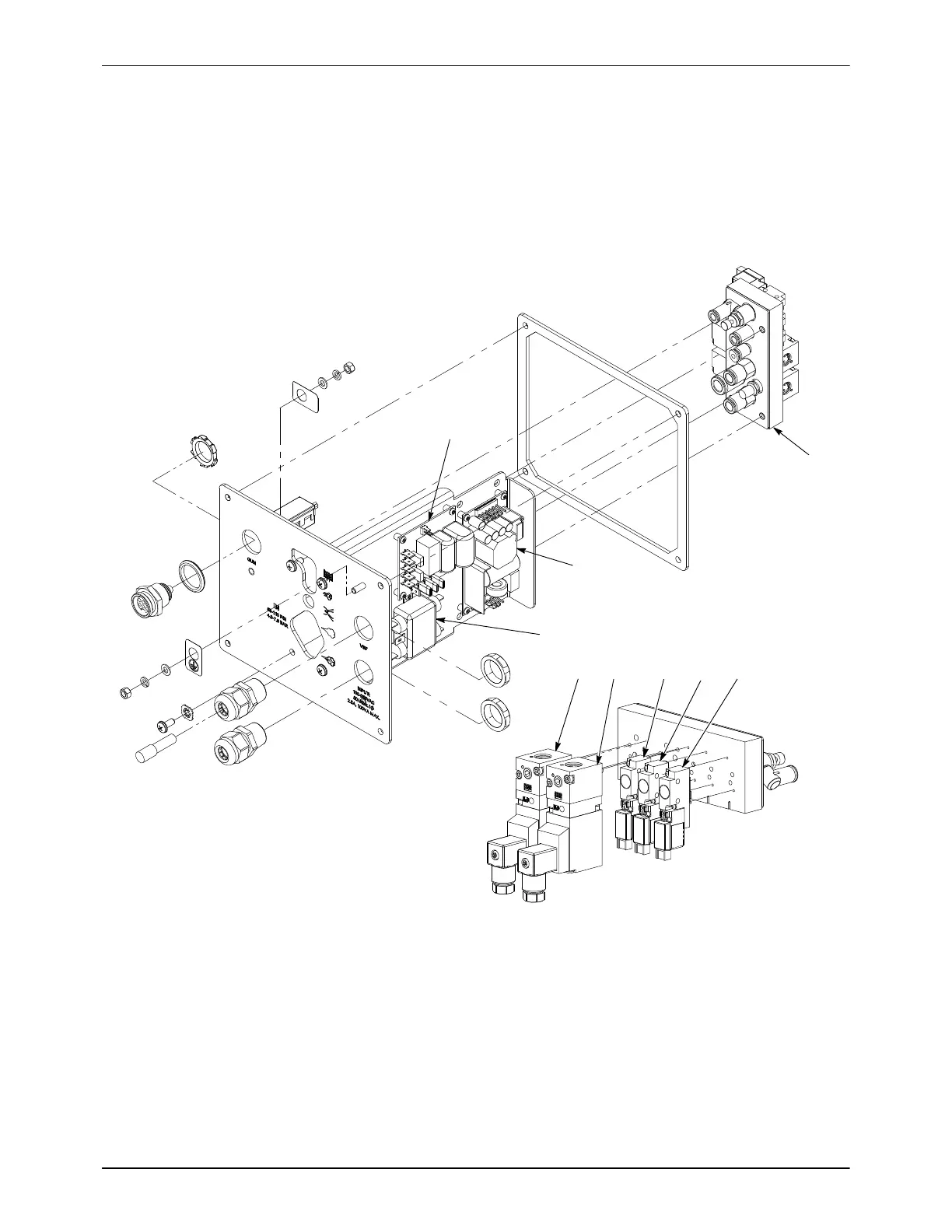

Figure 6-13 is an exploded view of the components of the rear panel. Refer
to the following when making repairs:
S Section 7, Parts for parts and service kits.
S Section 5, Troubleshooting, for wiring diagrams and circuit board
connections.
3
2
4
1
5
6
789
Figure 6-13 Sub Panel Parts Replacement
1. Manifold assembly
2. Relay board
3. Power supply
4. Line filter
5. Fluidizing air solenoid valve
6. Purge air solenoid valve
7. Air wash air solenoid valve
8. Flow-rate air regulator
9. Atomizing air regulator
