System Setup
3-5
Part 1602221-01
E 2012 Nordson Corporation
Bundling Tubing and Cable
Use sections of black spiral-cut tubing to bundle together the spray gun
cable, air tubing, and powder hose.
Controller Connections
The rear panel of the controller provides connections for power, ground,
gun, pump, and powder supply fluidizing air.
NOTE: The fluidizing air output is used only on single gun systems with
50-lb hoppers supplying manual guns.
11
L1
L2
GND
(BROWN)
(BLUE)
(GRN/YEL)
1
3
5
12
7
8
9
10
6
4

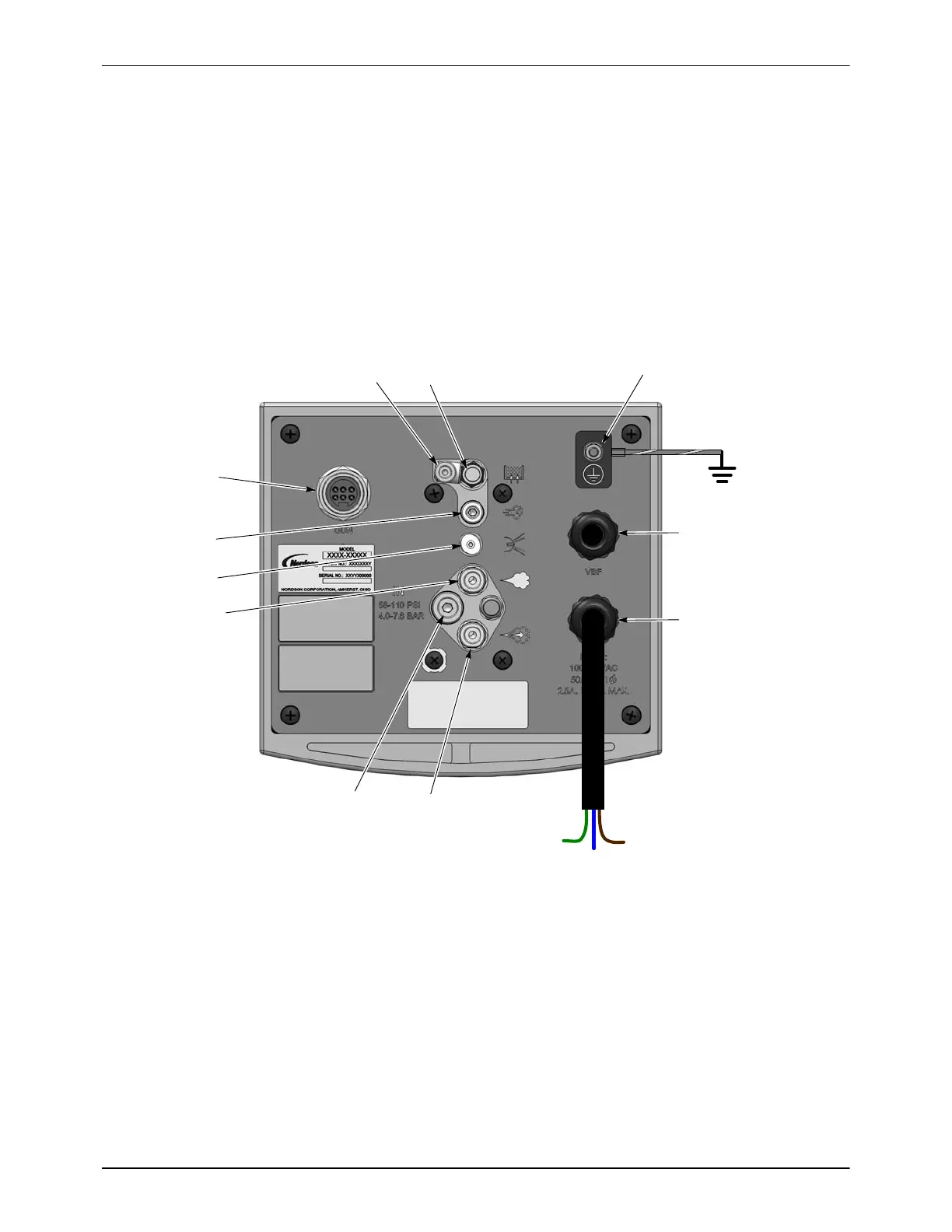

Figure 3-5 Encore LT Gun Controller Connections
1. Electrostatic ground (to cart or booth)
2. Not used
3. Power cord (15ft)
4. VBF cord grip
5. Air supply (blue, 10mm)
6. Electrode air wash (clear, 4mm,
gun)
7. Gun cable
8. Purge air (black, 6mm, gun)
9. Fluidizing air (blue, 6mm)
10. Fluidizing air needle valve
11. Atomizing air (blue, 8mm,
pump)
12. Flow air (black, 8mm, pump)
Note: The VBF cord grip is used on mobile systems with vibratory box feeders only.
