Parts
7-10
Part 1602221-01
E 2012 Nordson Corporation
Manifold Parts
27
28
27
29
30
31
32
33
34
35

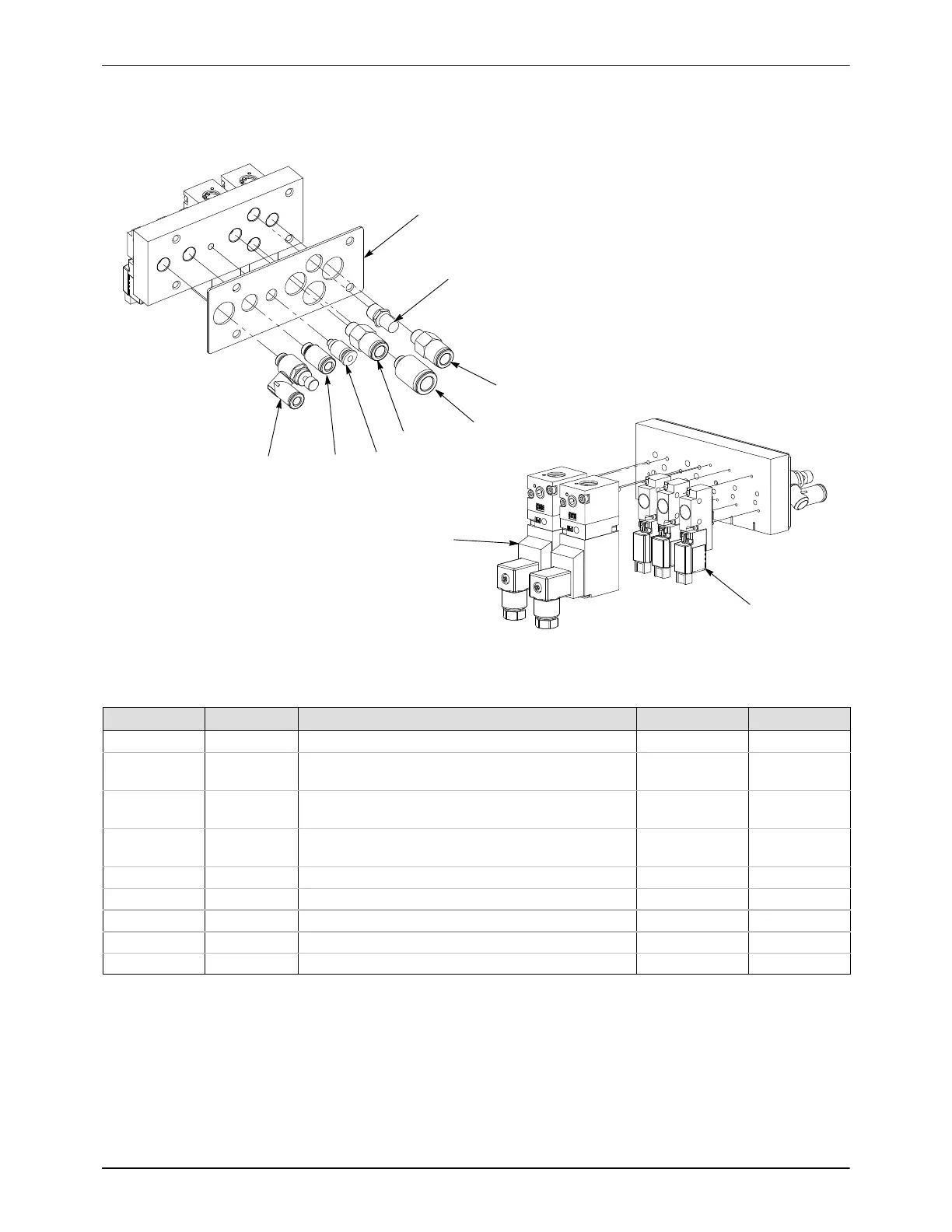

Figure 7-5 Manifold Parts
Item Part Description Quantity Note
27 1030873
S VALVE, check, M8 x R1/8, M input
2
28 1107596
S CONNECTOR, male, with internal hex, 10 mm
tube x 1/8 unithread
1
29 1062009
S CONNECTOR, male, with internal hex, oval
collar, 4 mm tube x M5
1
30 972399
S CONNECTOR, male, with internal hex, 6 mm
tube x 1/8 unithread
1
31 1107595
S VALVE, flow control, 6 mm x 1/8 unithread
1
32 1108313
S MUFFLER, exhaust, R1/8
1
33 1107593
S GASKET, manifold, controller, Encore LT
1
34 1107597
S REGULATOR, electro-pneumatic
2
35 1099281
S VALVE, solenoid, 3 port, 24V, 0.35W
3
