Repair
6-7
Part 1602221-01
E 2012 Nordson Corporation
27
31B
39
32
25
27
Trigger
Power Supply
Ground
VIEW A
VIEW B
VIEW C
26

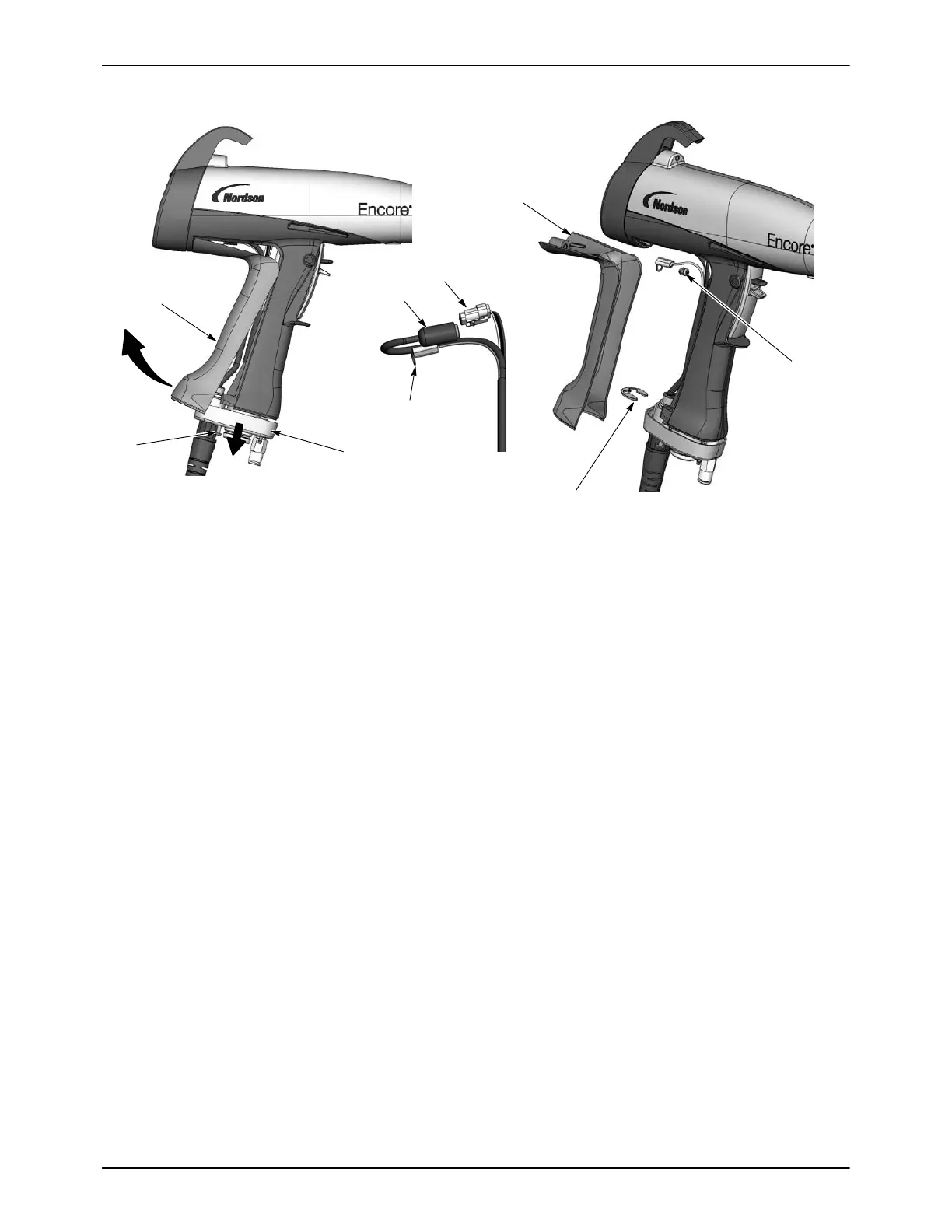

Figure 6-6 Cable Replacement
25. M3 x 6 screw
26. M3 lock washer
27. Ground pad
31B. M3 x 20 screws
32. E-ring
39. Handle base
Cable Installation
1. See Figure 6-6. Feed a new cable through the handle base, then install
the E-ring (32) on the cable to hold it in place.
2. Connect the cable to the trigger switch and power supply.
3. Connect the cable terminal to the ground pad (27) with the M3 x 6 screw
and lock washer (25, 26).
4. Tuck the cable connectors and ground wire into the gun, below the
multiplier.
5. Hook the top of the ground pad into the gun body, then rotate it into
position on the handle.
6. Push the handle base (39) up against the handle and ground pad, and
tighten securely the two M3 x 20 screws (31B) in the base.
7. See Figure 6-1. Install the bottom M3 x 20 screw (31B) in the housing
(29) and tighten it securely.
