System Setup
3-4
Part 1602221-01
E 2012 Nordson Corporation
Spray Gun Connections
Unpack the spray gun. Uncoil the cable, the 4-mm clear and 6-mm black air
tubing, and the 1/2 in. powder hose. Make the following connections:
Gun Cable
See Figures 3-5 and 3-4.
1. Connect the gun cable to the receptacle (7) on the rear panel of the gun
controller. The cable plug and receptacle are keyed.
2. Thread the cable nut onto the receptacle and tighten the nut securely.
Air Tubing and Powder Hose
See Figures 3-5 and 3-4.
1. Connect the 6-mm black air tubing to the quick-disconnect fitting in the
gun handle.
2. Connect the 4-mm clear electrode air wash tubing to the barbed fitting in
the gun handle.
3. Connect the powder hose to the hose adapter, then plug the hose
adapter into the handle.
4. Route the air tubing to the rear panel of the gun controller.
5. See Figure 3-5. Connect the 4-mm clear tubing to the electrode air
wash quick-disconnect fitting (6).
6. Connect the 6-mm black tubing to the purge air quick-disconnect
fitting (8).

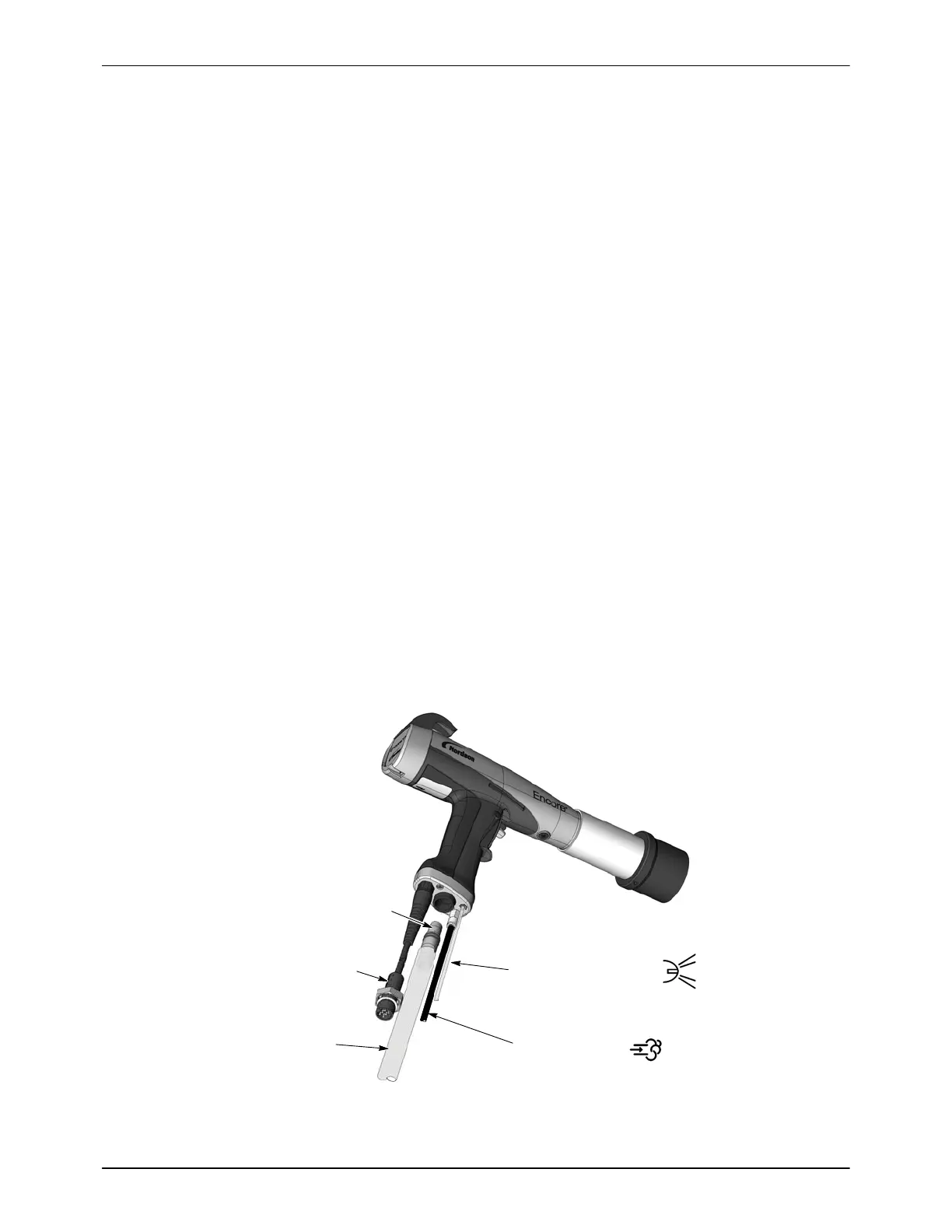

4-mm Clear Electrode
Air Wash Tubing
6-mm Black
Purge Air Tubing
Hose Adapter
1/2 in. Powder Hose
Gun Cable
Figure 3-4 Gun Connections
To Next Page
