Repair
6-10
Part 1602221-01
E 2012 Nordson Corporation
Switch Installation (contd)

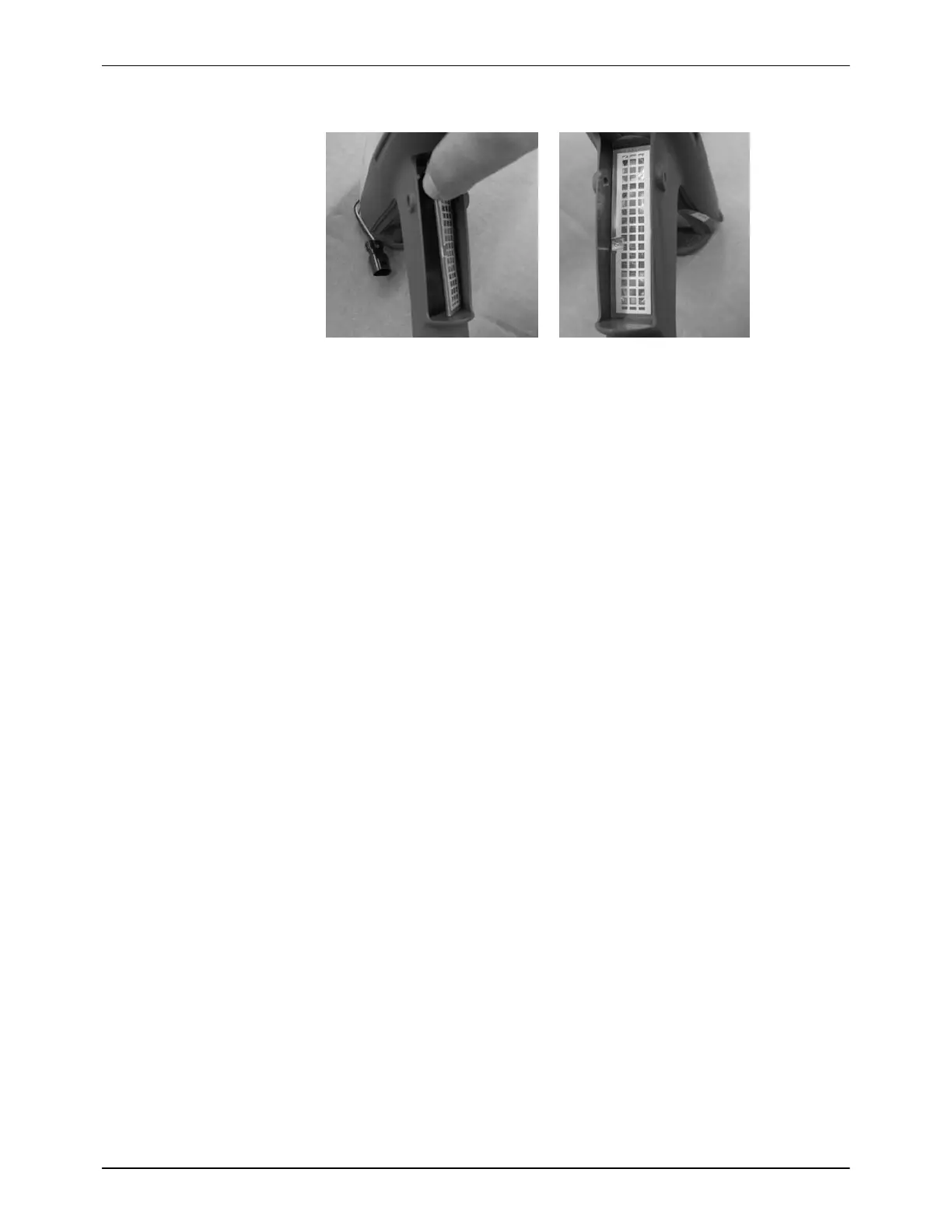

Figure 6-11 Installing the Trigger Switch − Step 4
7. See Figure 6-7. Install the purge trigger (43) into the spray trigger (42)
with the gusset oriented upward as shown. Do not install the purge
trigger upside down.
8. Position the triggers in the handle and hold them in place while pressing
the axle (34A) through the handle and triggers until the head of the axle
is flush with the handle. The axle will snap into place when properly
installed.
9. Connect the trigger switch connector to the round cable connector, then
tuck the connectors back up to the handle.
10. Re-install the ground cover as described in Cable Installation steps 5−7
on page 6-7.
