Nordson FP-200 - Mast and Jib Assemblies

Parts
8-18
Part 237478_03
E 2012 Nordson Corporation
Mast and Jib Assemblies
Item Part Description Quantity
- 157 330
Kit, SUSP, FP200, 3FT, swing arm -
1 1098523
Tool balancer, 6.6# capacity 1
- 725 471
Kit, SUSP, FP200, 6FT, swing arm -
1 1098747
Tool balancer, 11# capacity 1
NOTE A: Assemble tool support to floor stand with screws and nuts provided.
B: Make sure to slide the plastic cover over base flange assembly.

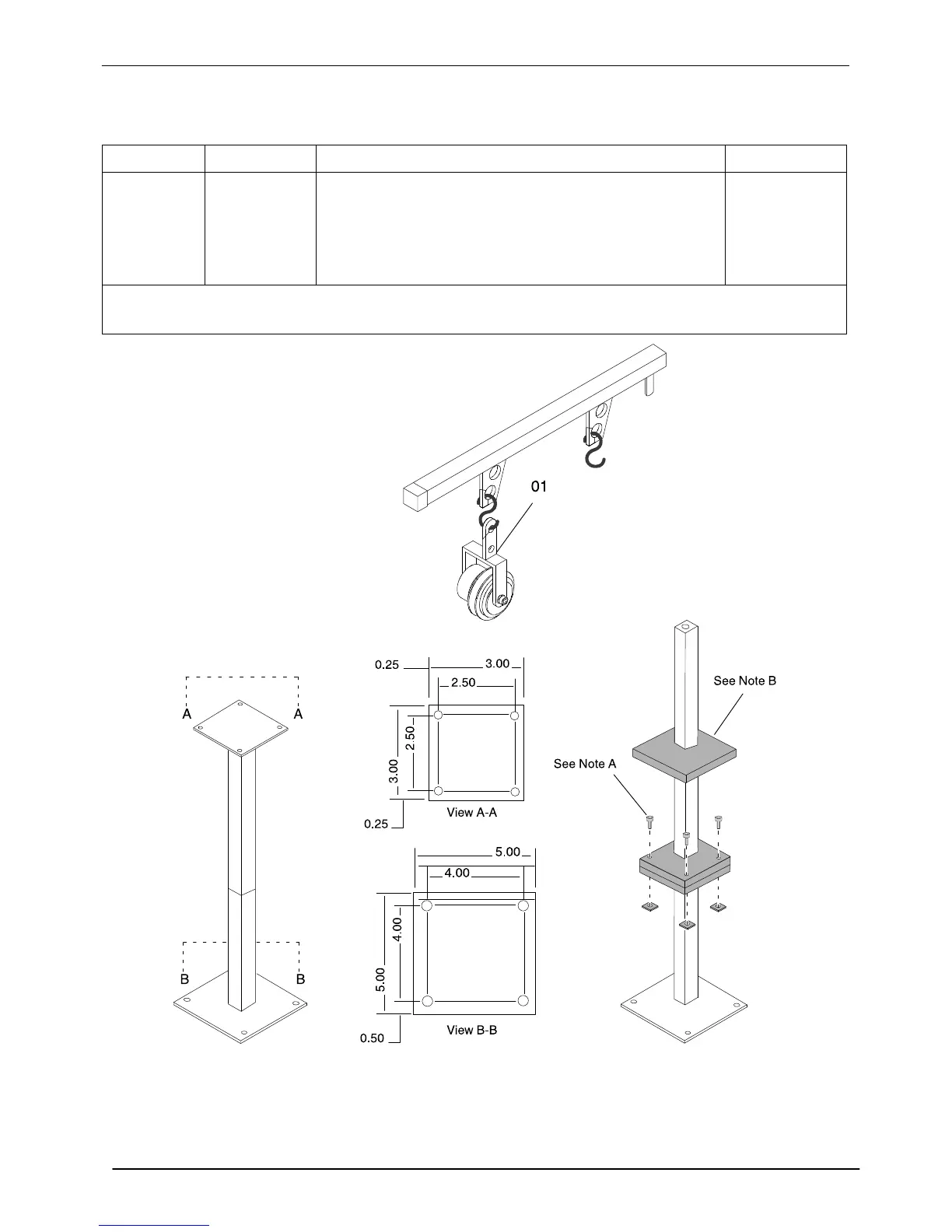

Figure 8-8 Suspension System Swing Arm,Floor Mount Mast with Dimensions
