Nordson FP-200 User Manual

Repair
7-8
Part 237478_03
E 2012 Nordson Corporation
Replacing the Module
Use this procedure only to replace FP‐200 gun modules. To rebuild the
modules, follow the instructions provided with the module rebuilding kits
(refer to Section8, Parts).
1. Relieve hydraulic pressure (refer to the Relieving Hydraulic Pressure
procedure in Section3, Installation).
2. Move the applicator circuit breaker to the OFF position, then disconnect
and lock out input electrical power to the applicator (seeFigures7‐1 and
7‐2).
CAUTION: Risk of burns. Wear protective gloves when performing this
procedure to reduce the risk of burns from hot melt or equipment.
CAUTION: Take care not to drop swirl nozzles when removing the retaining
nut. Damage from dropping can cause the nozzle to produce an abnormal
pattern.
3. Loosen the retaining nut with a wrench, then remove the nozzle and
retaining nut with a gloved hand.

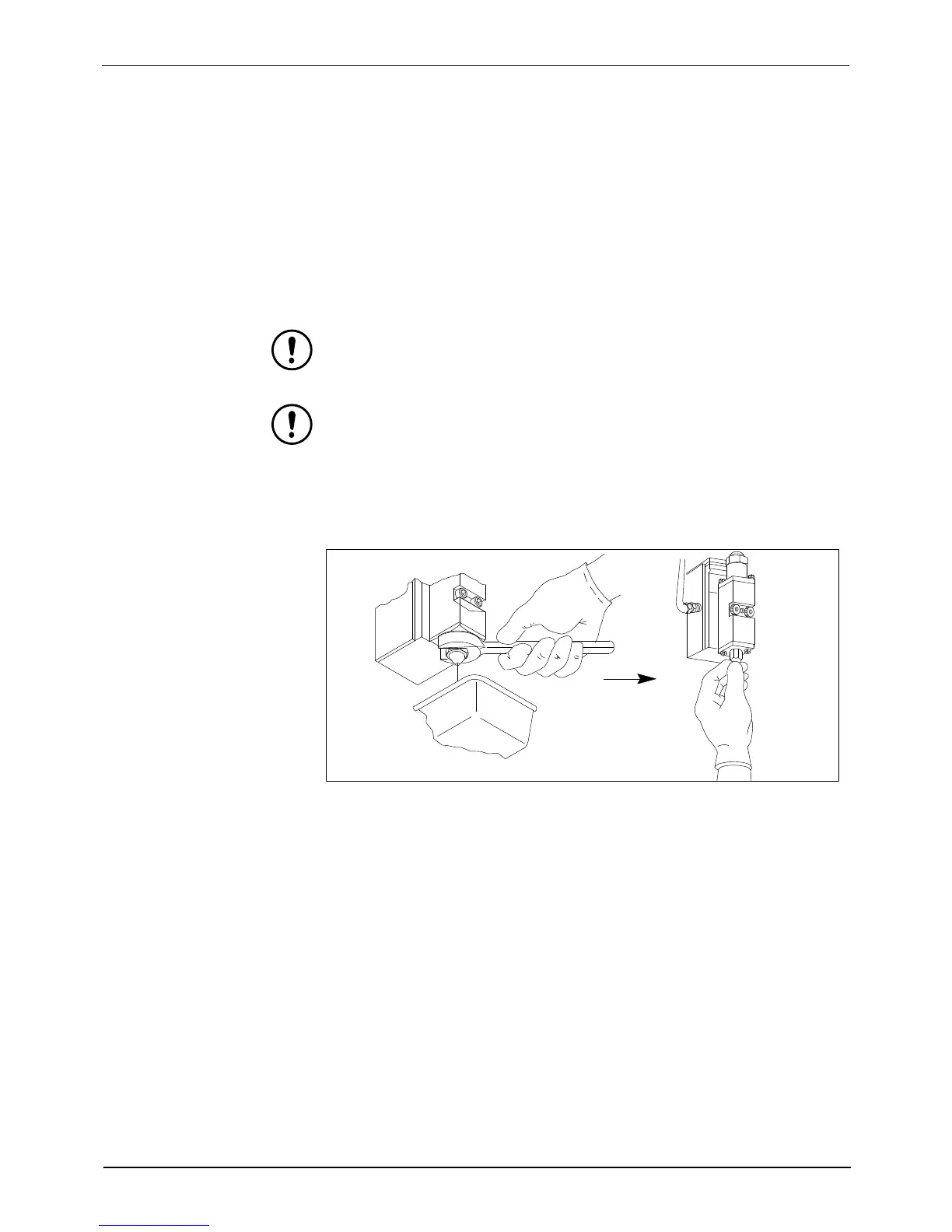

Figure 7‐8 Removing Nozzle
